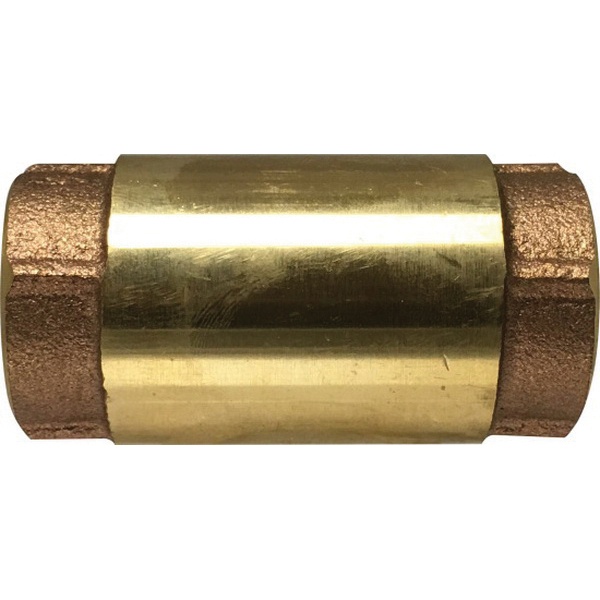

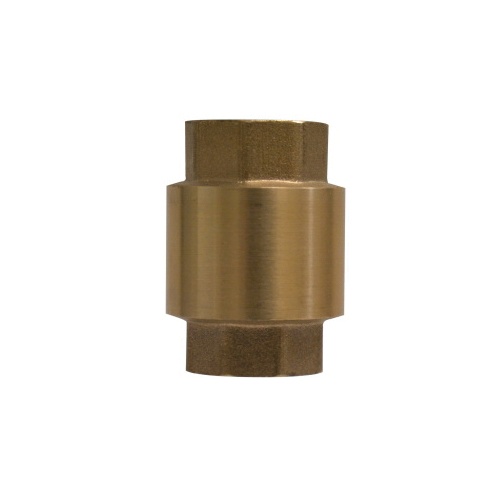

HCI Preferred Supplier 944435 Lift In-Line Check Valve, 2 in Nominal, NPT End Style, Forged Brass Body
HCI Preferred Supplier 944435 Lift In-Line Check Valve, 2 in Nominal, NPT End Style, Forged Brass Body
-
BrandGeneric
-
Manufacturer Part Number944435
-
CountryUSA
-
Temperature Rating14 to 248 deg F
-
Pressure Rating200 psi WOG/125 psi WSP
-
MediaWater, Oil, Gas and Saturated Steam
-
Trim MaterialAISI 304 Stainless Steel
-
TypeLift
-
Nominal Size2 in
-
Dimensions3.091 in H x 3.071 in W
-
Domestic/ImportImport
-
Body MaterialForged Brass
-
End StyleNPT
- Resilient discs, spring actuated
- Resilient washer hold/disc in brass
- Corrosion-resistant material
- Opens and closes with flow of media
- Can be used vertically or horizontally
- No cracking pressure
- Insures against leakage
- Stainless steel spring loaded bronze poppet
- No lead free
- For positive sealing and self-cleaning
- 3-1/2 in enters pipe size
-
UNSPSC40141659
-
Package Description5/BX
-
