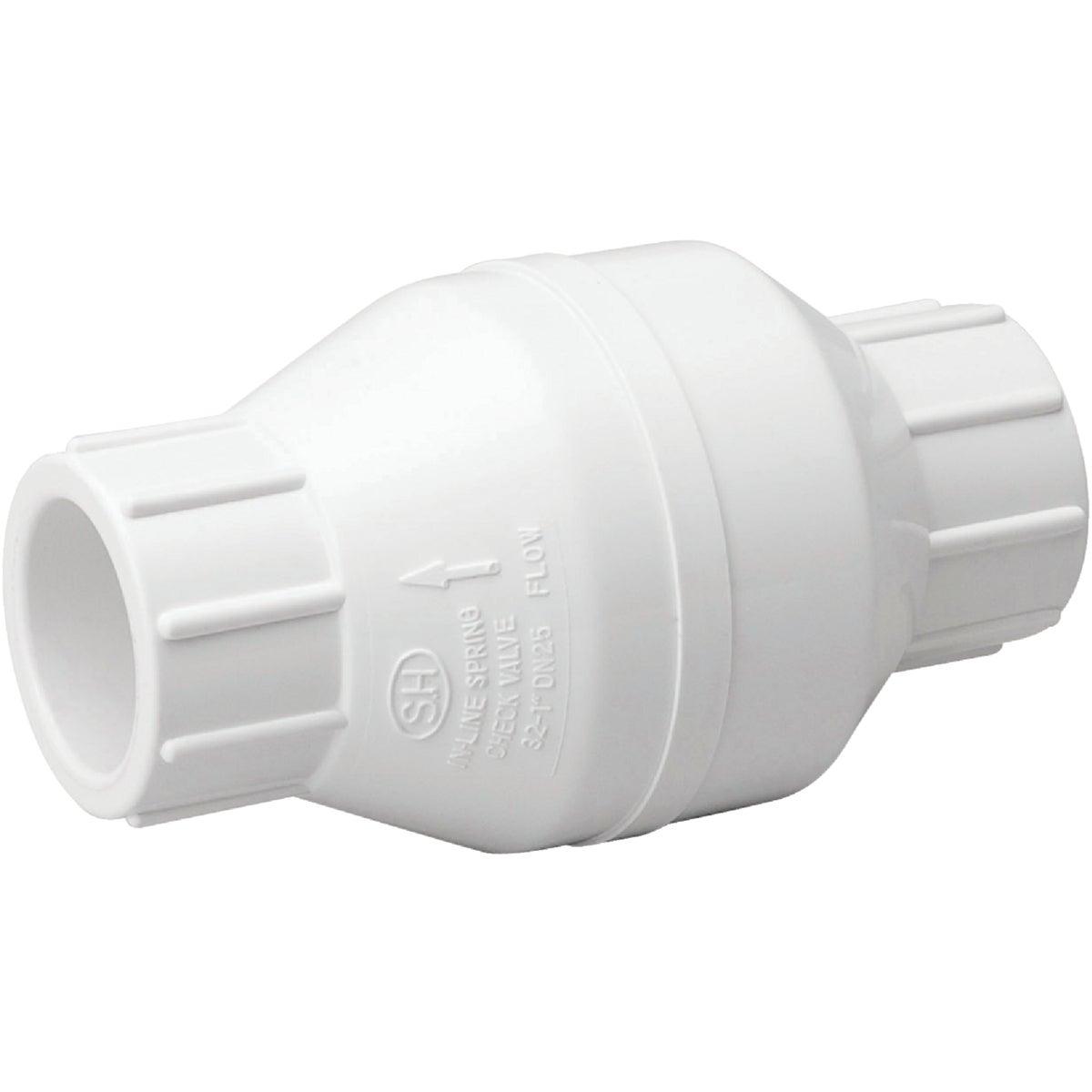

B&K® 101-105 ProLine™ In-Line Check Valve, 1 in Nominal, FNPT End Style, PVC Body
The B&K® Valves are precisely engineered for outstanding service, long life and reliable performance. These valves offer easy operation, superior flow and include a wide range of water/oil/gas (WOG) valves, gas valves and water valves constructed from forged brass, CPVC and PVC materials. Valves are arranged in series reflecting the valves performance characteristics, connection types and handle style. B&K® valves are created to meet UPC and ICC plumbing code requirements and are certified to meet NSF 61 with many available in lead-free compliant versions.
-
BrandB&K®
-
UPC032888011052
-
Manufacturer Part Number101-105
-
CountryUSA
-
Low Lead ComplianceYes
-
Temperature Rating73 deg F
-
Pressure Rating200 psi
-
Trim MaterialStainless Steel Spring
-
ColorWhite
-
Actuator TypeSpring-Loaded Latch-Lock Handle
-
Nominal Size1 in
-
SeriesProLine™
-
Body MaterialPVC
-
End StyleFNPT
- Fits both SCH 40/STD and SCH 80/XH pipe
- Spring-loaded poppet
- Stainless steel spring for corrosion resistance and longer life
- O-ring seal
- Not for use with compressed air
| Cross-Reference Number |
|---|
| 430404 |
-
UNSPSC40141622
-
Package Description8/BX
-
Standards/ApprovalsANSI B1.20.1
-
