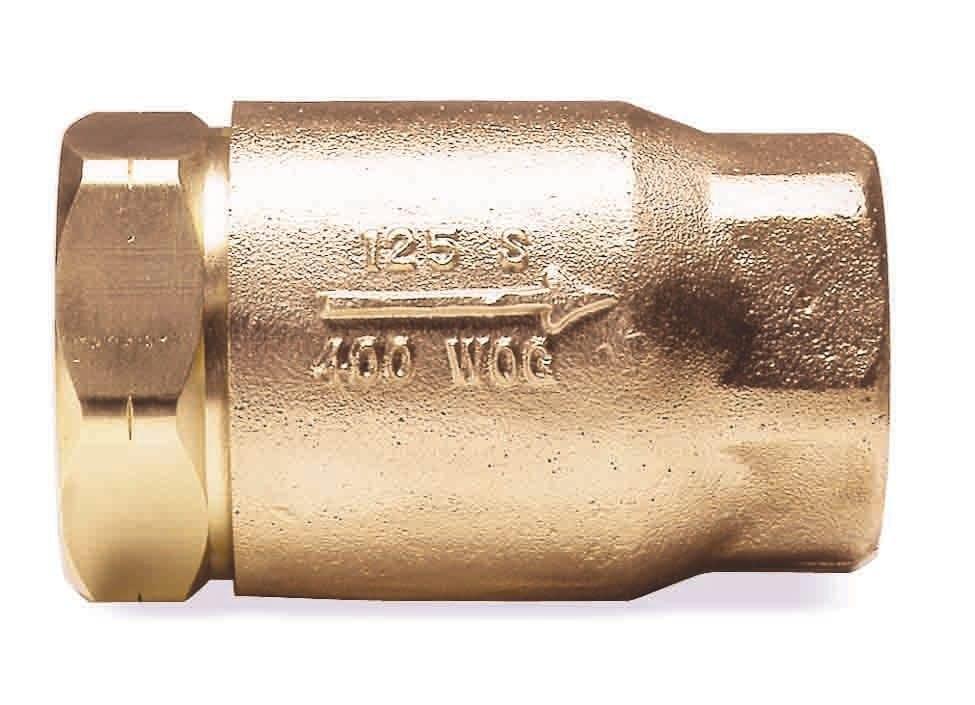

NIBCO AP-61-101-01 In-Line Check Valve, 1/4 in Nominal, FNPT End Style, 0.85 gpm Flow Rate, Bronze Body, Domestic
Apollo™ CVB Ball Cone® Check Valves offer reliable protection against reverse flow and exceptional resistance to chemicals and corrosion using proven ASTM quality materials made in the USA.
-
BrandApollo™
-
UPC670750631825
-
Manufacturer Part Number6110101
-
CountryUSA
-
Low Lead ComplianceNo
-
Temperature Rating406 deg F
-
Pressure Rating400 psi CWP
-
Flow Rate0.85 gpm
-
MediaLiquid/Steam
-
Trim Material316 Stainless Steel Spring/Brass Stem
-
Actuator TypeSpring
-
Nominal Size1/4 in
-
Series61-100
-

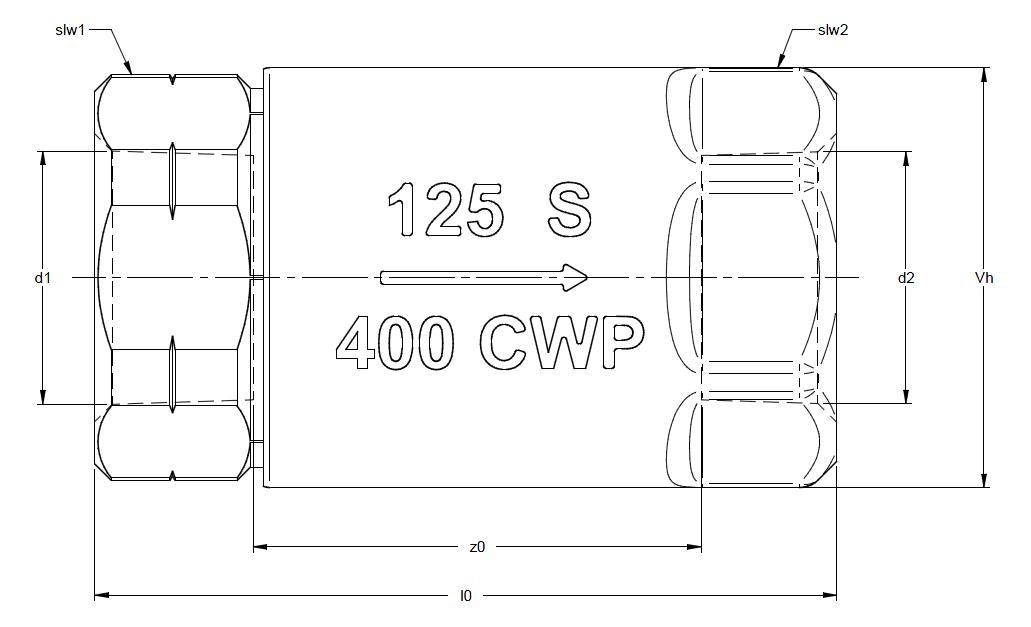

Inlet to Outlet Length2.06 in
-
Dimensions1.12 in H
-
Domestic/ImportDomestic
-
Body MaterialBronze
-
End StyleFNPT
- Tight shut-off with liquid media
- Flow straight-through design efficiency
- RPTFE Ball Cone for chemical resistance
- Well-suited for a broad range of applications, including saturated steam and chemical service
- 100% factory tested
- May be installed in both horizontal and vertical flow with upward flow, do not use for reciprocating air compressor service
- 400 psi at 100 deg F, 125 psi Steam at 350 deg F
- cast bronze construction
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | A6110101 |
-
UNSPSC40141600
-
Package Description100/BX
-
Standards/ApprovalsASTM B16 Brass Retainer/Stem|AISI 316 Stainless Steel Spring|CRN 0C11218.5C|PROP65: Cancer and Reproductive Harm
-
Warranty5 Years
-
Specification Sheet
-
Owners/User Manual
