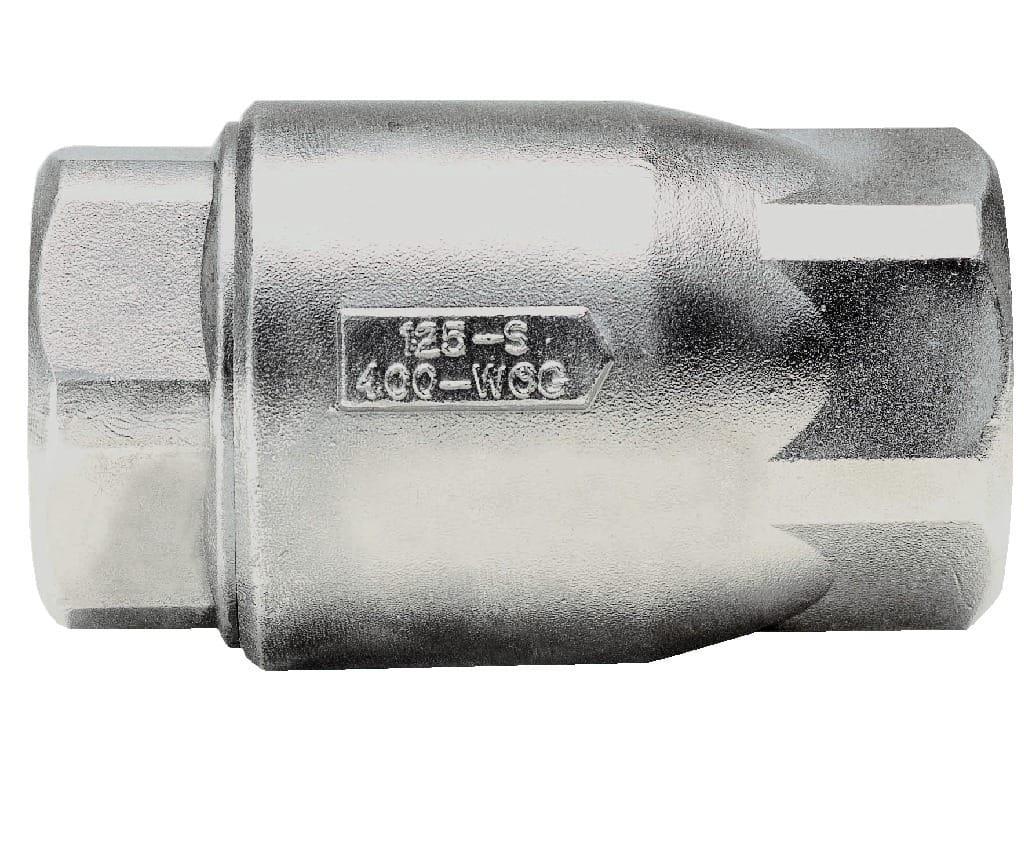

NIBCO 62-103-01 Standard In-Line Ball Cone Check Valve, 1/2 in Nominal, FNPT End Style, 1.4 gpm Flow Rate, Stainless Steel Body, Domestic
The 62-100 series is uniquely suited for applications in corrosive environments, including chemical processing, pulp and paper and other process industries. The rugged stainless steel body and RPTFE ball check provide reliable, patented protection against reverse flow.
-
BrandApollo™
-
UPC670750633317
-
Manufacturer Part Number6210301
-
CountryUSA
-
Temperature Rating350 deg F
-
Pressure Rating400 psi CWP
-
Flow Rate1.4 gpm
-
Trim MaterialStainless Steel
-
TypeStandard
-
Actuator TypeSpring-Loaded Latch-Lock Handle
-
Nominal Size1/2 in
-
Series62-100
-
Inlet to Outlet Length2.31 in
-
Dimensions1.12 in H
-
Domestic/ImportDomestic
-
Body MaterialStainless Steel
-
End StyleFNPT
- Unique design
- Spring-loaded for fast seating action
- Center guided so that radial alignment is never needed
- Straight-through flow minimizes pressure loss
- 0.5 psig cracking pressure
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | A6210301 |
-
UNSPSC40141622
-
Package Description100/BX
-
Standards/ApprovalsASTM A351 Retainer CF8M Valve Body|RoHS Compliant|US Patent 4172465|PROP65: Cancer and Reproductive Harm
-
Warranty5 Years
-
Catalog
-
Specification Sheet
-
Owners/User Manual
