Sloan Valves #186-XL SLOAN REGAL CLOSET VALVES SLO 3082653

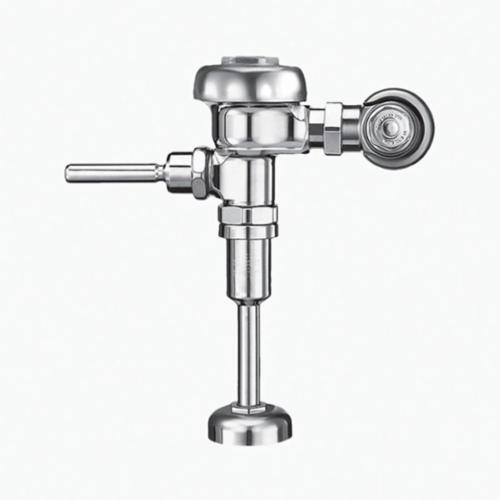

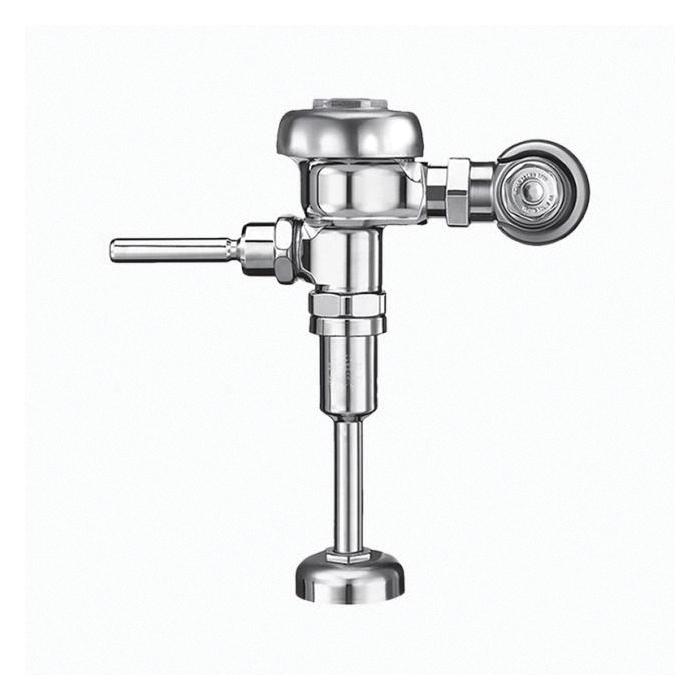

Sloan® 3082653 186 Single-Flush Manual Exposed Flushometer, 1.5 gpf Flush Rate, 3/4 in IPS Inlet, 3/4 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
-
BrandSloan®
-
UPC671254123496
-
Manufacturer Part Number3082653
-
CountryUSA
-
Finish/ColorPolished Chrome
-
MaterialSemi-Red Brass
-
Fixture TypeUrinal
-
Pressure Rating15 to 80 psi
-
TypeSingle-Flush
-
Handle TypeNon-Hold Open Oscillating
-
Series186
-
Inlet Size3/4 in IPS
-
Domestic/ImportDomestic
- Flush volumes start as low as 0.5 gpf/1.9 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
- Low Consumption flush accuracy controlled by Para-Flo™ technology
- Integrity of the product is maintained with control stop plug
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for red brass
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | S3082653 |
-
UNSPSC40141640
-
Standards/ApprovalsADA Compliant|BAA Compliant|cUPC Listed|Valve Shall be in Compliance with the Applicable Sections of ASSE 1037
-
Specification Sheet
-
Instruction/Installation Manual
-
Line Drawing
