Sloan Valves SLOAN CLOSET VALVES SLO 111-XL

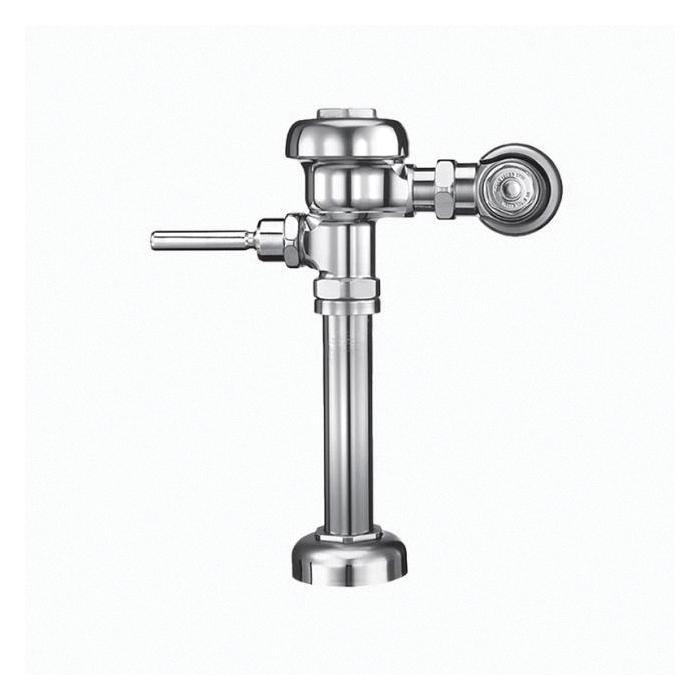

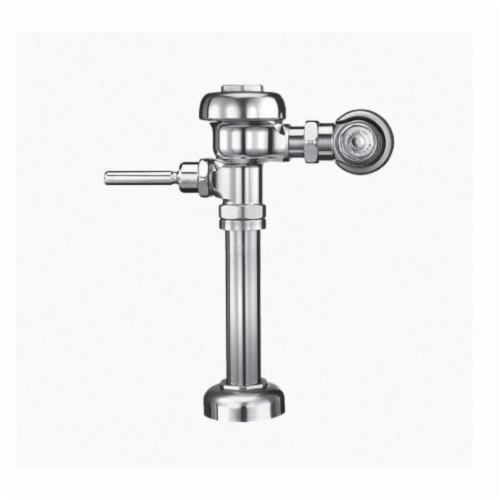

Sloan® 3080053 111 Single-Flush Manual Exposed Flushometer, Regal®, 1.6 gpf Flush Rate, 1 in IPS Inlet, 1-1/2 in Spud, Polished Chrome, Domestic
-
BrandSloan®
-
UPC671254123403
-
Manufacturer Part Number3080053
-
CountryUSA
-
Finish/ColorPolished Chrome
-
MaterialSemi-Red Brass
-
Fixture TypeWater Closet
-
CollectionRegal®
-
TypeSingle-Flush
-
Handle TypeNon-Hold Open
-
Series111
-
Inlet Size1 in IPS
-
Domestic/ImportDomestic
- Flush volumes start as low as 1.6 gpf/6.0 Lpf to meet water-efficiency objectives
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Low consumption flush accuracy controlled by Para-Flo™ technology
- Integrity of the product is maintained with control stop plug
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for red brass
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | S3080053 |
-
Alternative Part Number3080053AV
-
UNSPSC40141640
-
Standards/ApprovalsADA Compliant|ASSE 1037|BAA Compliant|cUPC Listed|ASTM Specified
-
Warranty3 Years Limited
-
