Sloan Valves #186-1 SLOAN ROYAL URINAL VALVES SLO 3012636

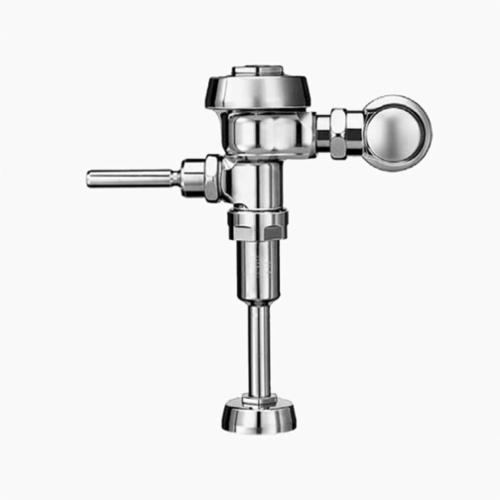

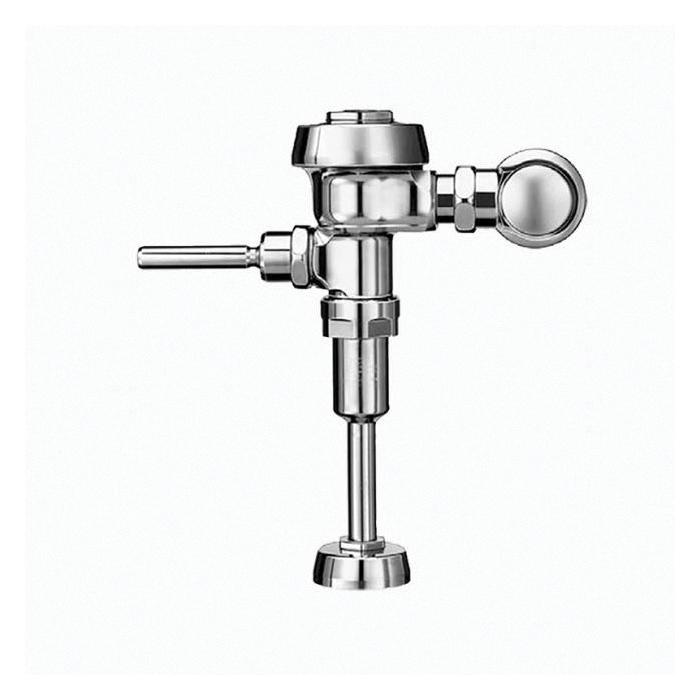

Sloan® Royal® 3012636 186 Single-Flush Flushometer, 1 gpf Flush Rate, 3/4 in IPS Inlet, 3/4 in Spud, Polished Chrome, Domestic
-
BrandSloan®
-
UPC671254116139
-
Manufacturer Part Number3012636
-
CountryUSA
-
Finish/ColorPolished Chrome
-
MaterialSemi-Red Brass
-
Fixture TypeUrinal
-
TypeSingle-Flush
-
Handle TypeNon-Hold Open Oscillating
-
Series186
-
Inlet Size3/4 in IPS
-
Domestic/ImportDomestic
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Permex® synthetic rubber diaphragm with dual filtered fixed by-pass
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
- Exposed water closet flushometer, for floor mounted or wall hung top spud bowls
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | S3012636 |
-
UNSPSC40141640
-
Standards/ApprovalsADA Compliant|BAA Compliant|cUPC Listed
-
Warranty3 Years Limited
-
Catalog
-
Line Drawing
-
Specification Sheet
-
Instruction/Installation Manual
