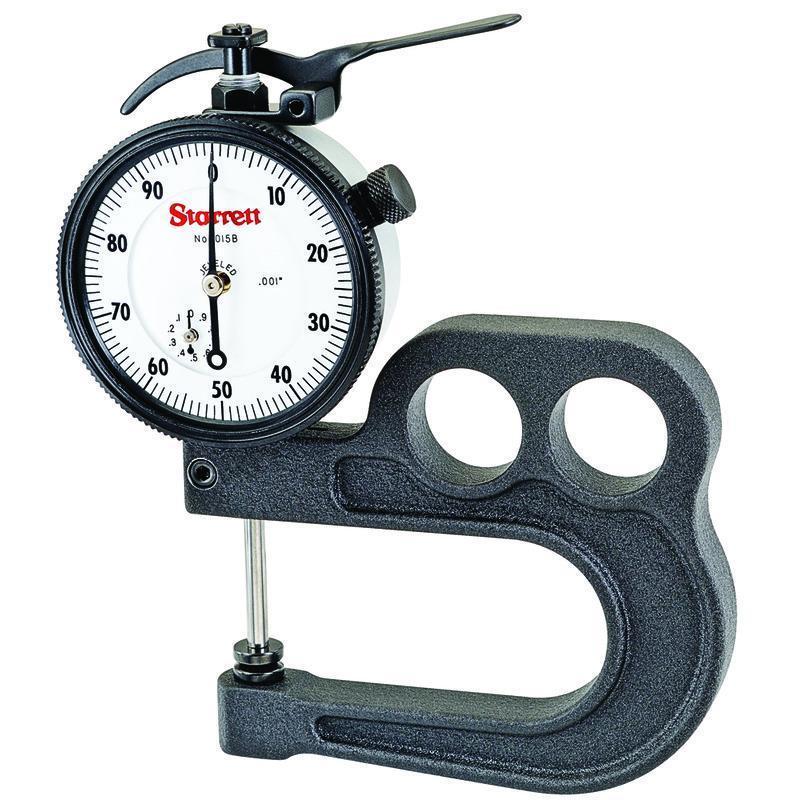

Starrett® 1015B Portable Dial Hand Gage, 1 in, Graduations: 0.001 in, 1/4 in Dia Flat Contact, 2-1/2 in D Throat
After inserting work between the measuring contacts, releasing the lever will cause the spindle to contact the work, giving an accurate size reading because measuring pressure is independent of the user. 1" Range, 0-100 Dial, .001" Grad, without Case.
-
BrandStarrett®
-
UPC049659531213
-
Manufacturer Part Number1015B
-
CountryUSA
-
Throat Depth2-1/2 in
-
Measuring Range1 in
-
Resolution0.001 in
-
TypePortable
-
Graduations0.001 in
-
Series1015
- The contact edges are radiused to prevent the work from being marred or deflected
- The fl at contact area measures 1/4 in (6.3mm) in diameter and is 1/8 in (0.125mm) thick
- Indicators have jewel bearings and continuous dials
- Special contact sizes and shapes are available by request
- 0-100 mm dial reading
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 26Z162 |
| Fastenal | 3124492 |
-
Alternative Part Number53121
-
UNSPSC41111623
-
Standards/ApprovalsPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
-
Package DescriptionEACH
-
Full Engineering Drawing
