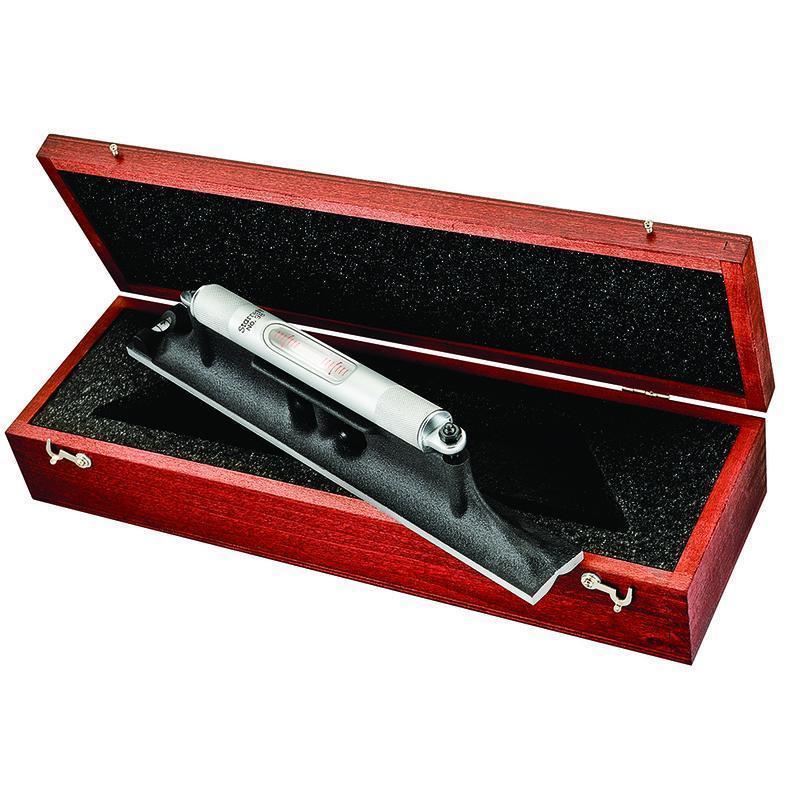

StarrettĀ® 98Z-12 98 Series Non-Magnetic Precision Uncalibrated Machinist's Level, 12 in L, Cast Iron
The Starrett 98 Machinists Level with Ground and Graduated Vial includes a cross test vial. 300mm (12") size, with wood case.
-
BrandStarrettĀ®
-
UPC049659504446
-
Manufacturer Part Number98Z-12
-
CountryUSA
-
MaterialCast Iron
-
ColorBlack/Silver
-
TypeNon-Magnetic Precision Uncalibrated
-
Vial MaterialGlass
-
Vial TypeSingle Plumb and Cross Test
-
Accuracy0.005 in/ft
-
Series98 Series
-
Number of Vials2
-
Length12 in
- Ground and graduated main vials
- The base of the levels features an involute groove running the length of the base, which provides a reliable seat for round work
- Main level vials have graduations that are approximately 80-90 seconds or .005 in per foot (0.42mm per meter)
- Main level vials have graduations that are approximately 80-90 seconds or 0.005 in per foot (0.42 mm per meter)
- Cast iron base for durability and finished wood case for storage
- There are five, six, or seven lines on each side of the bubble, depending on the base length
- 2 level vials and 1 plumb vial
- Unmilled surface
- Brass frame material
- V-shaped groove along the base provides reliable seating when leveling round items
- Precision machined on the reference surface
- Levels are instruments that are used to determine the true horizontal or vertical plane of a surface
- The most common type of level is the spirit level, or bubble level
- Spirit levels have a liquid-filled, bowed tube (also called a vial) with a bubble that moves when slight adjustments are made to the level
- When the bubble settles between marked points on the vial, it indicates that a surface is horizontally or vertically straight
- Levels can have one or more vials to determine the horizontal plane, the vertical plane, or various points between, such as a 45 deg angle, simultaneously
- Some levels include a laser line indicator that projects a horizontal or vertical beam on a surface
- Bulls eye levels, or surface levels, are circular, flat-bottomed spirit levels that determine whether a surface plane is level
- Machinists' levels are made of metal and have surfaces designed specifically for rugged use in a machine shop or tool room
- Levels can range from highly-complex and accurate machines, such as those used in the surveying and construction industry, to precision instruments used in carpentry and other building trades, to simple, pocket-sized devices for do-it-yourself project
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 26Z910 |
| MSC | 86404589 |
-
Alternative Part Number50444
-
UNSPSC27111802
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Package DescriptionEACH
-
SDS
