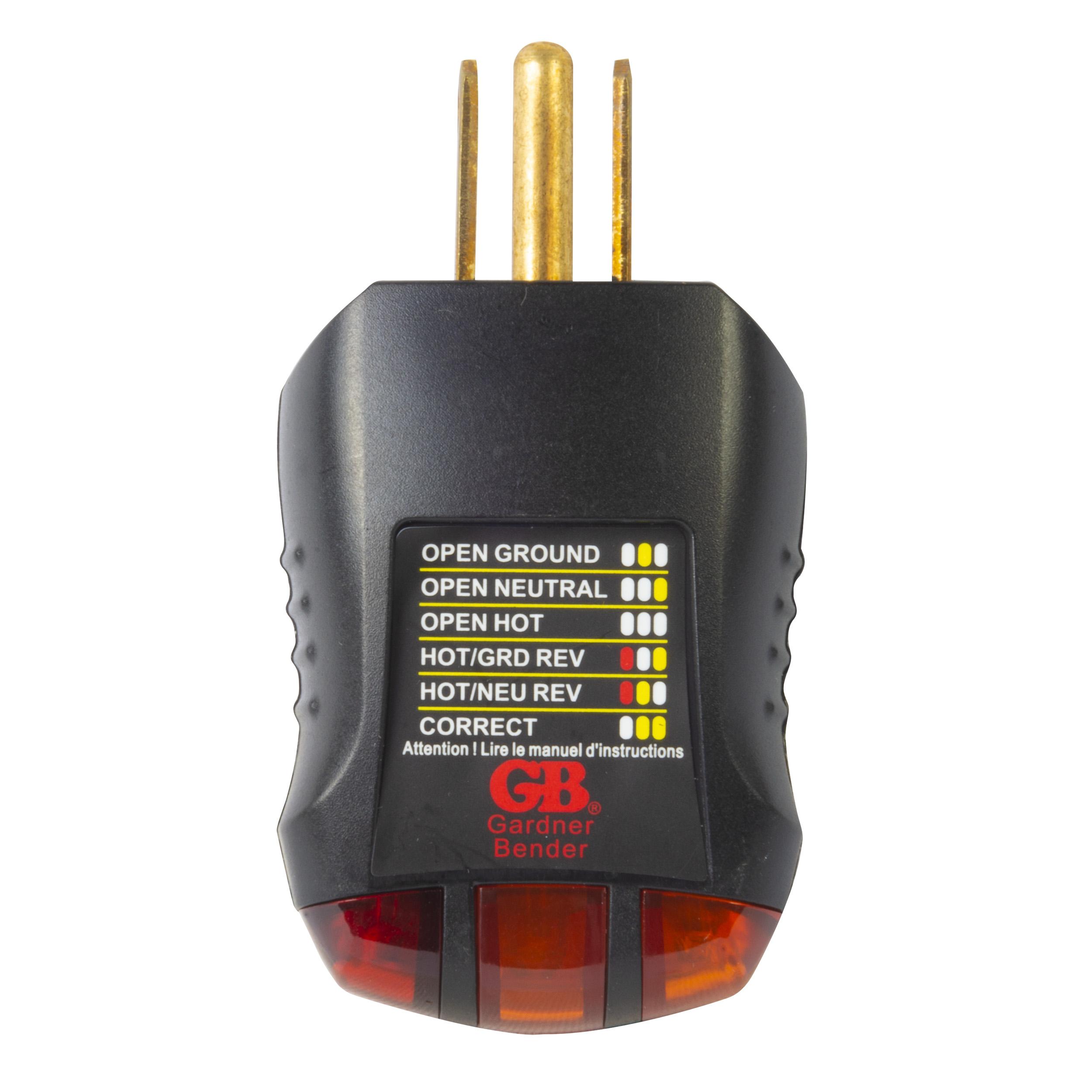

Gardner Bender GRT-3500 Standard Outlet Receptacle Tester and Circuit Analyzer, 120 V AC, 60 Hz
This 120 VAC outlet tester tests standard receptacles to ensure proper wiring. Neon light indicators give positive indication of circuit status. This compact unit plugs into any standard 3-wire/grounded receptacle (110 - 125 V AC circuits). It tests for six circuit conditions: open ground, open neutral, open hot, hot/ground reverse, hot/neutral reverse and correct wiring.
-
BrandGardner Bender
-
UPC032076068431
-
Manufacturer Part NumberGRT-3500
-
CountryUSA
-
Frequency Rating60 Hz
-
ColorBlack
-
TypeStandard Outlet
-
Voltage Rating120 V AC
-
IndicatorVisual Only
- Tests multiple conditions - open ground, open neutral, open hot, hot/ground reverse, hot/neutral reverse and correct wiring
- Succession of yellow and red lights provides indication of circuit status or specifies wiring errors
- Provides easy to read views from the top, side and bottom of tester
- Integrated neon lenses
| Cross-Reference Number |
|---|
| 531311 |
-
Alternative Part Number16793587
-
UNSPSC41113676
-
IDEA Index ID16793587
-
Standards/ApprovalscETLus Listed
-
Warranty1 year
-
Specification Sheet
