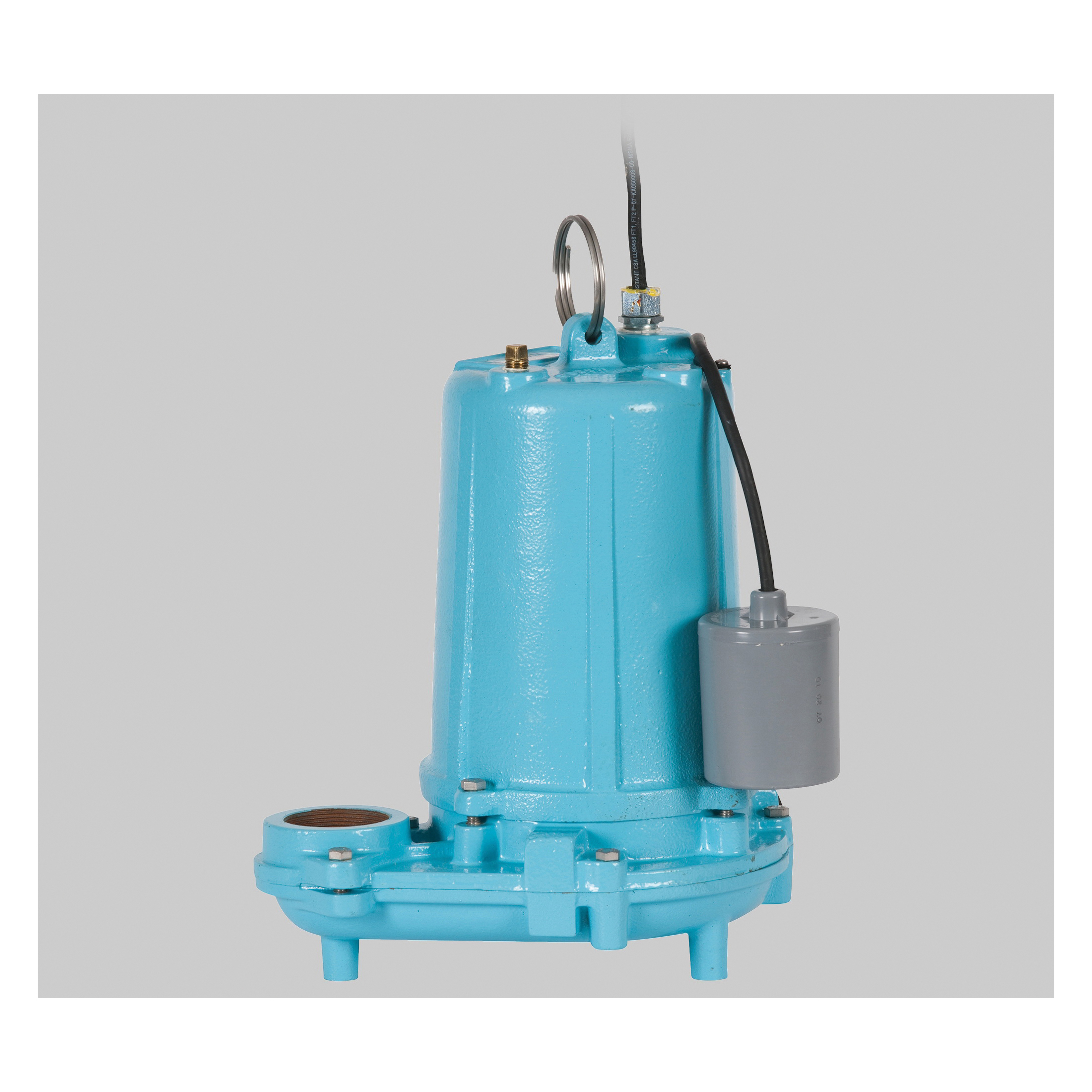

Little Giant® 620219 WS Series Effluent Pump, 115 gpm Max Flow, 10 ft Rated Head, Automatic, 63 ft Max Head, 115 V, 1 ph
Little Giant® 620219 WS Series Effluent Pump, 115 gpm Max Flow, 10 ft Rated Head, Automatic, 63 ft Max Head, 115 V, 1 ph
-
BrandLittleGIANT®
-
UPC010121121546
-
Manufacturer Part Number620219
-
CountryUSA|Canada
-
Temperature Rating120 deg F
-
Maximum Flow Rate115 gpm
-
Maximum Head63 ft
-
Maximum Pressure27.3 psi
-
Maximum Suction Lift50 ft
-
Rated Head10 ft
-
Frequency Rating60 Hz
-
Motor Speed3450 rpm
-
Voltage Rating115 V
-
Cord TypeSJOW 20 ft
-
Amperage Rating9.7 A
-
SeriesWS Series
-
Automatic/Non AutomaticAutomatic
-
Horsepower1/2 hp
-
Impeller TypeCast Iron Non-Clogging
-
Dimensions9.38 in W
-
Bearing TypeUpper and Lower Ball
-
Domestic/ImportImport
-
Outlet Size2 in FNPT
-
Phase1
- Designed for high torque
- Handles solids up to 3/4 in Dia
- Piggyback mechanical float operation
-
Alternative Part NumberWS50HAM-20
-
UNSPSC40151500
-
Package Description1/PK
-
Standards/ApprovalscCSAus Certified
-
Warranty3 Years
-
Specification Sheet
-
Instruction/Installation Manual
-
Catalog
