Black&Decker 20-VOLT 4-PORT BATTERY CHARGERS BD- DC-B-104

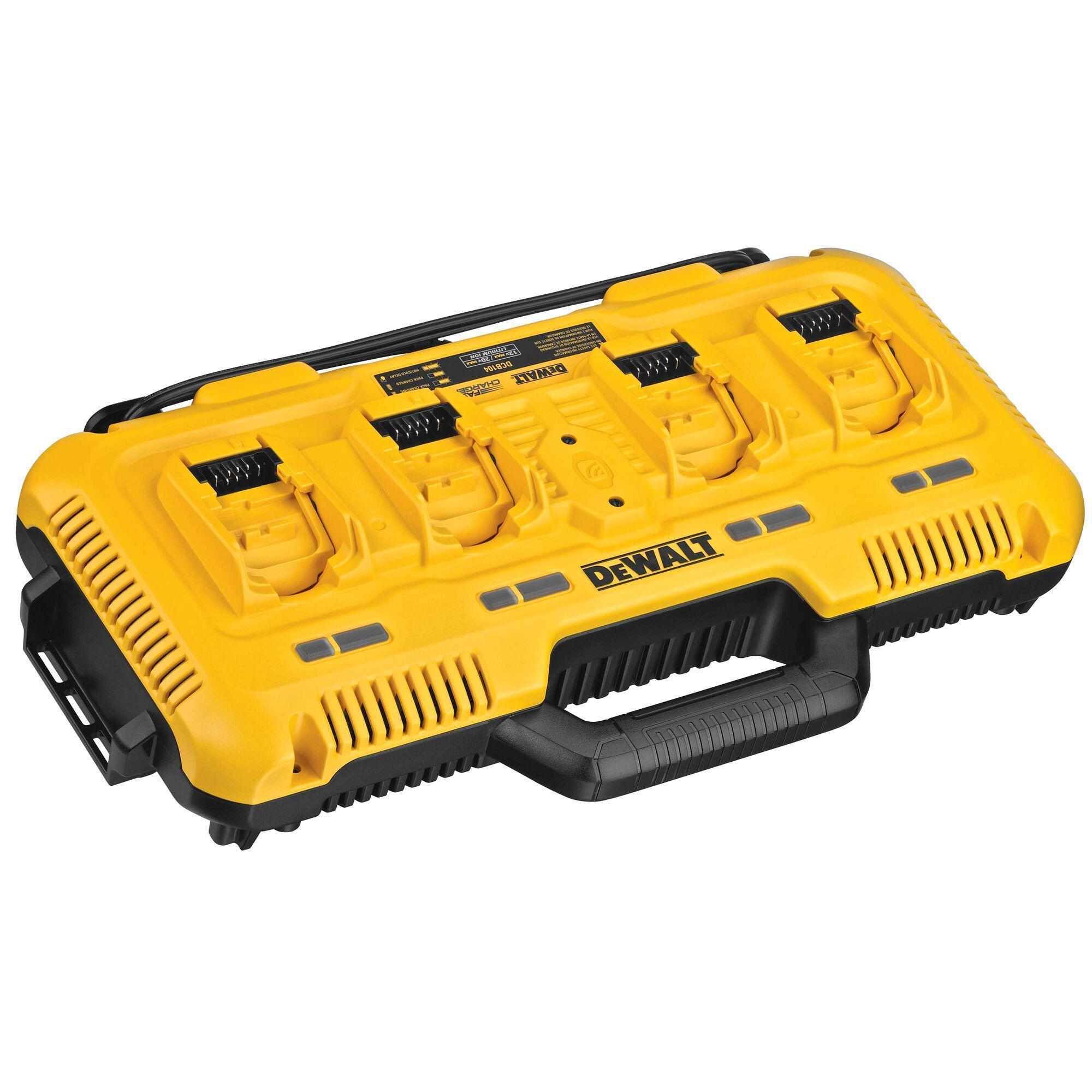

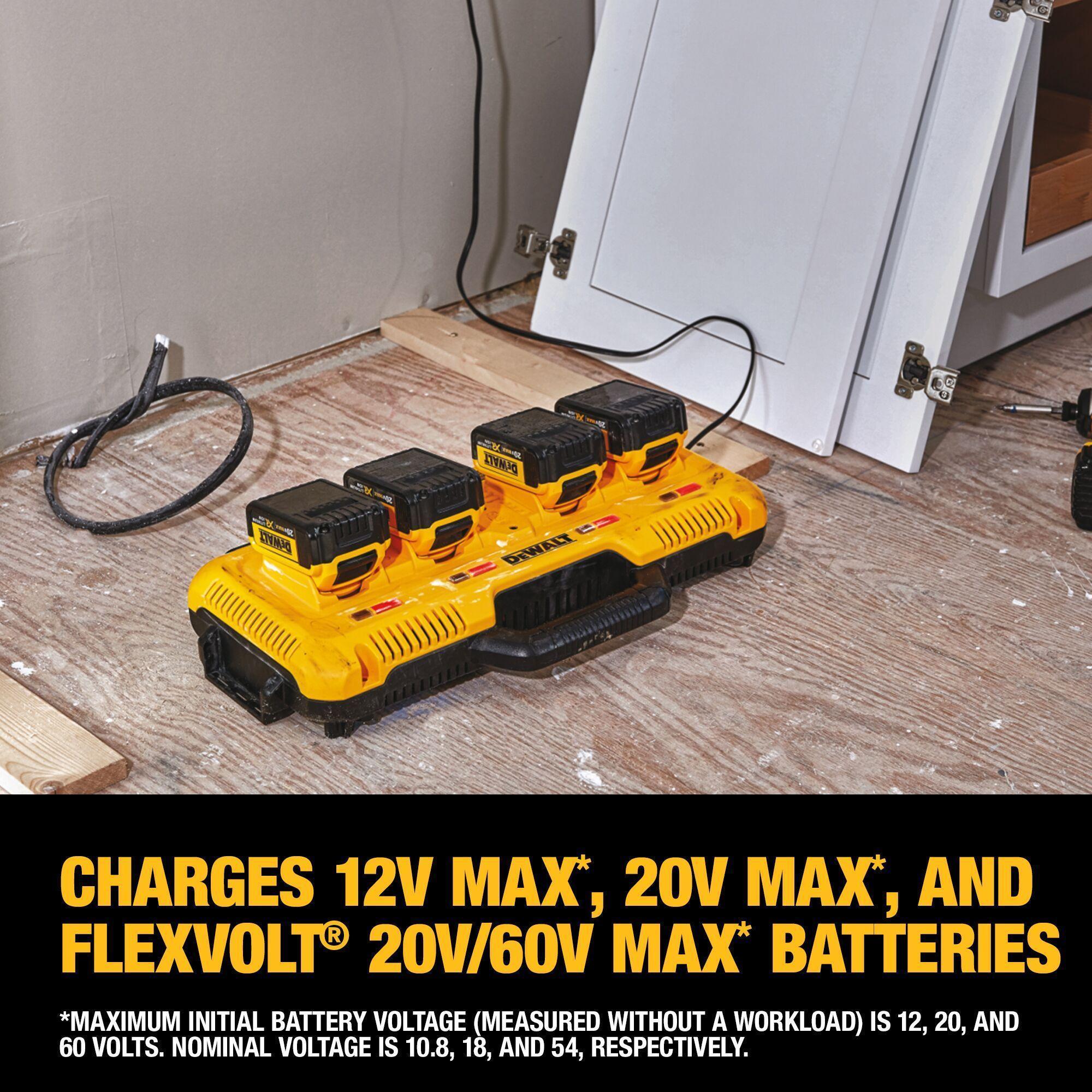

This charger is a four-port fast charger that charges 12V MAX, 20V MAX, and FLEXVOLT 20V/60V MAX batteries at the same time. This fast charger quickly charges a 4.0Ah 20V MAX battery in 40 minutes, and a 6.0Ah 20V MAX battery in 60 minutes. It is also designed to fit our Tool Connect Tag, and is ToughSystem compatible.
-
BrandDeWALT®
-
UPC885911508681
-
Manufacturer Part NumberDCB104
-
CountryUSA|Canada
-
Charging Time(4) DCB606 - 60 min/(4) DCB204 - 40 min
-
TypeMulti-Port Simultaneous
-
Number of Batteries4
-
Bare Tool/KitBare Tool
-
Battery Capacity6 Ah
-
Battery TypeLi-Ion
-
Input Voltage120 VAC
-
Output Voltage20 VDC
-
Suitable For Use With12 V Max/20 V Max and FLEXVOLT™ 20/60 V Max Batteries

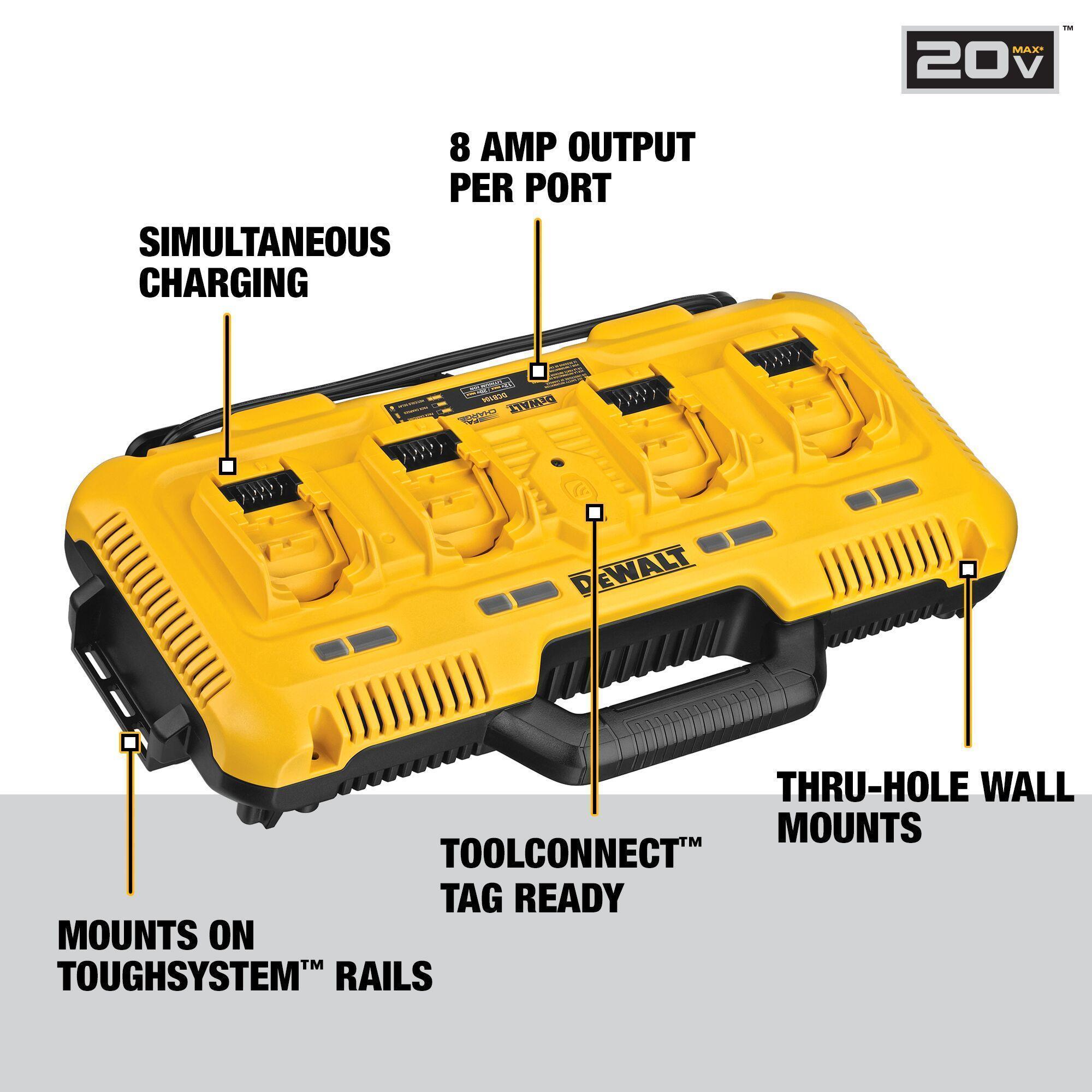

- 8 A output per port (simultaneously)
- Charges (4) DCB606 battery in 60 mins
- Simultaneous charger all ports charge at the same time
- Cord wraps
- Side brackets to mount onto the toughsystem rails

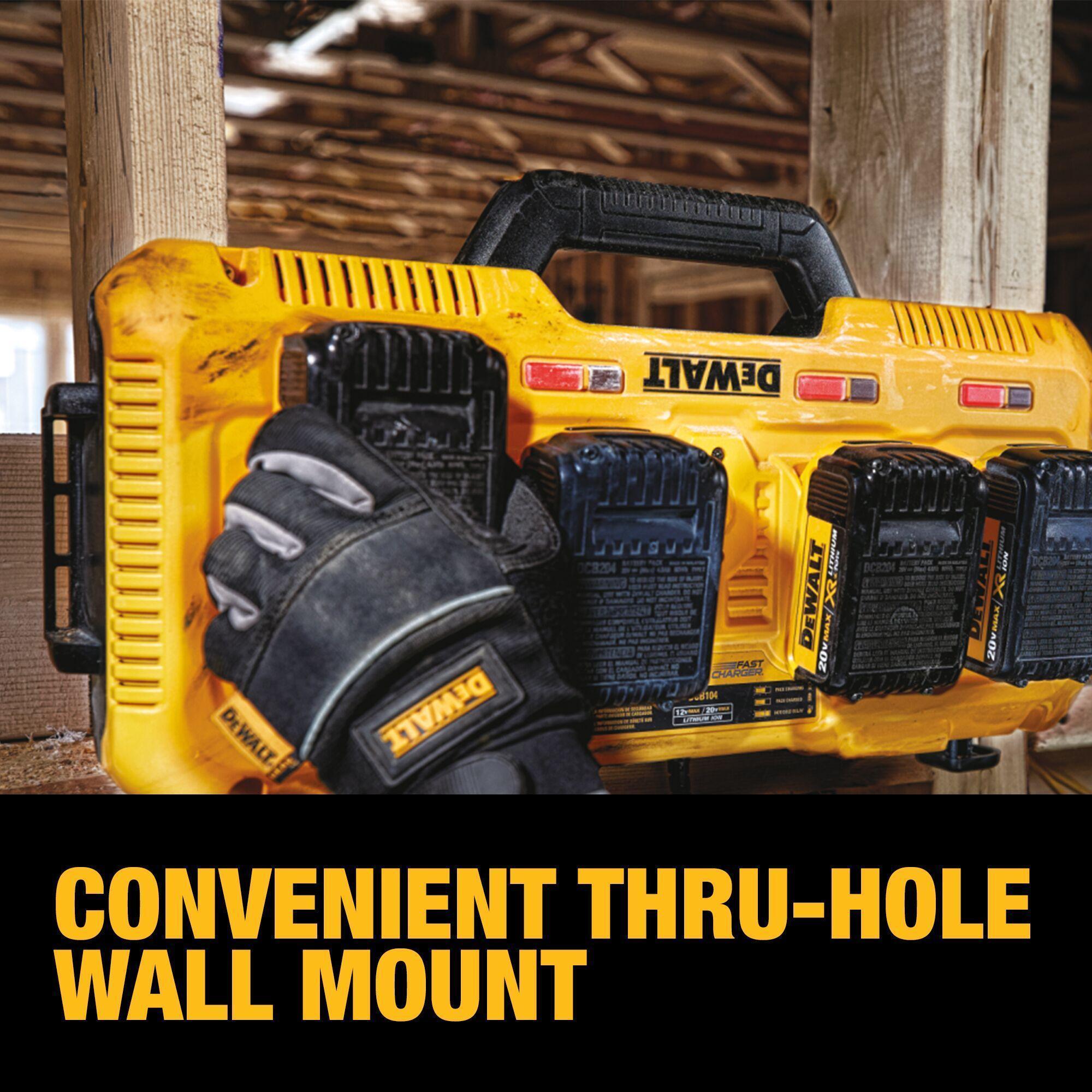

- Thru-hole wall mounts
- Toolconnect tag ready
| Competitor Name | Cross-Reference Number |
|---|---|
| Fastenal | 2191707 |
-
Alternative Part Number15598877
-
UNSPSC26111704
-
IDEA Index ID15598877
