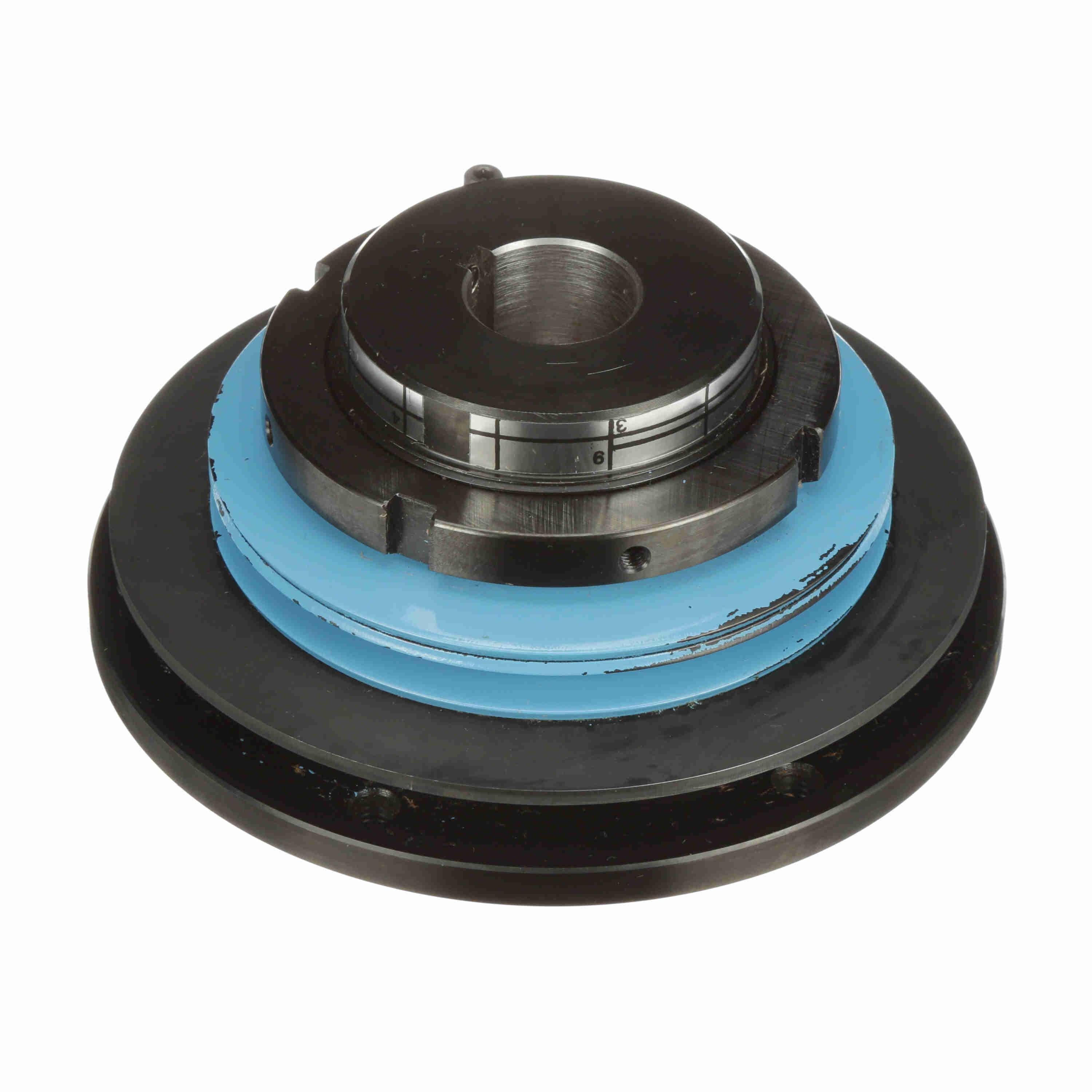

Browning® 187811 TP50M Ball Detent Overload Clutch, 1-7/16 in Dia Bore, 6-1/4 in OD, 1200 to 3600 in-lb Torque, 3.19 in OAL
The Browning® Torq/Pro® overload clutch is a release type ball detent style torque overload device with a single position reset configuration. After tripping, the unit automatically resets when it returns to the set position. This is usually performed by jogging the machine after the jam or overload is cleared. Inherent in the design is accuracy, reversibility, a torque setting scale and a switch detector plate. An asymmetrical ball detent pocket pattern allows engagement in only one position. Torque capacity up to 63300 in-lb and speed ranges up to 1200 rpm.
-
BrandBrowning®
-
UPC662288442707
-
Manufacturer Part Number187811
-
CountryUSA
-
Torque Rating1200 to 3600 in-lb
-
TypeBall Detent
-
SeriesTP50M
-
Outside Diameter6-1/4 in
-
Bore Diameter1-7/16 in
-
Overall Length3.19 in
- Overload protection for machinery with increased accuracy
- The adjustable spring pressure transmits torque through a ball in detent arrangement
- The device is tripped, it automatically resets by rotating the driving member
- One position type allows only one engagement position
- Accuracy of trip torque within +/-10% even with repeated tripping the precision remains within +/-10%
- The desired torque can be easily set and adjusted by tightening or loosening the adjusting nuts and bolts
- Visual torque meter and indicator can confirm the setting torque
- Blue medium disc spring
- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning Torqe Pro overload load clutch is release type ball detent style with single position reset
-
Alternative Part NumberTP50MX 1 7/16
-
UNSPSC24101600
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
