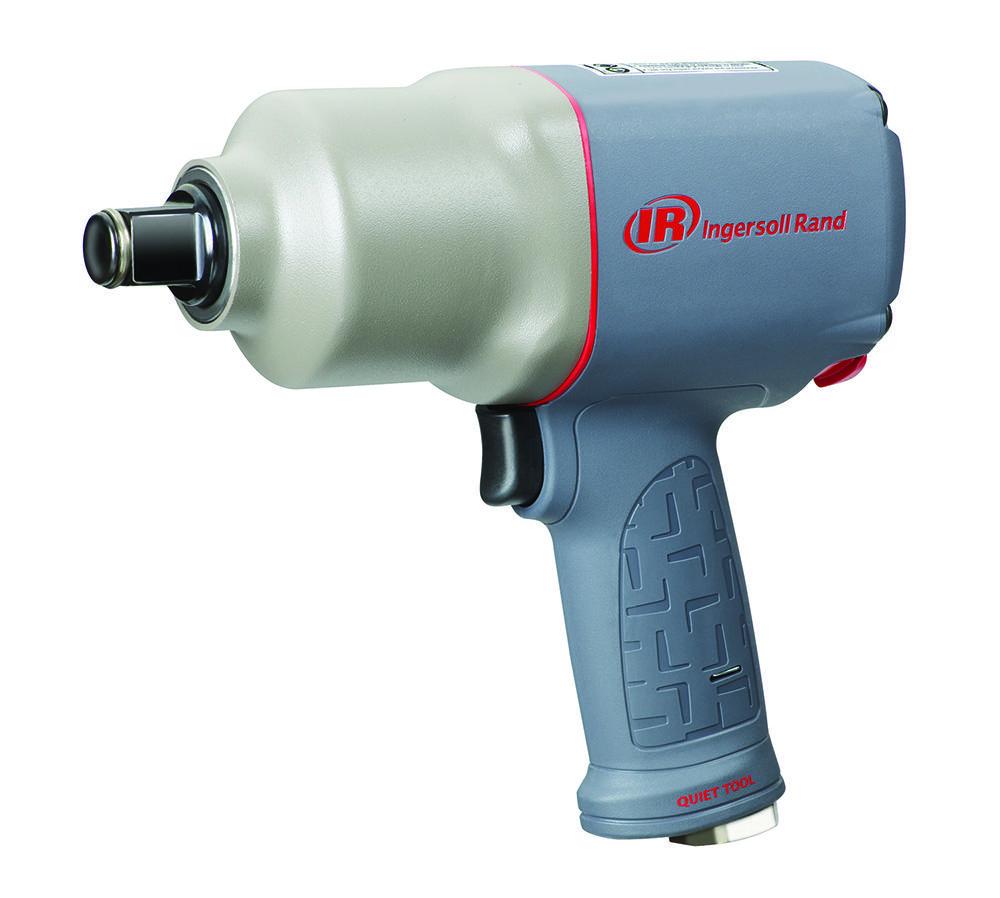

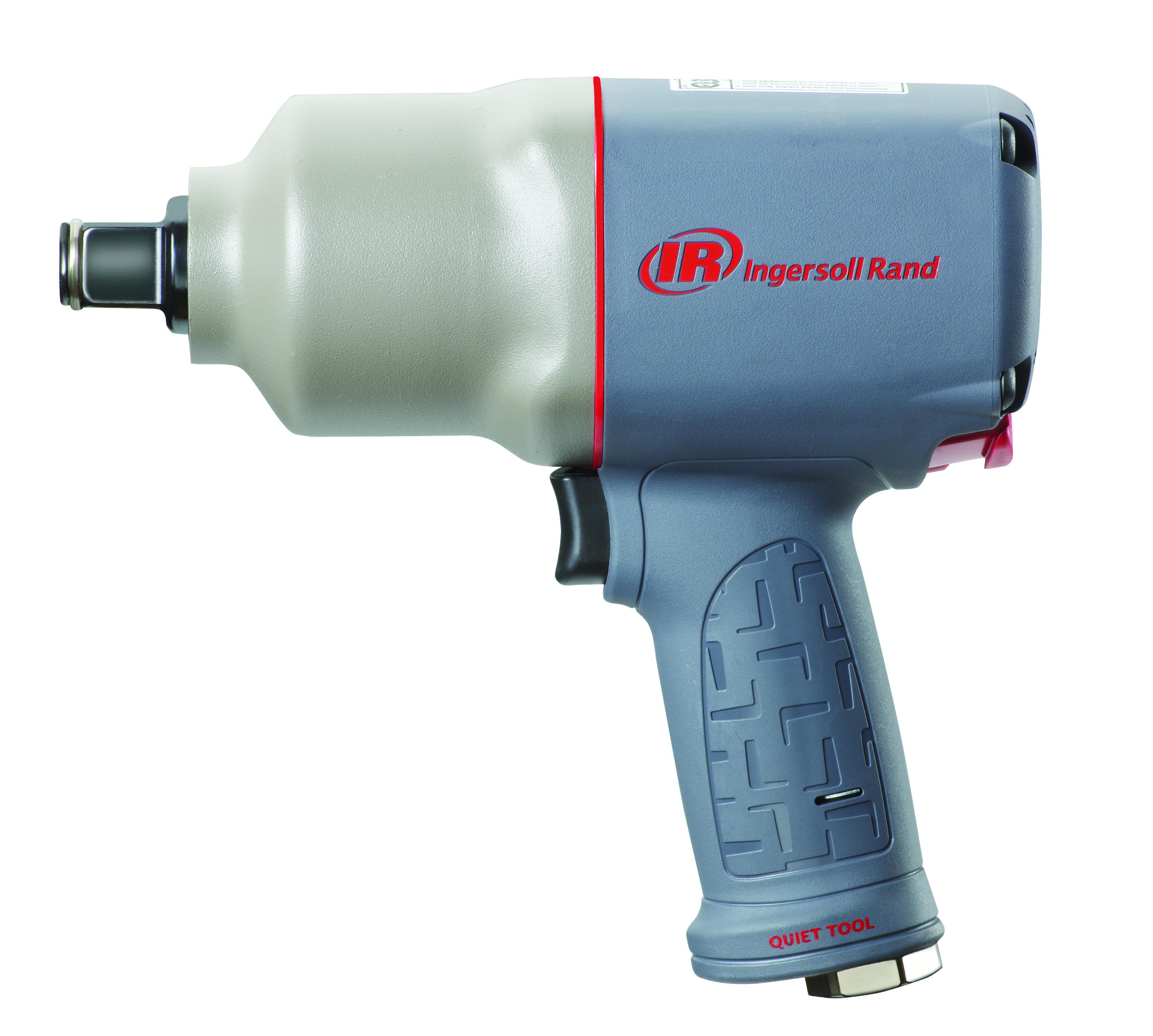

Ingersoll-Rand 3/4" 1000-FT/LB AIR IMPACT WRENCH ING 2145-QI-MAX

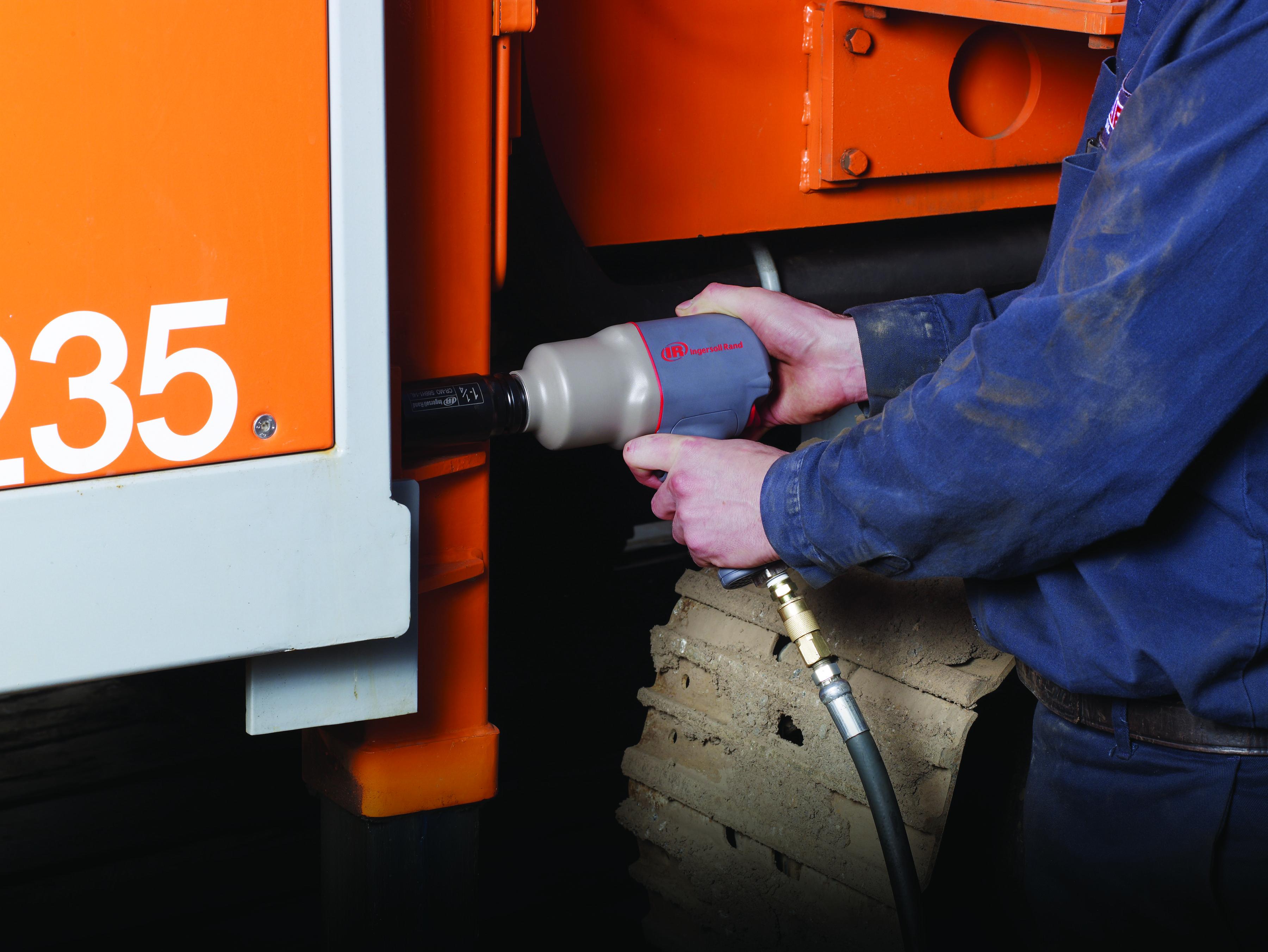

The ingersoll Rand 2155QiMAX 1" Impactool™ delivers incredible performance and industrial grade durability in an impact wrench. Plus, its efficient air motor reduces air consumption to save you money. Perfect for the most demanding applications, such as truck and bus service, construction and agricultural equipment maintenance, as well as the MRO market.
-
BrandIngersoll Rand
-
UPC663023093406
-
Manufacturer Part Number2145QIMAX
-
CountryUSA
-
Minimum Hose Size1/2 in
-
Handle TypePistol Grip
-
Air Flow Rate32 cfm Full Load/8.5 cfm Average
-
Air Inlet3/8 in NPT
-
Air Pressure90 psi
-
Blows per Minute1150 bpm
-
Drive Size3/4 in
-
Drive TypeHog Ring/Square/Through Hole
-
Tool/KitBare Tool
-
Torque Rating200 to 1000 ft-lb
-
TypeGeneral Duty Standard Anvil
-
Series2145QiMAX
-
Sound Level91.1 dB
-
Speed7000 rpm
-
Overall Length8-1/2 in
- 1350 ft-lb maximum reverse torque from a tool that weighs just 7.4 lbs and is compact enough to access tight spaces
- An air motor that's 16 percent more efficient than its predecessor and an easy-to-clean inlet screen means less downtime, better tool performance, and less money spent on compressed air
- Easier access to grease fitting - for quicker maintenance and less downtime
- Steel hammer case is designed to be strong and durable, to protect the interior components of the air impact wrench
- Enhanced socket retention
- 7-vane Motor delivers added power with less weight
- Finely tuned twin hammer impact mechanism and motor deliver more torque, durability, and efficiency
- Feather-touch trigger provides maximum control of this air impact wrench
- Anodized end plate for enhanced durability
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 13E913 |
| MSC | 61136594 |
| Fastenal | 0234350 |
| Ferguson | I2145QIMAX |
-
UNSPSC27131501
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
-
Full Engineering Drawing
-
Line Drawing
