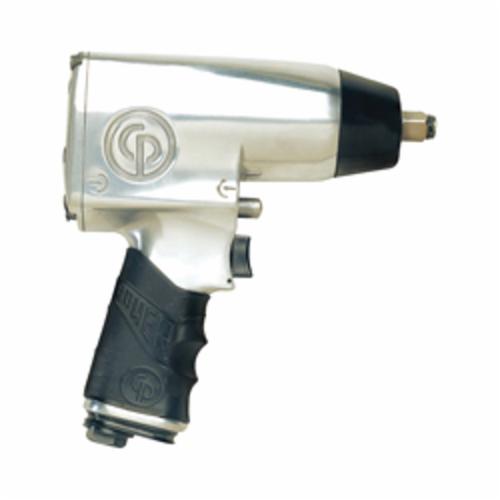

Chicago Pneumatic T024351 Classic Super Duty Air Impact Wrench With Ring Retainer, 1/2 in Drive, 34 to 420 N-m Torque, 3.75 cfm Air Flow, 9.13 in OAL
The Classic reference in the 1/2 Inch impact wrench range, designed with a pin clutch mechanism in oil bath and a metal motor housing for high durability.
-
BrandChicago Pneumatic
-
UPC015451409241
-
Manufacturer Part NumberT024351
-
CountryUSA|Canada
-
Tool/KitBare Tool
-
Torque Rating34 to 420 N-m
-
Minimum Hose Size3/8 in
-
TypeSuper Duty
-
Handle TypeErgonomic/Pistol Grip
-
Air Flow Rate3.75 cfm
-
Air Inlet1/4 in NPTF
-
Air Pressure90 psi
-
SeriesClassic
-
Sound Level93 dBA
-
Speed8400 rpm
-
Blows per Minute1020 bpm
-
Drive Size1/2 in
-
Drive TypeSquare
-
Overall Length9.13 in
- DYNA-PACT oil bath clutch delivers smooth operation and extended durability
- One-hand push button forward reverse power regulator
- 4-positive power settings, ultimate power in reverse
- Handle exhaust with 360 deg air inlet swivel to prevent hose kinks
- 3.4 m/S2 vibration
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 36WC73 |
| Grainger | 36WC73 |
-
Alternative Part NumberCP734H
-
UNSPSC27112713
-
Package Description1/PK
-
Standards/ApprovalsPROP65: This Product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
