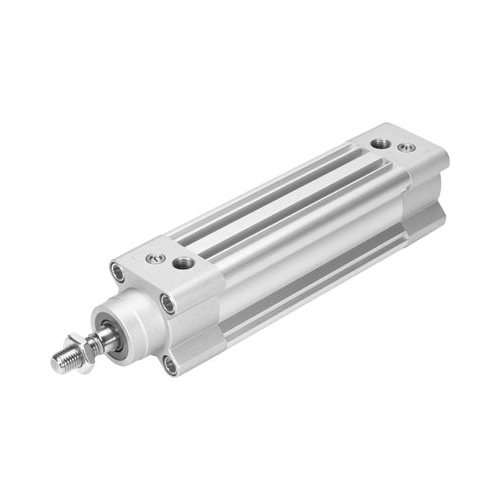

Festo DSBC-3280-PPVAN-3 Standard Cylinder, 32 mm Cylinder Bore, 80 mm L Stroke, 483 N Advance/415 N Return Max Force, Double Acting Cylinder Action
Festo 1376425 DSBC Standard Cylinder, 32 mm Cylinder Bore, 80 mm L Stroke, 483 N Advance/415 N Return Max Force, Double Acting Cylinder Action
-
BrandFesto
-
Manufacturer Part Number1376425
-
CountryUSA
-
Temperature Rating-20 to 80 deg C
-
FinishSmooth Anodized
-
Port SizeG1/8
-
MaterialHigh Alloy Steel Piston Rod/Wrought Aluminum Alloy Cylinder Barrel
-
Pressure Rating0.6 to 12 bar
-
Maximum Force483 N Advance/415 N Return
-
Maximum Load110 g Moving Mass with 0 mm Stroke/9 g Moving Mass Per 10 mm Stroke
-
Rod DiameterM10
-
Rod Thread SizeM10 x 1.25
-
SeriesDSBC
-
Cushion TypePneumatic
-
Cylinder ActionDouble Acting
-
Cylinder Bore Size32 mm
-
Dimensions226.2 mm L x 45.5 mm W x 45.5 mm H
-
Stroke Length80 mm
- Recommended for contactless position sensing
- Extensive range of accessories makes it possible to install the cylinder virtually anywhere
- Pneumatic cushioning, adjustable at both ends
-
Alternative Part NumberDSBC-32-80-PPVA-N3
-
UNSPSC27131701
-
Standards/ApprovalsRoHS Compliant
-
Specification Sheet
-
Catalog
