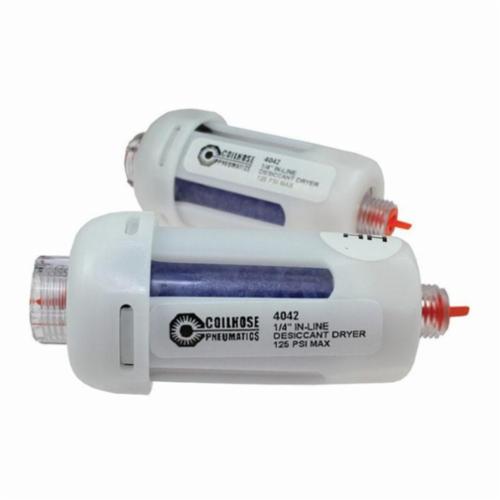

Coilhose® 4042 In-Line Desiccant Air Dryer, 1/4 in Outlet, 10 scfm Flow Rate, 125 psi Pressure Rating, 130 deg F
Coilhose® 4042 In-Line Desiccant Air Dryer, 1/4 in Outlet, 10 scfm Flow Rate, 125 psi Pressure Rating, 130 deg F
-
BrandCoilhose®
-
UPC029292921718
-
Manufacturer Part Number4042
-
CountryUSA
-
Temperature Rating130 deg F
-
Pressure Rating125 psi
-
Flow Rate10 scfm
-
TypeIn-Line
-
Height3-3/4 in
-
Width1-11/16 in
-
Outlet Size1/4 in
- In-line desiccant air dryer collects the smallest moisture mist
- Desiccant beads change from blue (dry) to pink (wet) to indicate absorbing capacity
- Polycarbonate bowl with nylon guard allow visual inspection of desiccant beads
- Pressure drop of less than 1 psi
- No additional power source required
- In-line version is disposable
- Equipped with an indicator strip on the outside
- Polycarbonate bowl
-
UNSPSC40161509
-
Package Description1/PK
-
Instruction/Installation Manual
-
Catalog
