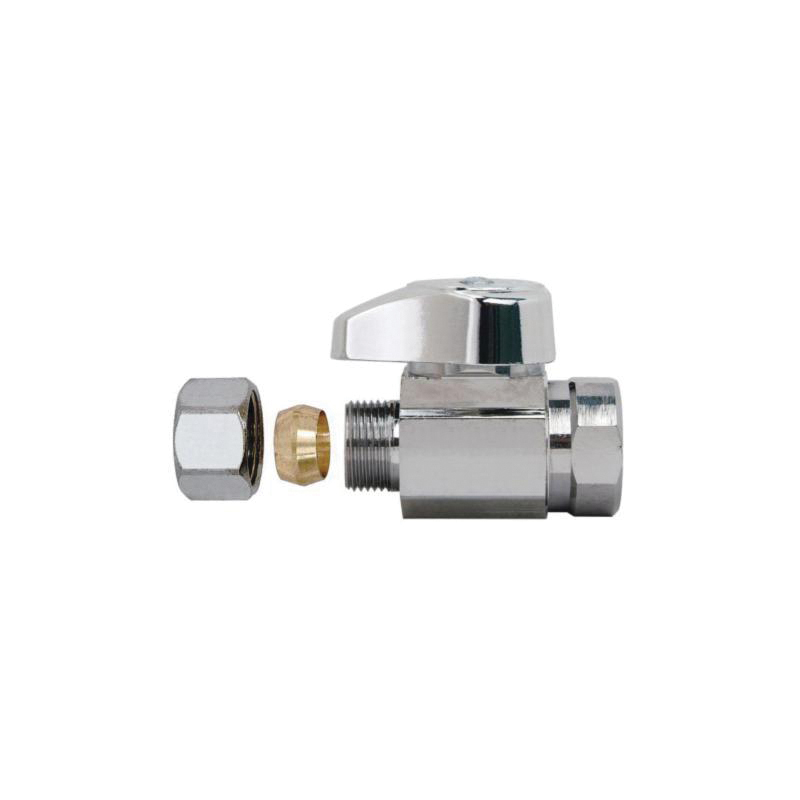

BrassCraft® G2R10X C1 1/4 Turn Water Supply Stop, 3/8 in Nominal, FNPT x Compression, 125 psi, Brass Body, Polished Chrome, Domestic
BrassCraft 3/8 in FIP Inlet x 3/8 in OD Compression Outlet 1/4-Turn Straight Valve controls water flow to household plumbing fixtures – faucets, toilets, dishwashers, icemakers, washing machines, etc. The straight valve is most often used where the water pipe enters the room from the floor. With a 90 degree turn of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.
-
BrandBrassCraft®
-
UPC026613137803
-
Manufacturer Part NumberG2R10X C1
-
CountryUSA
-
Temperature Rating40 to 140 deg F
-
FinishPolished Chrome
-
Pressure Rating125 psi
-
Type1/4 Turn
-
Nominal Size3/8 in
-
Domestic/ImportDomestic
-
Body MaterialBrass
-
End StyleFNPT x Compression
- For use in potable water distribution systems
- Smooth, quarter-turn operation, on/off flow control with a 90 degree turn of the handle
- Easy-to-remove handle protects against accidental operation during rough-ins
| Cross-Reference Number |
|---|
| 400292 |
-
UNSPSC40141700
-
Package Description20/CTN
-
Standards/ApprovalsASME A112.18.1|CSA B125.1|IAPMO Listed|UPC Listed
-
Specification Sheet
-
Instruction/Installation Manual
