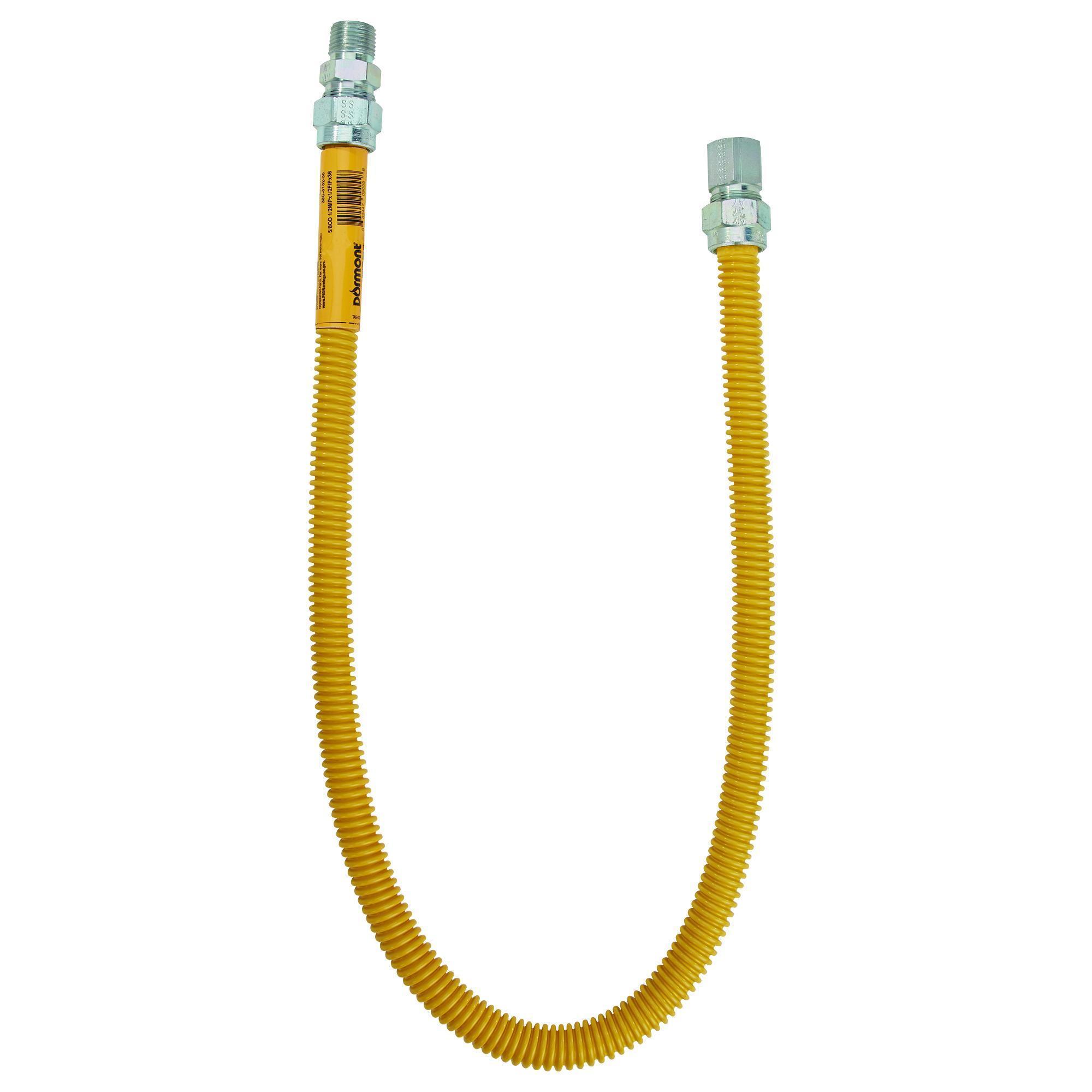

Dormont® SafetyShield® 0242482 20C, 20C-3132-24B Gas Connector, 3/8 in Nominal, MNPT x FNPT End Style, 85000 Btu/hr Natural Gas, 136000 Btu/hr Liquid Propane Flow Rate, 24 in L, 304 Stainless Steel
This 1/2 inch OD, 3/8 inch ID, durable, corrosion resistant stainless steel gas connector is configured with 1/2 inch MIP x 1/2 inch FIP adapters and is 24 inches in length. This CSA approved SafetyShield(R) gas connector features a premium antimicrobial coating to inhibit bacteria growth, improve corrosion and UV protection, and enhance flame and smoke resistance. The yellow coating is an industry recognized color for gas lines and provides extra corrosion protection from accidental contact with harmful chemicals that may be found in household products. It is commonly used for the installation of home appliances such as gas dryers and water heaters. Item comes in a bag.
-
BrandDormont®
-
UPC662447099254
-
Manufacturer Part Number0242482
-
CountryUSA
-
FinishYellow Coated
-
Material304 Stainless Steel
-
Nominal Size3/8 in
-
Series20C
-
Outside Diameter1/2 in
-
Length24 in
-
End StyleMNPT x FNPT
-
Flow Rate85000 Btu/hr Natural Gas, 136000 Btu/hr Liquid Propane
- Premium antimicrobial coating for increased safety, durability, and longevity
- 100 Percent factory leak tested
- Premium antimicrobial coating for increased safety, durability, and longevity
- ProCoat coating corrosion resistant to harsh chemicals as well as UV rays and salt
- Smooth, burnished connector ends seal with less torque, making installation easier
- High tensile strength stainless steel is less susceptible to work hardening
- Deep corrugations enhance flexibility and maneuverability of connector during installation
- Gas connector is 100% leak tested
- Approved for indoor and outdoor use
- -40 to 150 deg F temperature
- 1/2 psi max pressure
-
UNSPSC40141720
-
Package DescriptionEACH
-
Standards/ApprovalsANSI Z21.24/CSA 6.10|ANSI Z21.75/CSA 6.27|ASTM A240|cSAus Certified|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
-
Alternative Part Number20C-3132-24B
-
WarrantyLimited
-
Specification Sheet
-
Instruction/Installation Manual
-
Specification Sheet
