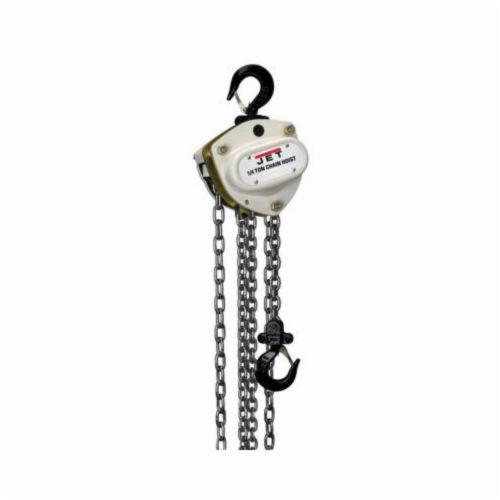

1/4-TON 10' - LIFT HAND CHAIN HOISTS JET101200
Jet® L-100 series hand chain hoist integrates safety, durability and innovation enabling it to operate in the most demanding industrial environments. Safety features such as optional overload protection prevents the hoist from lifting damaging loads beyond its rated capacity. The Jet® exclusive innovation showcased in the patented fused brake system reduces maintenance costs and limits down time Jet® is so confident in the durability of the fused brake design we back it with an industry leading lifetime replacement warranty. The Jet® L-100 is available in 1/4 ton to 20 ton capacities and standard lifts of 10, 15, 20 and 30 feet (custom lifts available). Regardless of how harsh the environment, the Jet® L-100 series hand chain hoist is engineered to perform.
-
BrandJET®
-
UPC662755103087
-
Manufacturer Part NumberJT9-101200
-
CountryUSA
-
Load Capacity0.25 ton
-
Pull to Lift Rated Load42 lb
-
Minimum Between Hooks9-13/16 in
-
TypeSingle Reeved
-
SeriesL-100
-
Brake TypeDual Pawl Weston
-
Lifting Height10 ft
- Weston style dual pawl brake system- double pawl design increases safety
- Alloy steel hooks industrial rated hooks rotate 360 deg for easy rigging
- Hooks slowly stretch to indicate an overload situation increasing jobsite safety
- Sealed ball bearing design increases efficiency and promotes smear operation
- Cast steel safety latches increased durability with heavy duty safety latches secured with allen screws and lock nuts
- Heat treated load plates, case hardened and corrosive resistant coated internal parts extend the life of the hoist in the harshest of environments
- Grade 100 load chain corrosive resistant grade 100 load chain is stronger than grade 80 load chain extending the life of the hoist
- All steel construction impact resistant covers that provide durability and protection
- Compact design smaller body and lightweight design for low headroom applications and use in confined areas
- Certification- load tested to 125% of capacity with certificate
- 18 ft chain overhaul
| Competitor Name | Cross-Reference Number |
|---|---|
| Fastenal | 0552256 |
-
Alternative Part Number101200
-
UNSPSC24101602
-
Standards/ApprovalsANSI/ASME B30.16
-
Owners/User Manual
-
Specification Sheet
