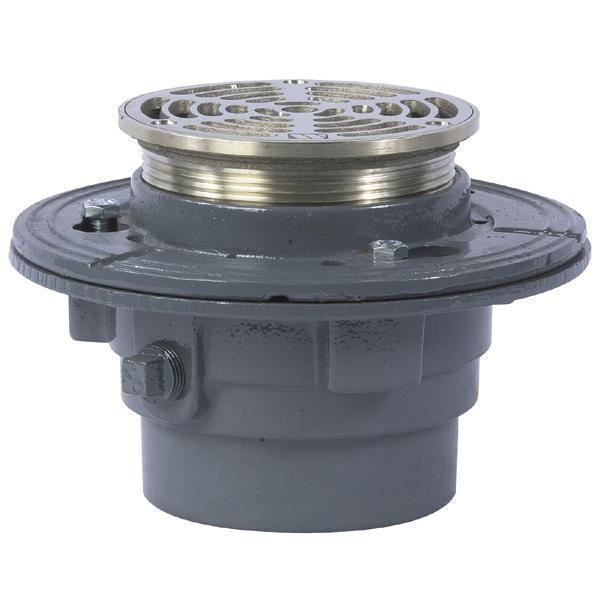

WATTS® FD-104P-A5 Floor Drain, 4 in Outlet, Compression Gasket Connection, 13/16 x 3-1/4 in Nickel Bronze Grid, Cast Iron Drain, Import
This Watts Drains epoxy coated, cast iron floor drain is designed for finished floor areas. It features a 5 inch round, adjustable, heel-proof, nickel bronze strainer, reversible clamping collar with primary and secondary weepholes, anchor flange and 4 inch push on connection. This item carries a medium duty load rating.
-
BrandWATTS®
-
UPC098268030761
-
Manufacturer Part NumberFD-104P-A5
-
CountryUSA
-
FinishEpoxy Coated
-
Grid MaterialNickel Bronze
-
Grid Size13/16 x 3-1/4 in
-
Connection TypeCompression Gasket
-
SeriesFD-100-A
-
Dimensions8-1/8 in L
-
Domestic/ImportImport
-
Drain MaterialCast Iron
-
Outlet Size4 in
- Medium load rating
- 8 sq-in free area
-
UNSPSC30181605
-
Package DescriptionEACH
-
Standards/ApprovalsASME A112.21.1M|ASSE Listed|BAA Compliant|cCSAus Certified|FM Approved|NSF Approved|UL Listed|ULC|USC Certified|Water Quality® Association|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
WarrantyLimited
-
Warranty Information
-
Specification Sheet
