Spiraduct 2"-ID EPDM KANAFLEX SUCTION HOSE SPI TSD-200

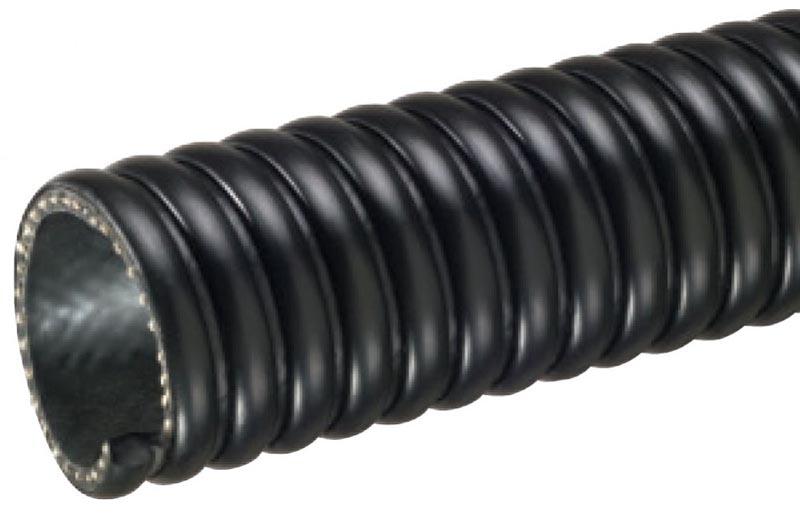

Tigerflex® TSD200X100 TSD Heavy Duty Suction Hose, Hose End Style, 100 ft L, 75 psi Working, EPDM Tube, Domestic
-
BrandTigerflex™
-
UPC822353120361
-
Manufacturer Part NumberTSD200X100
-
CountryUSA
-
Temperature Rating-40 to 71 deg F
-
MaterialEPDM Tube
-
ColorBlack
-
TypeHeavy Duty
-
SeriesTSD
-
Working Pressure75 psi
-
Inside Diameter2 in
-
Domestic/ImportDomestic
-
Outside Diameter2.54 in
-
Length100 ft
-
End StyleHose
- Cold-Flex materials hose remains flexible in sub-zero temperatures
- Convoluted outer cover provides increased hose flexibility
- Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces and around corners
- Easy-to-handle
- Designed with high tensile strength polyester yarn jacket to handle both suction, and higher pressure discharge applications
- Tigerflex uses only the best available EPDM compounds, which provide the ideal combination of light-weight, flexibility, durability and chemical resistance
-
Package DescriptionEACH
-
Standards/Approvals2002/95/EC
-
Catalog
-
Specification Sheet
-
Service Manual
