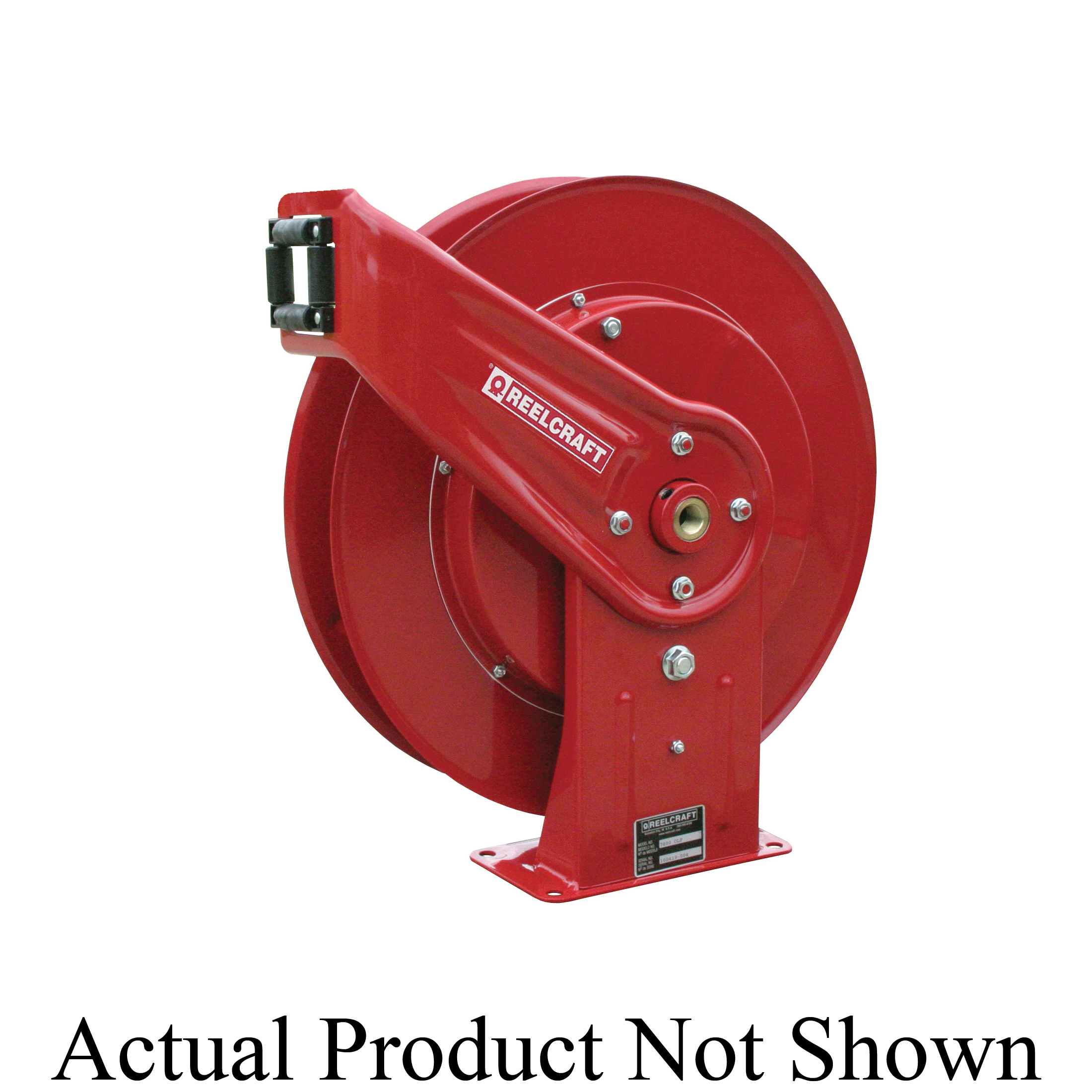

Reelcraft® UR7800 OLB Heavy Duty Low Pressure Open Style DEF Hose Reel, 0.5 in ID x 0.844 in OD x 50 ft L Hose, 500 psi Pressure, 19-3/4 in Dia x 3-7/8 in W Reel, Domestic
Series 7000 is very robust and ideal for the most demanding applications. The reel's base and guide arm are formed from high-grade steel engineered with structural forms and gussets to yield the greatest amount of strength. The standard low pressure hose is for air or water service only. The basic reel without hose can be used for air, water or oil. Guide arm adjusts to three positions.
-
BrandReelcraft®
-
UPC699567021452
-
Manufacturer Part NumberUR7800 OLB
-
CountryUSA
-
FinishPowder Coated
-
MaterialStainless Steel
-
Pressure Rating500 psi
-
Reel Diameter19-3/4 in
-
Reel Width3-7/8 in
-
ColorRed
-
TypeHeavy Duty Low Pressure Open Style
-
SeriesUR 7000
-
Hose Capacity0.5 in ID x 0.844 in OD x 50 ft L
-
Dimensions19-3/4 in W x 7 in D x 20-1/4 in H
-
Domestic/ImportDomestic
-
Drive TypeRetractable Spring
- Reinforced steel - the steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight
- DEF rated fluid path - reels are equipped with a special stainless steel fluid path and hose to handle the dispensing of DEF
- Long life drive spring - declutching arbor virtually eliminates possibility of spring damage due to reverse winding of reel spool
- Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
- Quality finish and corrosion resistant - individually powder coated components offer the maximum protection from premature corrosion
- Top wind guide arm position
- Fluid path stainless steel reel
- Hose sold separately
-
UNSPSC40142022
-
Package Description1/PK
-
