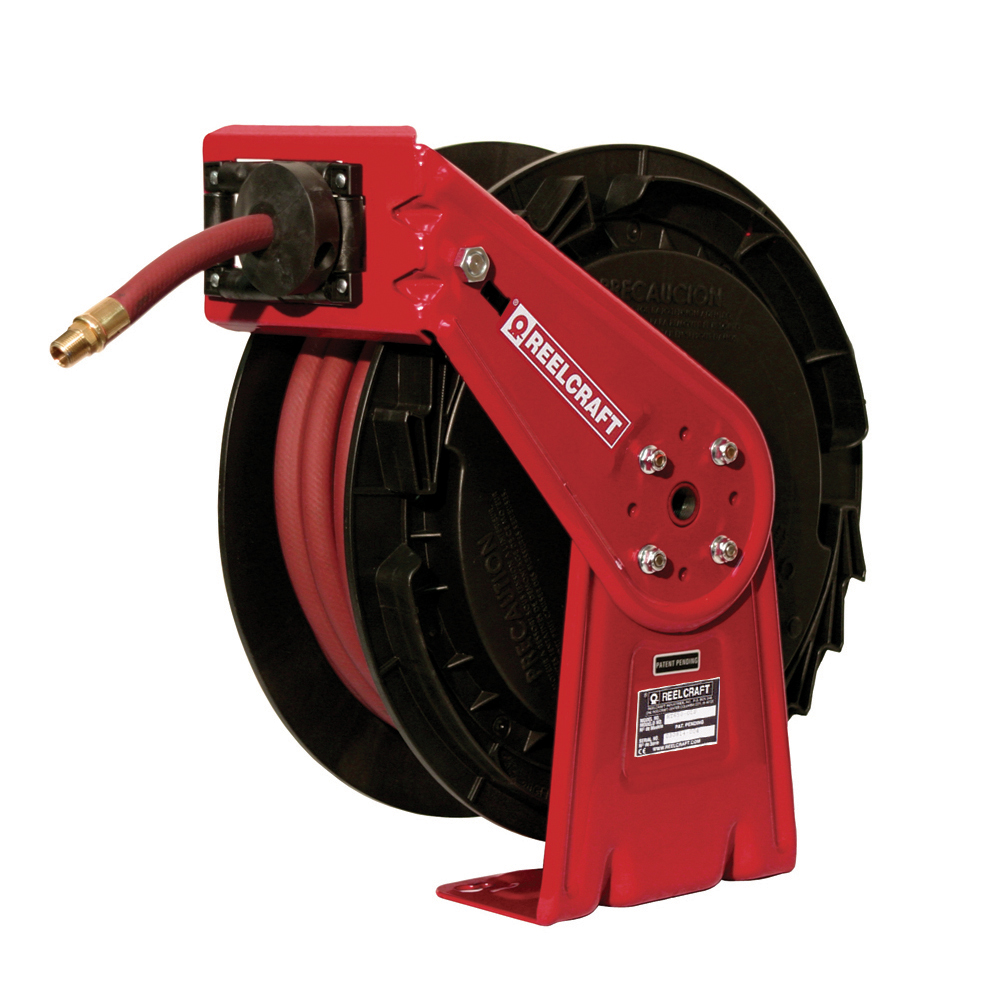

Reelcraft 1/2" X 50' SPRING DRIVEN HOSE REEL REC RT-850-OLP
The RT series is an economical choice for a medium duty, lighter weight, spring-driven hose reel for applications that are less demanding, yet require a product that can withstand industrial and commercial use. The industrial grade drive spring is protected from the environment in a polypropylene spool for longer service life. Guide arm adjusts to seven positions.
-
BrandReelcraft®
-
UPC699567000082
-
Manufacturer Part NumberRT850-OLP
-
CountryUSA
-
FinishPowder Coated
-
MaterialReinforced Stainless Steel
-
Pressure Rating300 psi
-
Reel Diameter16-1/2 in
-
Reel Width2-1/4 in
-
ColorBlack/Red
-
TypeLow Pressure Medium Duty
-
Mounting TypeBench/Ceiling/Floor/Truck/Wall
-
Seal TypeBuna-N
-
SeriesRT Series
-
Hose Capacity1/2 in ID x 3/4 in OD x 50 ft L
-
Dimensions17-7/8 in H x 16-1/2 in W x 6-1/4 in D
-
Domestic/ImportDomestic
-
Drive TypeRetractable Spring
-
Swivel MaterialNickel Plated Steel
- Steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight
- Full flow stress free swivel design - full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
- Hose is plumbed into the base to eliminate the risk of undue stress on the swivel
- Declutching arbor eliminates reverse spring winding and torsions latch spring is virtually unbreakable
- High quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
- Individually powder coated components along with the composite spool offers the maximum protection from premature corrosion
- 1/2 in female NPTF inlet
- 1/2 in male NPTF outlet
- 150 deg F maximum temperature rating
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 263D65 |
-
UNSPSC40142022
-
Package Description1/PK
-
Standards/ApprovalsPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
-
Instruction/Installation Manual
