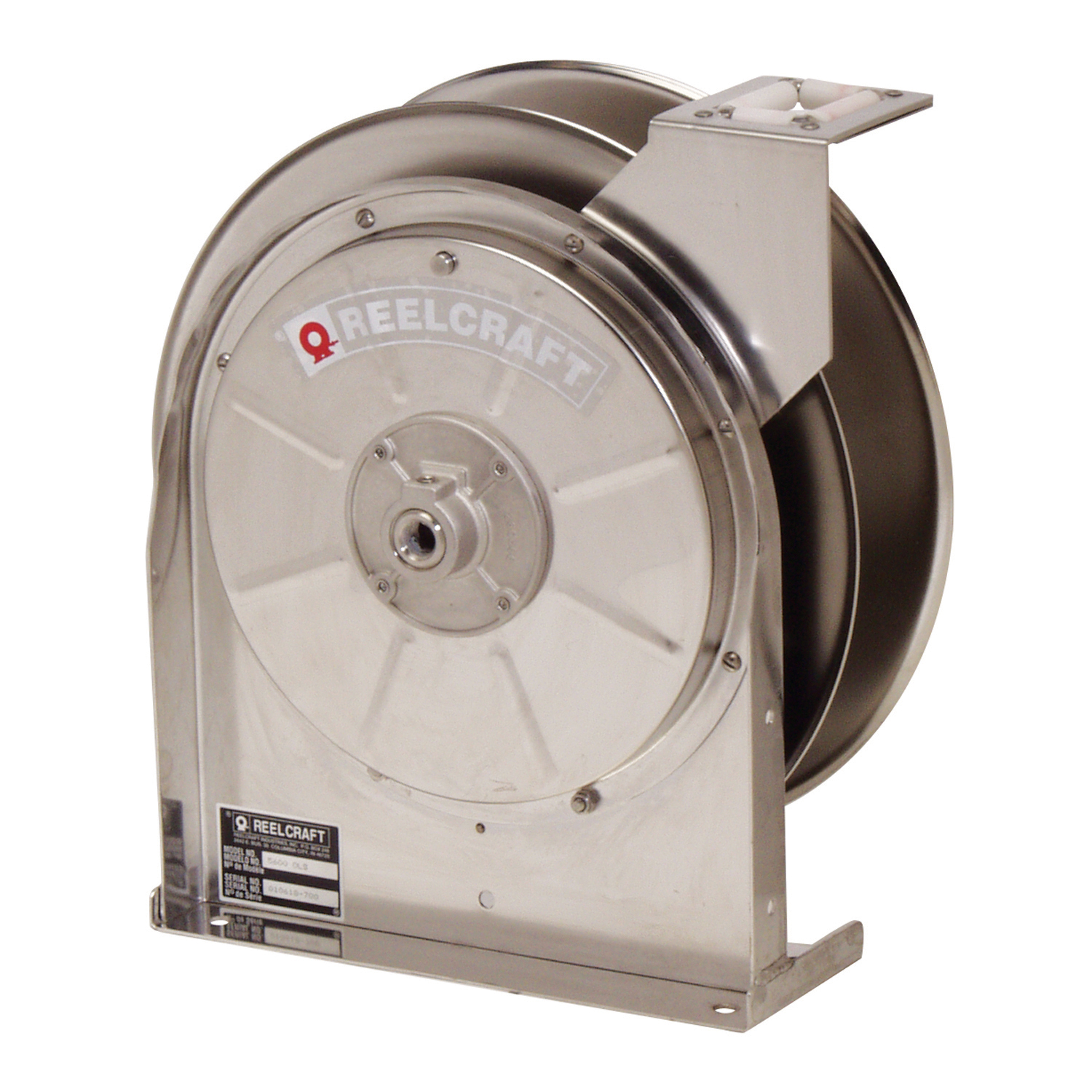

Reelcraft 3/8" X 35' S/S HOSE REELS REC 5600-OLS
Reelcraft's stainless steel hose reels are ideal for food processing, pre-rinse, wash down, chemical transfer, and industrial-solvent handling. Also suitable for coastal, offshore and on-board ship in marine applications where the harsh salt water spray environment requiring stainless steel reels.
-
BrandReelcraft®
-
UPC699567013099
-
Manufacturer Part Number5600 OLS-S
-
CountryUSA
-
FinishPowder Coated
-
MaterialStainless Steel
-
Pressure Rating500 psi
-
Reel Diameter14 in
-
Reel Width2-1/2 in
-
ColorSilver
-
TypeFull Flow Swivel
-
Mounting TypeCeiling/Floor/Truck Bed/Wall
-
Seal TypeViton®
-
Series5000
-
Hose Capacity3/8 in ID x 0.6 in OD x 35 ft L
-

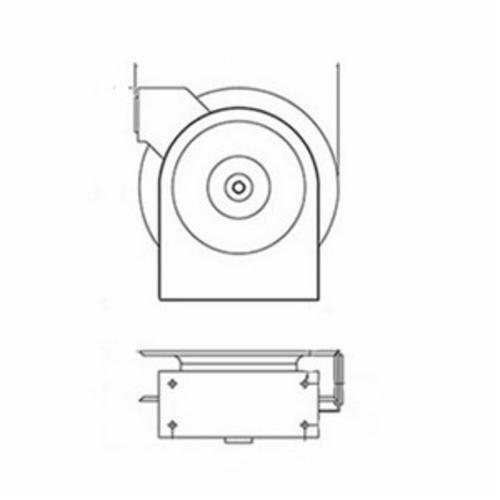

Dimensions13-3/4 in L x 6 in W x 14-1/2 in H
-
Domestic/ImportDomestic
-
Drive TypeSpring
-
Swivel MaterialStainless Steel
- Reinforced steel - the robotically steel base offers maximum strength and consistent quality
- Full flow stress free swivel design - the full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
- The hose is plumbed into the base to eliminate the risk of undue stress on the swivel
- Long life drive spring - declutching arbor virtually eliminates possibility of spring damage due to reverse winding
- Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
- Quality finish and corrosion-resistant - stainless steel components offer the maximum protection from premature corrosion
- 3/8 in female NPTF inlet
- 3/8 in female NPTF outlet
- 210 deg F maximum temperature rating
- Without hose
-
UNSPSC40142022
-
Package Description1/PK
-
Standards/ApprovalsPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
-
