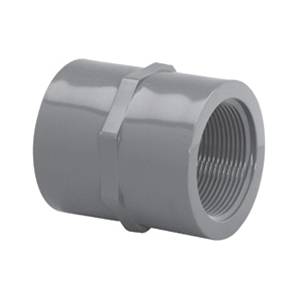

NIBCO® 830-030, 3 in nominal, FNPT end style, SCH 80/XH, PVC, Domestic
NIBCO® 830-030, 3 in nominal, FNPT end style, SCH 80/XH, PVC, Domestic
-
BrandLasco®
-
UPC025528720636
-
Manufacturer Part Number830-030
-
CountryUSA
-
MaterialPVC
-
Fitting/Connector TypeCoupling
-
Method of ManufactureInjection-Molded
-
ColorGray
-
Schedule RatingSCH 80/XH
-
Nominal Size3 in
-
Domestic/ImportDomestic
-
Length2-3/4 in
-
End StyleFNPT
- ASTM D-1784: Rigid poly vinyl chloride (PVC) compounds and chlorinated poly vinyl chloride (CPVC) compounds
- ASTM D-2464: Threaded poly vinyl chloride (PVC) plastic pipe fittings SCH 80/XH
- NSF/ANSI standard 61, Annex G: Drinking water system components weighted average lead content of less than or equal to 0.25% and is in compliance with California's health and safety code section 116875 (commonly known as AB1953) NSF/ANSI Standard 14: Plastics piping system components and related materials, includes ANSI standard 61, Annex G
- Do not use Lasco® fittings for compressed air or gases
- Do not test PVC piping systems with compressed air or gases
- Do not use fittings with liquids not recommended by Lasco®
- Fitting modification voids the warranty
-
UNSPSC40172608
-
Package Description5/CT
-
Standards/ApprovalsASTM D1784|ASTM D2464|NSF/ANSI 14|NSF/ANSI 61|Annex-G
-
Catalog
-
Specification Sheet
