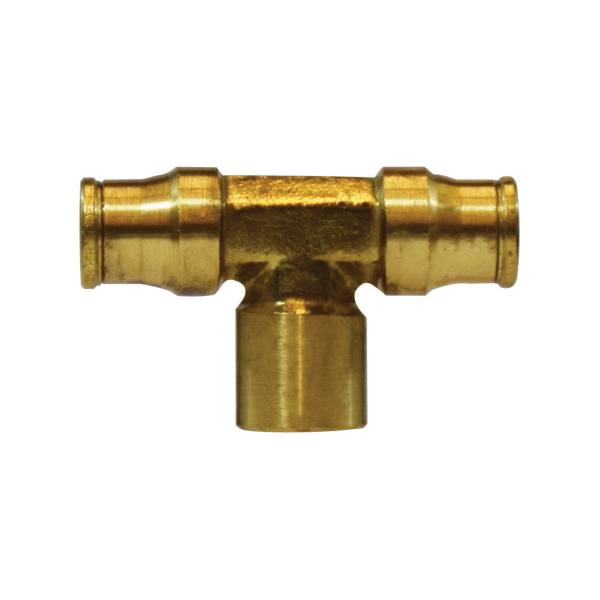

HCI Preferred Supplier 20132 Branch Tee, 3/8 x 3/8 x 1/4 in Nominal, Push-In x Push-In x FNPTF End Style, Brass
HCI Preferred Supplier 20132 Branch Tee, 3/8 x 3/8 x 1/4 in Nominal, Push-In x Push-In x FNPTF End Style, Brass
-
BrandGeneric
-
Manufacturer Part Number20132
-
CountryUSA
-
Temperature Rating-10 to 200 deg F
-
MaterialBrass
-
Fitting/Connector TypeTee
-
Nominal Size3/8 x 3/8 x 1/4 in
-
End StylePush-In x Push-In x FNPTF
- Quick connect, simply push tubing in, no tools, saves up to 75% of assembly time of standard compression fittings
- Quick disconnect, hold two fingers on insert and pull tubing out, no tools required
- Reuseable, connect and disconnect numerous times
- Full flow design, provides up to 60% more flow area than conventional fittings with internal tube supports
- Versatile, BunaN O-rings standard
- Secure tube retention, pulling on tubing only serves to tighten the connection
- Self contained assembly, no loose parts, brass body and insert
- Brass construction, elbows and tees are forged brass
- Choice of convenient swivel of economical stationary elbows and tees
- Straight connectors have interior hex for allen key tightening where space is limited, no need to use a wrench
- Pre-applied teflon® based pipe sealant on all male pipe threads, saving customer additional labor
- Working pressure - the fitting is suitable for use up to the maximum working pressure of the plastic tubing used
- Pipe thread: NPTF with teflon® based sealant pre-applied
- 0.50 in body size
- /- 0.02 on all dimensions
-
UNSPSC40183102
-
Package Description1/PK
-
Full Engineering Drawing
