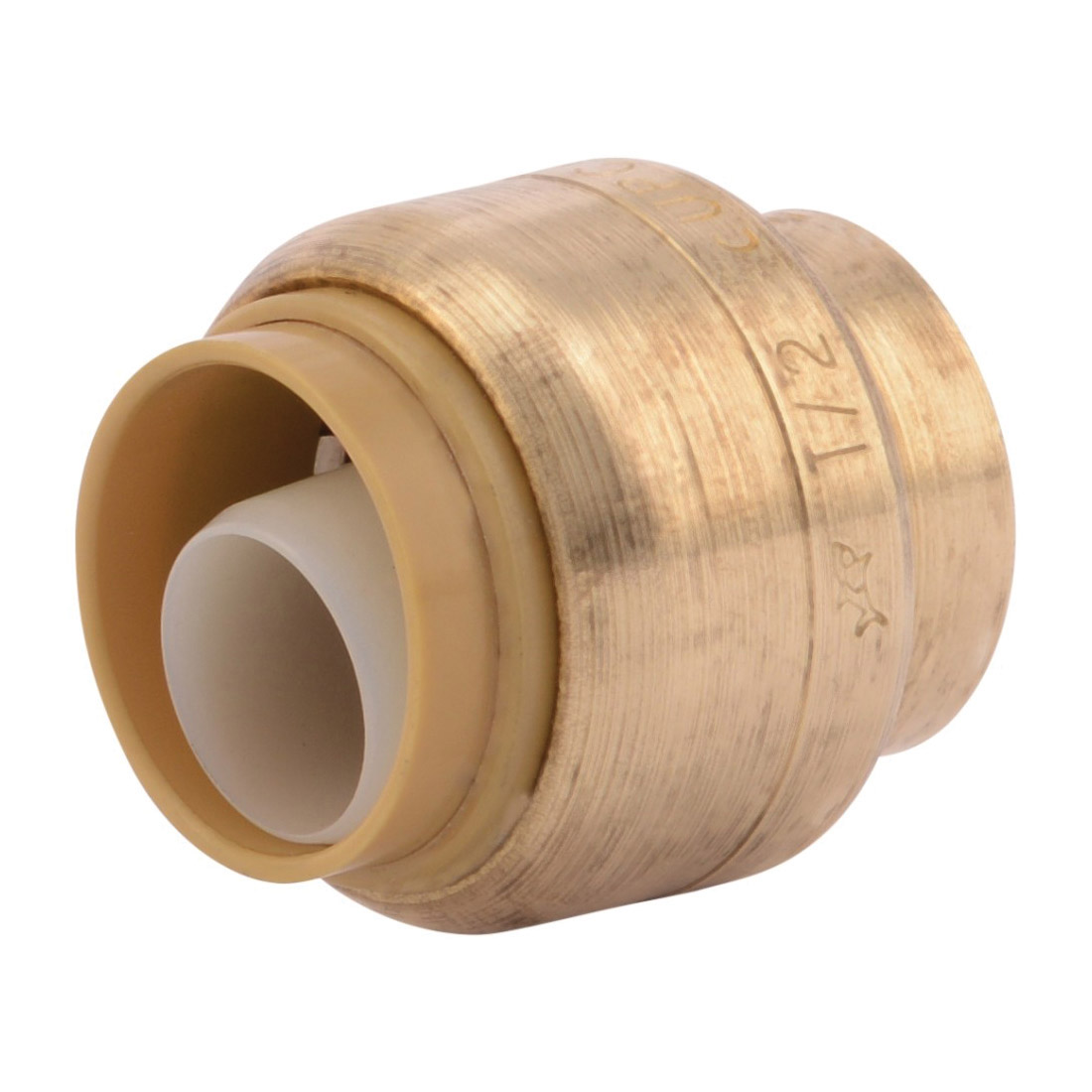

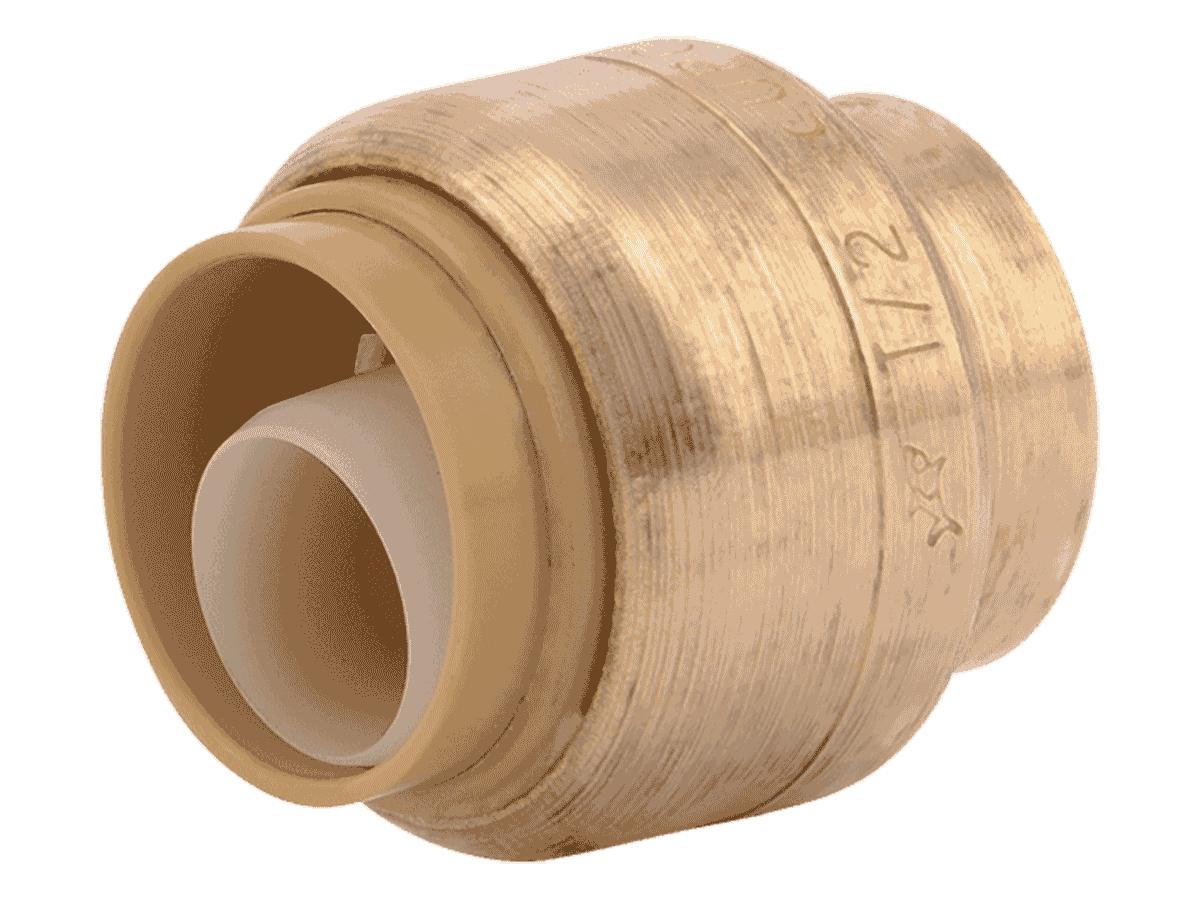

Sharkbite® U514LF Pipe End Cap, 1/2 in Nominal, Push-Fit End Style, Brass, Import
SharkBite® End Caps are push-to-connect and are the easiest way to cap off your Copper, PEX, CPVC or PE-RT pipe lines. There is no soldering, clamps, unions or glue required. These fittings are great for stub outs and pressure testing a home as they take no time to cure. They are easily removed with a Disconnect Clip. All SharkBite® fittings are capable of being installed on either wet or dry pipe. This product is rated for up to 200 psi and 200 deg F.
-
BrandSharkbite®
-
UPC697285072169
-
Manufacturer Part NumberU514LF
-
CountryUSA
-
Temperature Rating200 deg F
-
FinishNatural Brass/Polished Chrome
-
MaterialBrass
-
Fitting/Connector TypeCap
-
Pressure Rating200 psi
-
Nominal Size1/2 in
-

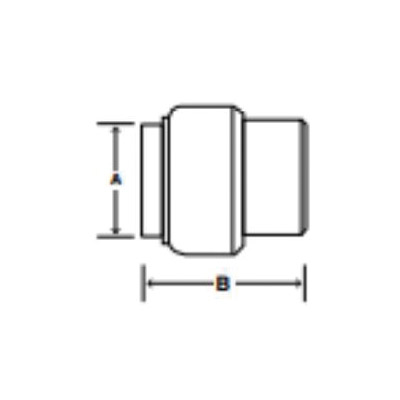

Dimensions1.08 in L
-
Domestic/ImportImport
-
End StylePush-Fit
- Instant push-fit connection for increased ease-of-use: no soldering, clamps, unions or glue required
- Fittings certified to 200 psi and 200 deg F (93 deg C) - Proven durability and quality
- Fits copper tubing and CTS CPVC and PEX - Connects all three types in any combination
- Integral pipe liner for PEX installations - Integrated design means no loose components, ensures secure, reliable connection
- Design certified and agency listed inspector friendly, peace of mind
- Compact, robust lead free DZR brass body: Foundation of a strong, corrosion resistant, durable fitting
- Design certified to NSF/ANSI 61, NSF/ANSI 14 and ASSE 1061 product standard for used in potable water and hydronic heating water distribution quality engineered and manufactured
- Approved to be used underground and behind walls without access panels
- Designed for hydronic heating as well as potable water distribution
- EPDM O-ring
- Stainless steel grab ring
- Polysulfone tube support liner
- Potable water service
- For use with copper, CPVC and pex pipe
- 0.938 in D insertion
-
UNSPSC40172401
-
Package Description12/BG
-
Standards/ApprovalsASSE 1061|CSA B125.3|IAPMO Listed|IPC and cUPC Listed|NSF/ANSI 372-2010/14/61
-
Warranty25 years Limited
-
Warranty Information
-
Specification Sheet
-
Catalog
-
Instruction/Installation Manual
