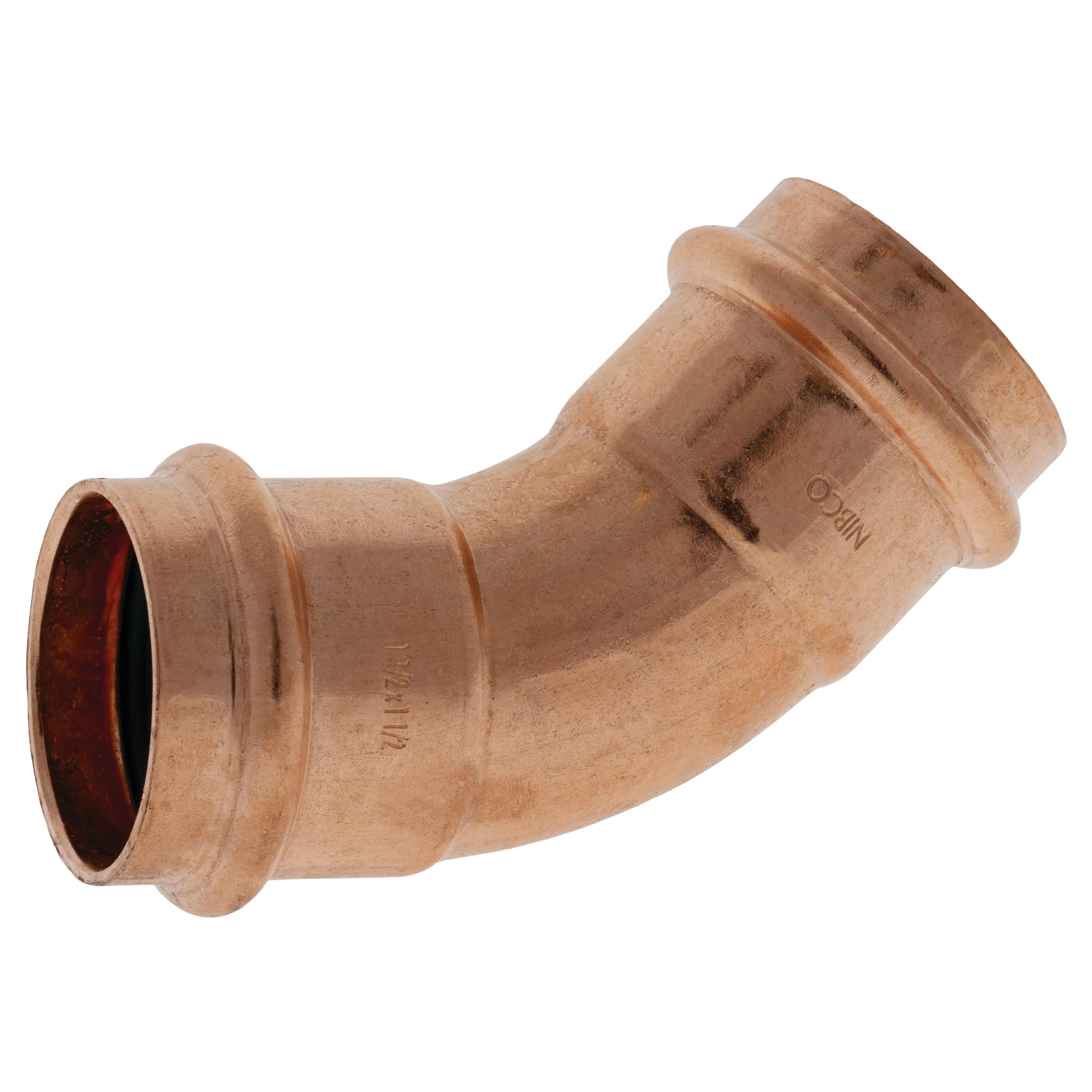

NIBCO® Press System® 9043200PC PC606 Elbow, 1-1/2 in Nominal, Press End Style, Wrot Copper, Domestic
The NIBCO® Press System® copper 45-degree elbow features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux. The elbow has press connections. The fitting provides a method of changing the pipeline direction by 45 degrees.
-
BrandNIBCO®
-
UPC039923307798
-
Manufacturer Part Number9043200PC
-
CountryUSA
-
Temperature Rating-20 to 250 deg F
-
MaterialWrot Copper
-
Fitting/Connector Type45 deg Elbow
-
Pressure Rating200 psi
-
TypeSmall Diameter
-
Nominal Size1-1/2 in
-
SeriesPC606
-
Domestic/ImportDomestic
-
End StylePress
- Select configurations to 300 psi cwp
- Dezincification resistant
- EPDM O-ring
- Silicone lubrication
- Hot water up to 250 deg F, chilled water down to 33 deg F
- Approved for underground installation (per local installation code)
- Use with hard/soft ASTM B88 K, L and M copper tube
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | NPC606LDJ |
-
UNSPSC40183101
-
Package Description1/BX
-
Standards/ApprovalsASME B16/51|ASTM B75 Alloy C12200 Copper|CSA MSE 13/PS-117|UPC Listed
-
WarrantyLimited
-
SDS
-
Warranty Information
-
Instruction/Installation Manual
-
Catalog
