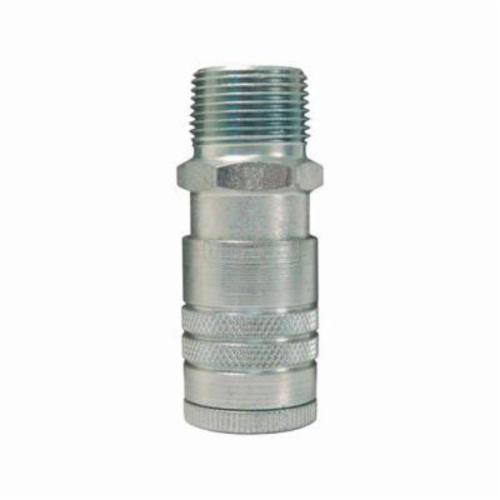

Dixon® DC903 Air Chief Industrial Automotive Male Quick Connect Coupler, 3/8-18 Nominal, Quick Connect Coupler x NPTF, 300 psi Pressure, Steel, Domestic
Dixon® DC903 Air Chief Industrial Automotive Male Quick Connect Coupler, 3/8-18 Nominal, Quick Connect Coupler x NPTF, 300 psi Pressure, Steel, Domestic
-
BrandDixon®
-
Manufacturer Part NumberDC903
-
CountryUSA
-
Temperature Rating-40 to 250 deg F
-
MaterialSteel
-
Pressure Rating300 psi
-
TypeAir Chief Industrial Automotive
-
Nominal Size3/8-18
-
Hex Size1 in
-
SeriesF Series
-
Dimensions1.19 in OD
-
Domestic/ImportDomestic
-
Length2.97 in
-
End StyleQuick Connect Coupler x NPTF
- Semi-automatic- pull sleeve to connect
- Couplers shut-off when disconnected
-
UNSPSC40172600
-
Package Description10/BX
-
Standards/ApprovalsMIL-C-4109F/A-A-59439
-
WarrantyLimited
-
