• Bore Diameter (Inner Shaft Washer d): 45 mm (1.7717 in)
• Outside Diameter (Housing Washer D): 65 mm (2.5591 in)
• Overall Height/Width (T): 14 mm (0.5512 in)

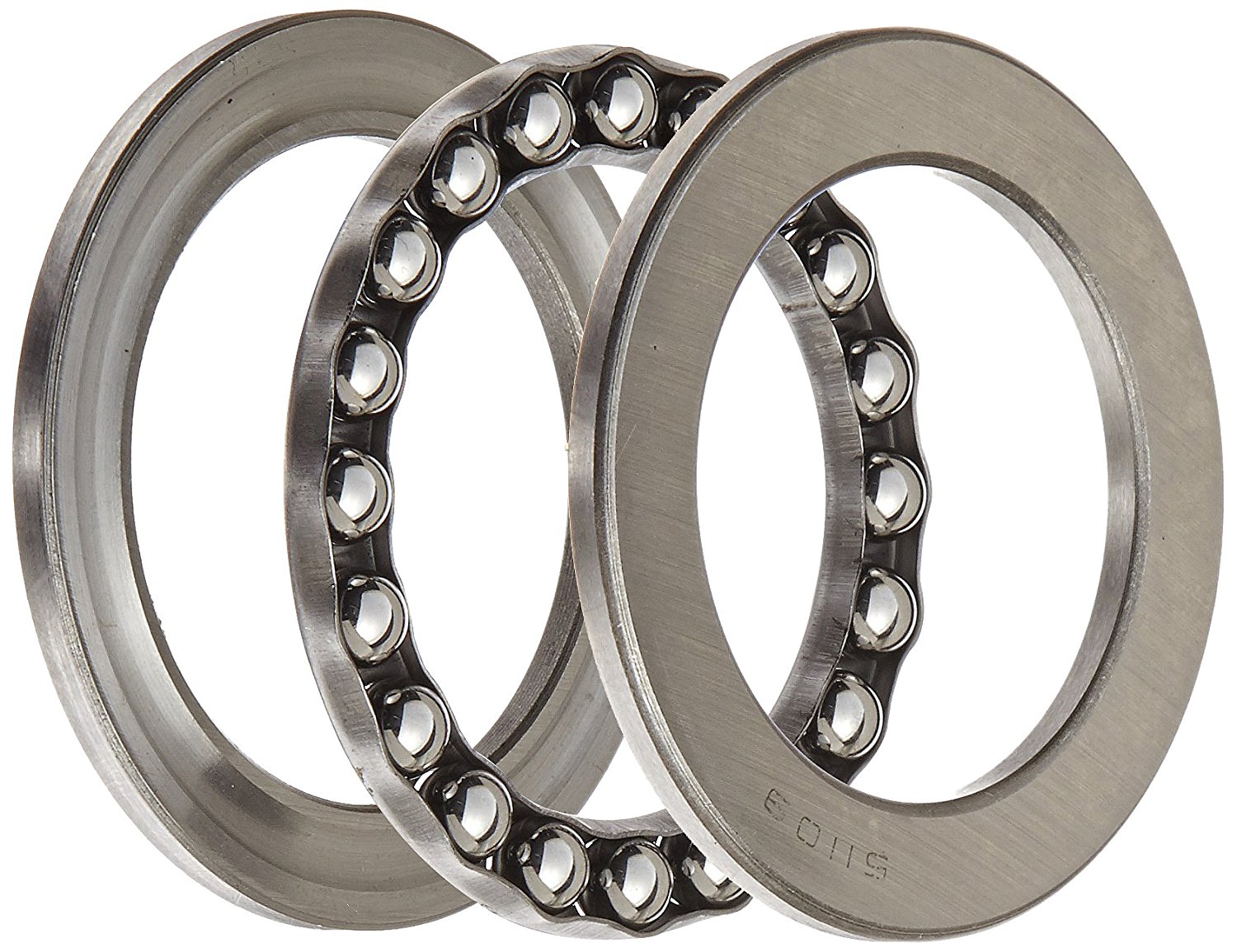

• Component Composition: Separable 3-piece kit consisting of:
• 1x Shaft Washer: (Tight bore tolerance to grip the rotating shaft)
• 1x Housing Washer: (Slightly larger clearance bore to sit loosely/stationary in the housing)
• 1x Pressed Steel Ball & Cage Assembly
• Basic Dynamic Load Rating (\(C_{a}\)): ~27,900 N to 34,800 N
• Basic Static Load Rating (\(C_{0a}\)): ~69,100 N
• Limiting Speed (Grease): 3,200 RPM
• Limiting Speed (Oil): 5,000 RPM
