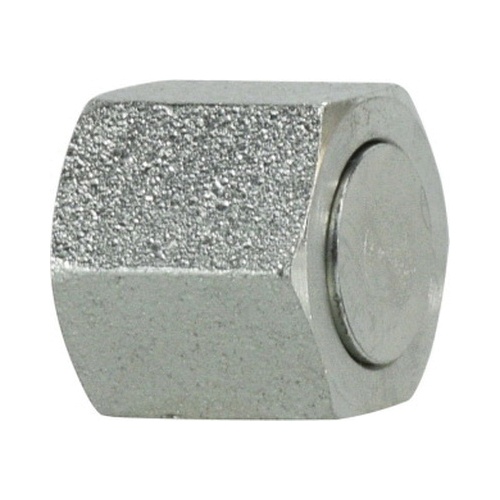

HCI Preferred Supplier FSO304C16 Cap, 1 in x 1-7/16-12, Tube x ORFS, Steel

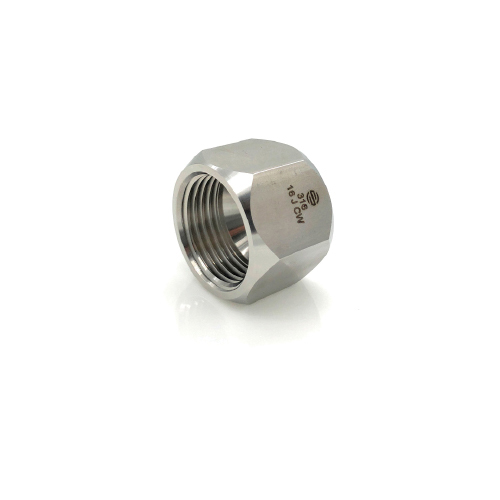

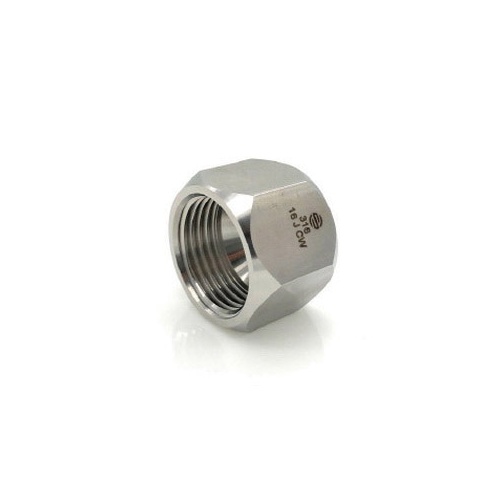

Developed for industrial and mobile hydraulic circuits, the SS304-C-16 1in JIC cap is machined from premium 316 stainless steel for superior corrosion resistance. Its precision-cut threads promote secure engagement and leak-tight sealing in high-pressure hydraulic systems. Commonly specified for chemical processing systems, it ensures dependable sealing even under vibration and thermal cycling. By combining material strength with dimensional accuracy, this adapter supports long-term performance in challenging service conditions.
-
BrandGeneric
-
Manufacturer Part NumberFSO304C16
-
CountryUSA
-
Temperature Rating1000 deg F
-
MaterialSteel
-
Pressure Rating2000 psi
-
Nominal Size1 in x 1-7/16-12
-
Hex Size1-1/2 in
-
Length1.015 in
-
End StyleTube x ORFS
-
Fitting/Connector TypeCap
- O-ring face seal fittings include a precision groove in the face of the male fitting
- Sealing occurs when an o-ring is trapped in the groove by a smooth flat flange that is clamped against the face with a nut or nut and sleeve
- Flat flange may be formed or brazed onto the end of a tube, or is machined on a fitting
- Two type SAE grooves are Type A the original style A o-ring has no retaining ledge, the type B groove has a retaining ledge (half dovetail) that improves o-ring retention
- Type B style is more commonly found and is a design improvement over the type A
- Two piece nut/insert construction
-
UNSPSC27112800
-
Standards/ApprovalsSAE 520112
-
Package Description1/PK
-
