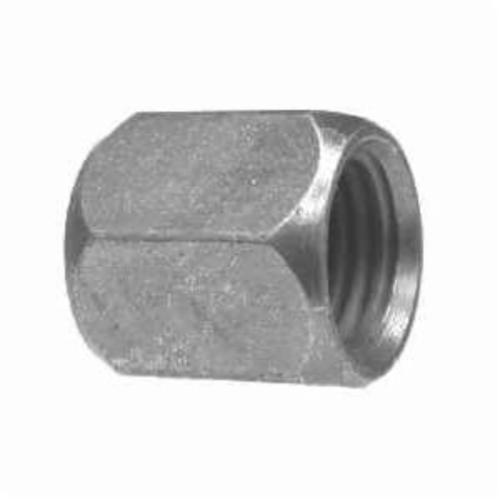

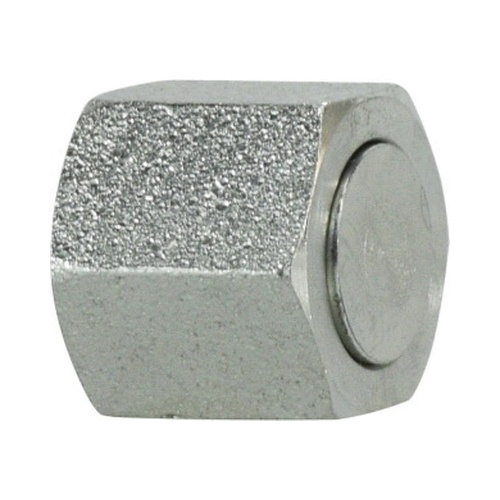

Cap, 5/8 in x 1-14, Tube x ORFS, Steel
Cap, 5/8 in x 1-14, Tube x ORFS, Steel
-
BrandGeneric
-
Manufacturer Part NumberFSO304C10
-
CountryUSA
-
MaterialSteel
-
Fitting/Connector TypeCap
-
Nominal Size5/8 in x 1-14
-
End StyleTube x ORFS
- O-ring face seal fittings include a precision groove in the face of the male fitting
- Sealing occurs when an o-ring is trapped in the groove by a smooth flat flange that is clamped against the face with a nut or nut and sleeve
- Flat flange may be formed or brazed onto the end of a tube, or is machined on a fitting
- Two type SAE grooves are Type A the original style A o-ring has no retaining ledge, the type B groove has a retaining ledge (half dovetail) that improves o-ring retention
- Type B style is more commonly found and is a design improvement over the type A
- Two piece nut/insert construction
-
UNSPSC27112800
-
Package Description1/PK
-
Standards/ApprovalsSAE 520112
-
