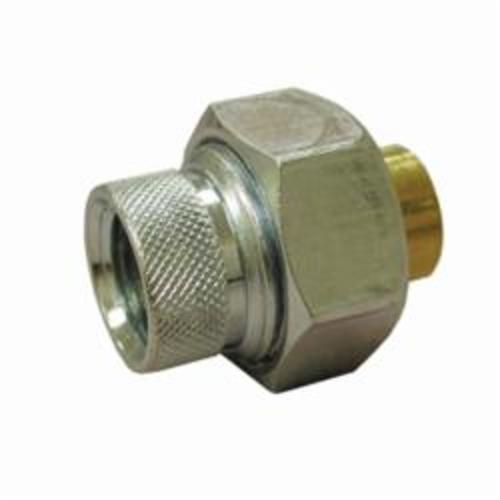

Jones Stephens™ D06200 Dielectric Union, 2 in, FNPT x Solder, Forged Steel, Domestic
Jones Stephens™ D06200 Dielectric Union, 2 in, FNPT x Solder, Forged Steel, Domestic
-
BrandJones Stephens™
-
UPC717510062229
-
Manufacturer Part NumberD06200
-
CountryUSA
-
Temperature Rating180 deg F
-
FinishZinc Plated
-
MaterialForged Steel
-
Pressure Rating250 psi
-
Nominal Size2 in
-
Dimensions2-1/8 in OD
-
Domestic/ImportDomestic
-
Length2-7/8 in
-
End StyleFNPT x Solder
- Zinc plated forged steel
- Prevents electrolysis or galvanic action when connecting dissimilar metals
- Residential or commercial use
- Solder ends conform to ANSI B16.19
- EPDM washer, ABS fiber sleeve
- Threads conform to ASNI B2.1
- Pressure rated at 250 psi at 180 deg F
| Competitor Name | Competitor Part Number |
|---|---|
| Ferguson | JD06200 |
-
UNSPSC40174905
-
Package Description6/CTN
-
Standards/ApprovalsANSI B16.19/ B2.1
