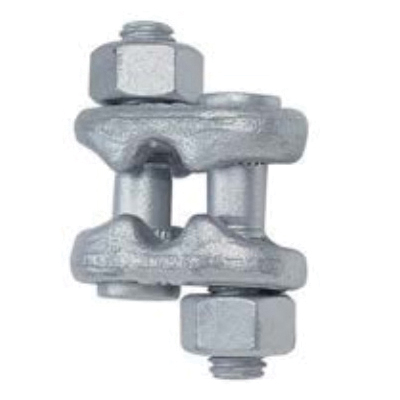

Crosby® 1010514 Fist Grip® G-429-3/8 Wire Rope Clip, 3/8 in, Forged Steel, 2 Clips, 5-1/4 in Rope Turn Back
Crosby® 1010514 Fist Grip® G-429 Wire Rope Clip, 3/8 in, Forged Steel, 2 Clips, 5-1/4 in Rope Turn Back
-
BrandCrosby®
-
UPC662547105145
-
Manufacturer Part Number1010514
-
CountryUSA
-
Cable Size3/8 in
-
FinishGalvanized
-
MaterialForged Steel
-
Minimum Number of Clips2
-
Minimum Torque45 ft-lb
-
Rope Turn Back5-1/4 in
-
SeriesFist Grip® G-429
- Entire clip is galvanized to resist corrosive and rusting action
- Based on the catalog breaking strength of wire rope
- Crosby® Wire rope clips have an efficiency rating of 80 % for 5 to 22 mm sizes and 90% for sizes 24 to 40 mm
- Bolts are an integral part of the saddle
- Nuts can be installed in such a way as to enable the operator to swing the wrench in a full arc for fast installation
- All sizes have forged steel saddles
- All clips are individually bagged or tagged with proper application instructions and warning information
- Assembled with standard heavy hex nuts
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 29WP34 |
-
UNSPSC31162813
-
Package Description50/PK
-
Standards/ApprovalsASME B30.26|Federal Spec FF-C-450 Type III Class 1
-
