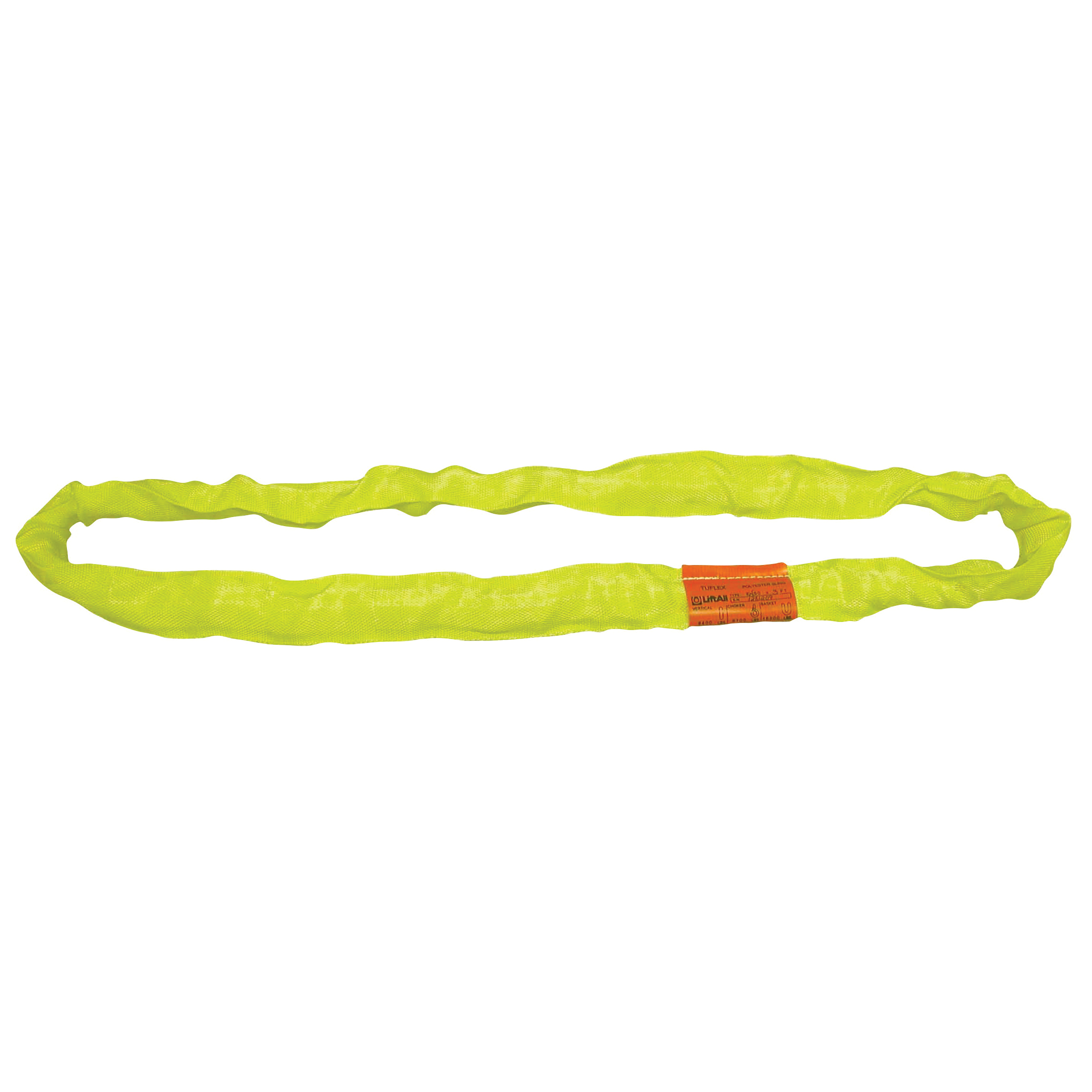

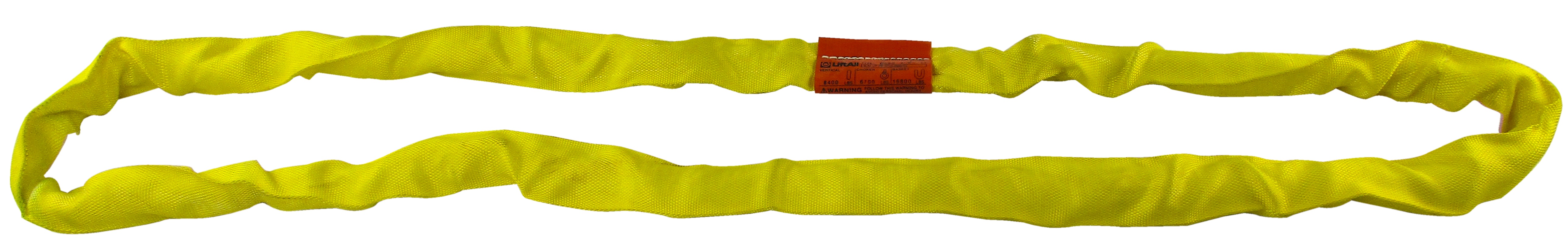

Lift-All® Tuflex™ EN90X6 Endless Round Sling, 6 ft L, 8400 lb, Polyester, Yellow
Tuflex endless roundslings are the most versitile roundsling. Tuflex roundslings are color-coded to easily identified capacities . The cover is seamless with no sewn edges, preventing rupture and allowing wear points to be shifted to extend sling life.
-
BrandLift-All®
-
UPC697886100698
-
Manufacturer Part NumberEN90X6
-
CountryUSA
-
Temperature Range-50 to 200 deg F
-
MaterialPolyester
-
Choker Hitch Capacity6700 lb
-
ResistsUV Sunlight, Grease and Most Acids
-
ColorYellow
-
TypeEndless
-
Vertical Hitch Capacity8400 lb
-
Width Under Load1-3/4 in
-
Diameter1-1/8 in
-
Basket Hitch Capacity16800 lb
-
Length6 ft
- Tuflex™ round sling is an endless synthetic sling made from a skein (continuous loop or hank) of polyester yarn covered by a double wall tubular jacket
- These durable and versatile endless slings will become your first choice for synthetic slings once you've tried them
- The round sling body can also be compared to sling webbing with the tubular jacket face yarns woven without binder yarns, this allows the core yarns to move independently within the jacket
- Low stretch (about 3 Percent at rated capacity)
- Maintains 100 Percent of original strength until jacket damage exposes core yarns
- When core yarns are visible, sling must be removed from service
- Chokes tighter, releases easier than other slings
- No strength loss from abrasion to cover
- Good for low headroom lifts
- Wear points can be shifted to extend sling life
- Light weight reduces fatigue and strain on riggers
- Replacement is not necessary until the red striped white core yarns can be seen through holes in the jacket
- Always protect synthetic slings from being cut by corners and edges
- See Sling Protection section in the Lift-All catalog
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 3KN82 |
| MSC | 89673719 |
| Fastenal | 0558697 |
-
UNSPSC24101611
-
Package DescriptionEACH
-
Standards/ApprovalsASME B30.9|OSHA Compliant
-
WarrantyLimited Liability Warranty
-
Technical Bulletin
-
Catalog
-
Instruction/Installation Manual
