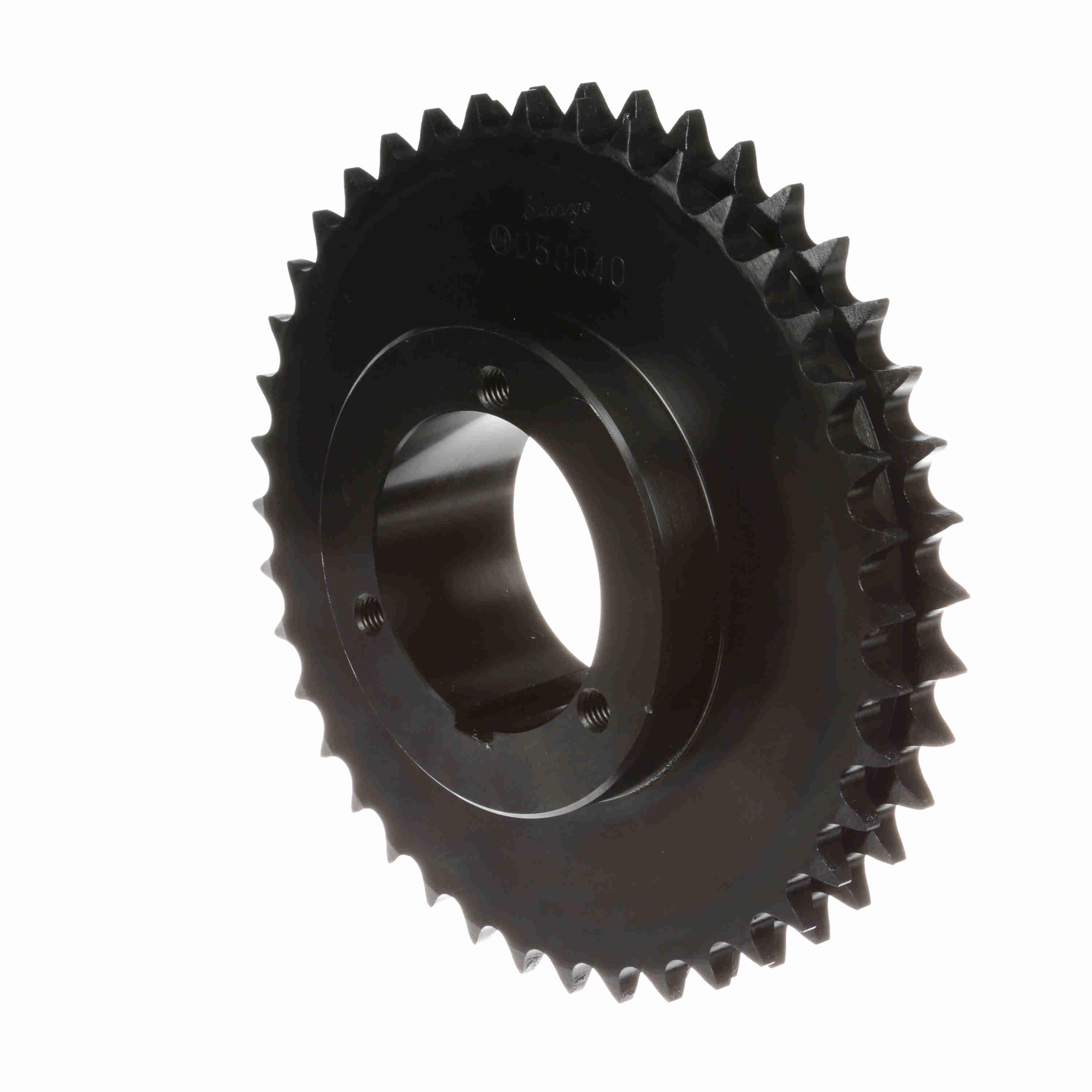

Browning 40-TOOTH #50 CHAIN DOUBLE SPROCKET BRW D-50-Q-40
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289119271
-
Manufacturer Part Number1174507
-
CountryUSA
-
Bushing TypeType Q1 Split Taper
-
Pitch5/8 in
-
Pitch Diameter7.9659 in
-
MaterialSteel
-
Chain Size50
-
TypeDouble Strand
-
Hub Diameter4-1/8 in
-
Number of Teeth40
-
Outside Diameter8.316 in
-
Length Through Bore2-1/2 in
-
Bore Diameter3/4 to 2-11/16 in
- External key have higher torque capacity, aligns bolt holes
- Provides key to key drive
- Double split barrel to improved clamping
- Solid flange true concentricity, easy installation
- Longer barrel have better support on the shaft
- For use with 5/8 in pitch ANSI roller chain
- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain
-
Alternative Part NumberD50Q40
-
UNSPSC31151603
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Catalog
