WERNER 10' 300# 1-A F/GLS MANHOLE LADDERS WER M-7110-1

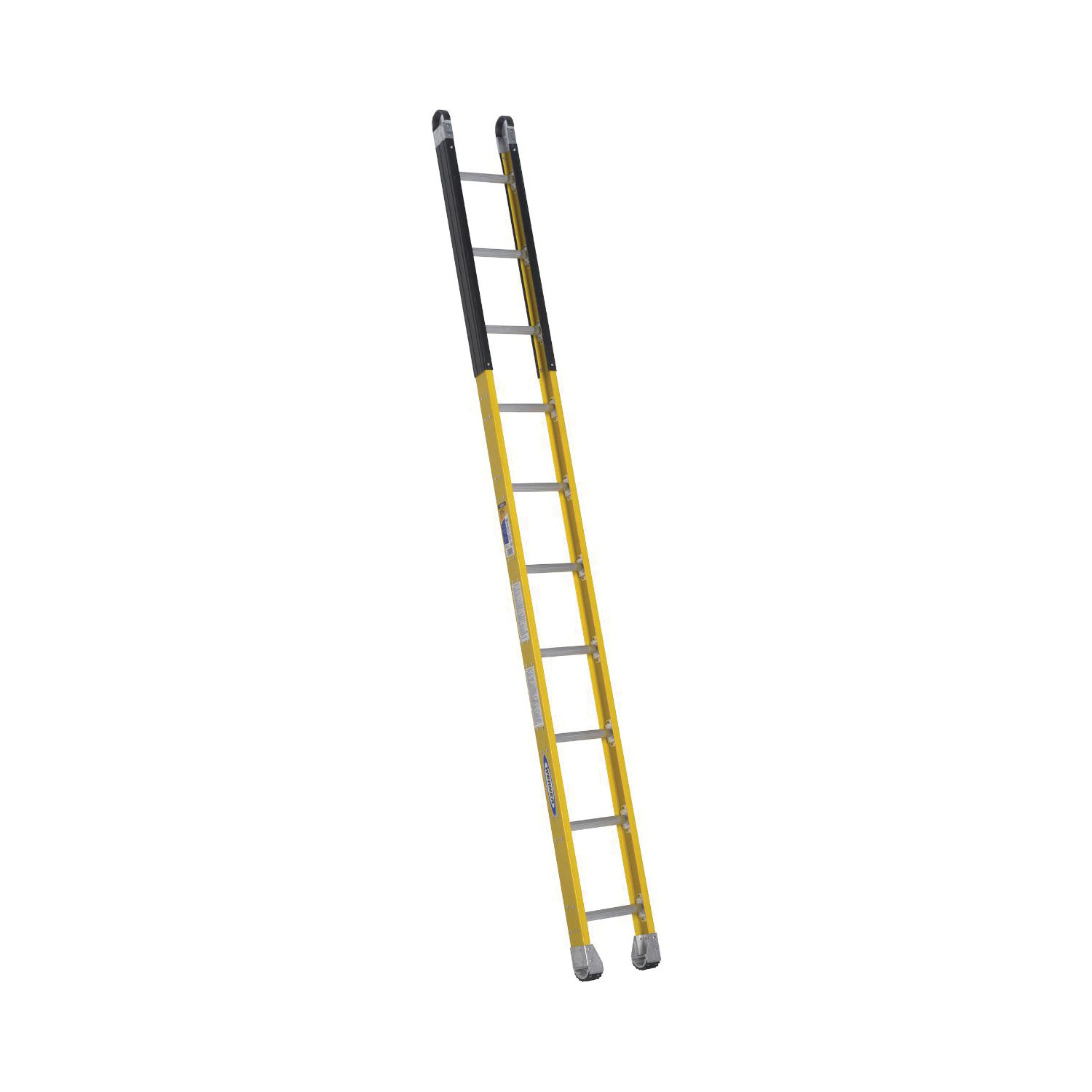

The M7110-1 manhole ladders feature 3 ft replaceable plastic sleeves that protect the upper rails from manhole damage. These sleeves increase the longevity of the ladder. The combination rail shield and shoe protects the bottom of the rails from damage. The exclusive ALFLO® rung joint means TWIST-PROOF® performance, and these ladders also have a duty rating of 375 lb. The vinyl coated aluminum hoop end caps are ideal for easily removing the ladder from the manhole. The TRACTION-TRED® round rungs are slip resistant.
-
BrandWERNER®
-
UPC051751013078
-
Manufacturer Part NumberM7110-1
-
CountryUSA
-
Load Capacity375 lb
-
MaterialFiberglass
-
Top to Bottom Rung9 ft
-
TypeSpecialty
-
Rung Diameter1-1/4 in
-
Rung Spacing12 in
-
Rung TypeRound
-
Rung Width1-1/4 in
-
Number of Rungs10
-
Overall Height10 ft
-
Overall Width12-3/8 in
- Narrow 12-3/8 in W design is ideal for special purposes like work in manholes
- Exclusive ALFLO® rung joint means TWIST-PROOF® performance
- Mar resistant, vinyl coated aluminum hoop end caps for removing ladder from manhole
- 3 ft replaceable plastic sleeves to avoid manhole rim damage to rail
- Slip resistant TRACTION-TRED® round rungs
- Combination rail shield and shoe protects bottom of rail from damage
- 1 section
- 13 ft H reach
- 10 ft L open extended and maximum working
- 10 ft L closed
- 3-5/16 in rails
- 1-3/16 in W flange
- Round 1-1/4 in rung
- Slip resistant pad
- Type IAA duty rating
| Competitor Name | Cross-Reference Number |
|---|---|
| Fastenal | 99298923 |
-
UNSPSC30191501
-
Standards/ApprovalsANSI A14.5 (2007)|OSHA Compliant
