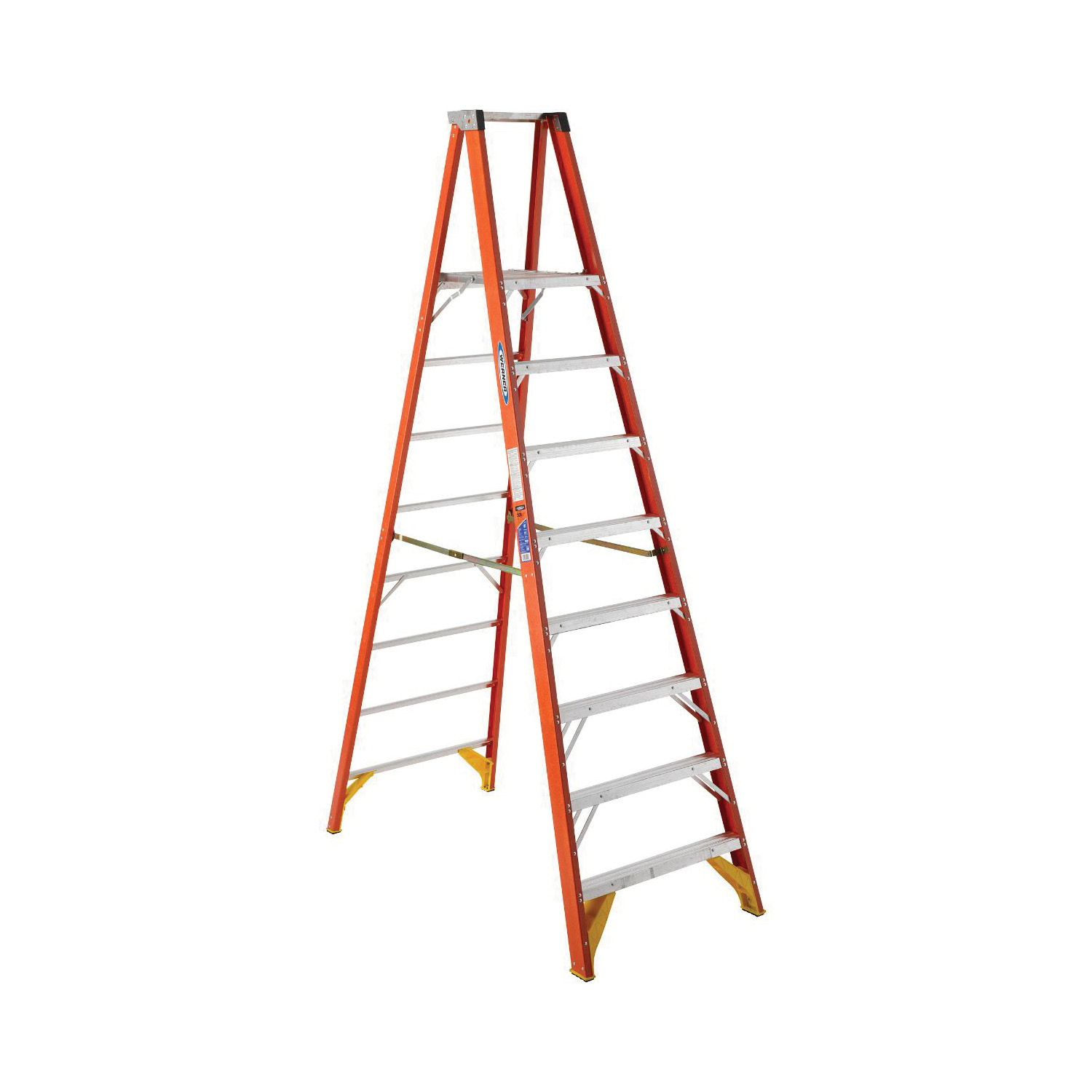

WERNE 8' 300# 1-A PLATFORM F/G LADDER WER P-6208
The P6208 fiberglass 8 ft platform ladder has a duty rating of 300 pounds and features a safety guard rail to encourage proper use. Back up plates reinforce all top connectors and the large platform provides a secure and comfortable work area. The slip resistant TRACTION-TRED® steps are double riveted and knee braced. A full set of rear horizontals are spaced one foot apart. The EDGE® molded brace and foot pad combination provides bracing strength and increased protection from damage. Fiberglass rails are non-conductive for working near electricity.
-
BrandWERNER®
-
UPC051751044928
-
Manufacturer Part NumberP6208
-
CountryUSA
-
Load Capacity300 lb
-
Platform Depth14-5/8 in
-
Platform Width14-5/8 in
-
MaterialAluminum Spreader/Fiberglass
-
TypeType IA
-
SeriesP6200
-
Base Spread66-5/8 in
-
Ladder Height8 ft
-
Step Depth3 in
-
Bottom Width33-7/8 in
- Safety guard rail encourages proper ladder use
- Back up plates reinforce all top connectors
- Large platform provides secure and comfortable work area

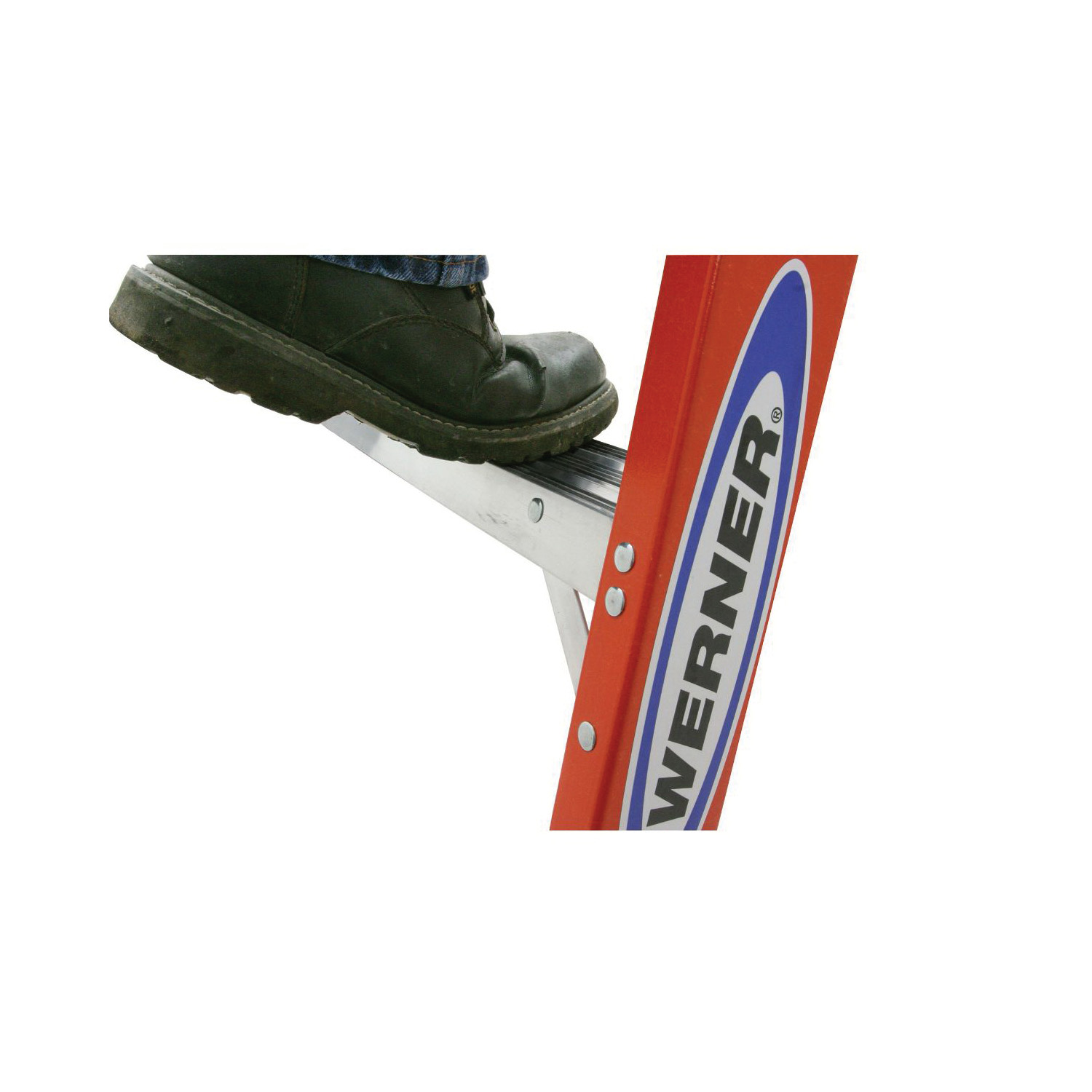

- Slip resistant TRACTION-TRED® steps are double riveted
- Full set of rear horizontals spaced one foot apart
- EDGE® molded brace and foot pad combination provides enhanced bracing strength and increased protection against damage
- Slip resistant foot pads attached to the EDGE® structure
- Energy diffusing geometry
- Every rivet backed up by metal, metal plates or washers to protect rails
- Internal aluminum spreaders
- 8 ft H to platform
- 14 ft H reach
- 7 ft 8 in H maximum standing
- Features can hook
- 10 ft L closed
- 3-1/8 in front and 1-7/8 in rear rail
- 1-3/16 in front and rear flanges
-
UNSPSC30191506
-
Standards/ApprovalsANSI A14.5 (2007)|OSHA Compliant
