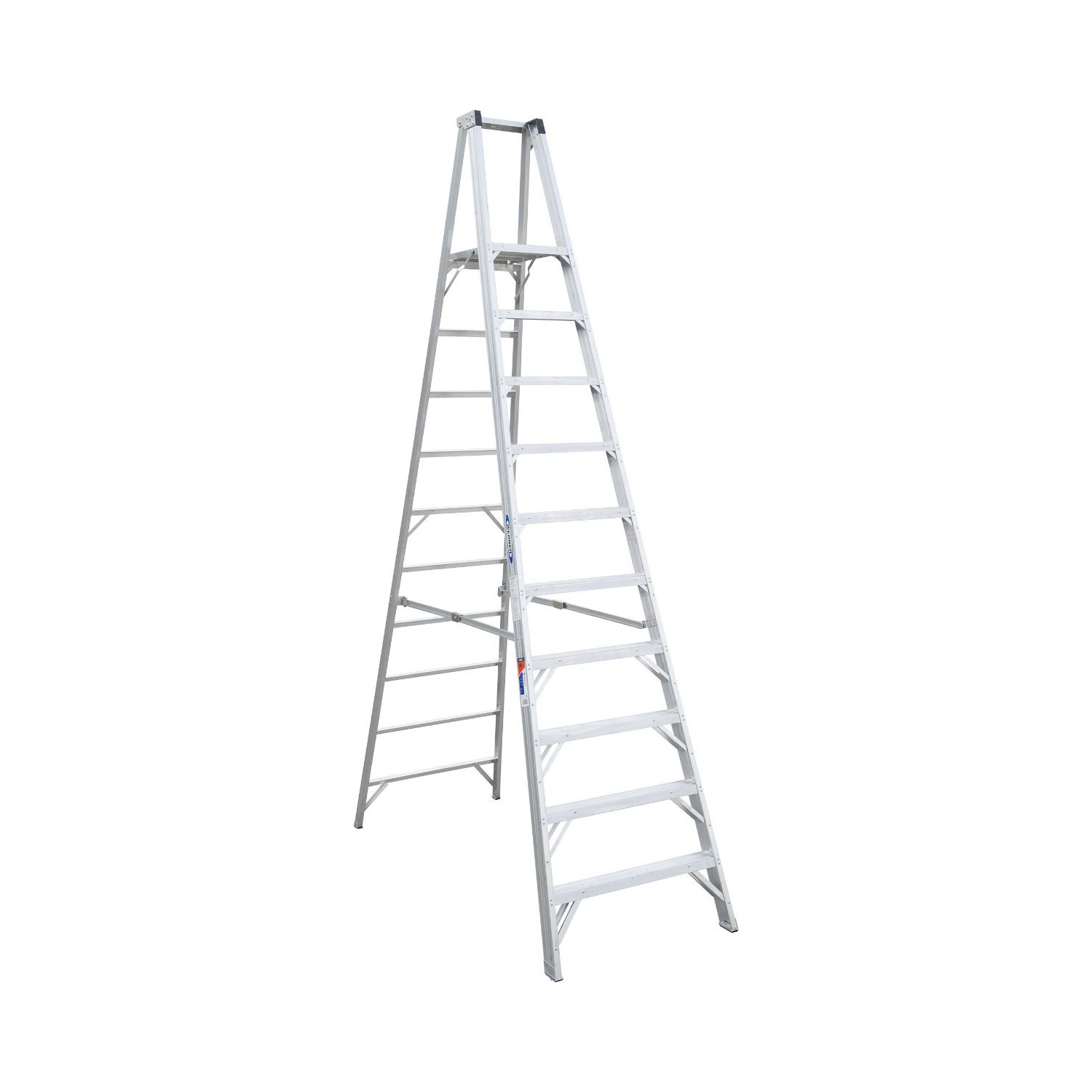

WERNER 10' 300# 1-A PLATFORM ALUM/LADDERS WER P410
The P410 aluminum 10 ft platform ladder has a duty rating of 300 pounds and features a safety guard rail to encourage proper use. The large platform provides a secure and comfortable work area and the slip resistant TRACTION-TRED® steps are double riveted and knee braced. A full set of rear horizontals are spaced one foot apart. The 4 ft, 6 ft and 8 ft models have a duty rating of 375 pounds. These ladders are light weight and easy to transport.
-
BrandWERNER®
-
UPC051751011005
-
Manufacturer Part NumberP410
-
CountryUSA
-
Load Capacity300 lb
-
Platform Depth1 ft 3 in
-
Platform Height10 ft
-
Platform Width12-5/8 in
-
MaterialAluminum
-
TypeType IAA
-
SeriesP400
-
Base Spread79-3/8 in
-
Number of Steps10
-
Ladder Height10 ft
-
Step Depth3 in
-
Bottom Width35-1/4 in
- Large platform provides secure and comfortable work area
- Shoulder bolt and lock nut on top hinge
- 4 solid aluminum rivets attach top to each rail
- Slip resistant TRACTION-TRED® steps are double riveted and knee braced
- Full set of rear horizontals are spaced one per foot
- Heavy duty aluminum foot bracket with slip resistant foot pad
- Heavy duty internal spreaders
- Internal spreaders on 8 ft and above
- 10 ft H to platform
- 16 ft H reach
- 9 ft 7 in H maximum standing
- 12 ft L closed
- 3-1/8 in front and 1-3/4 in rear rail
- 1-1/8 in front and 1 in rear flange
-
UNSPSC30191506
-
Standards/ApprovalsANSI A14.2 (2007)|OSHA Compliant
