WERNER 10' 300# 1-A PLATFORM F/G TWIN WER P-T-7410-4-C

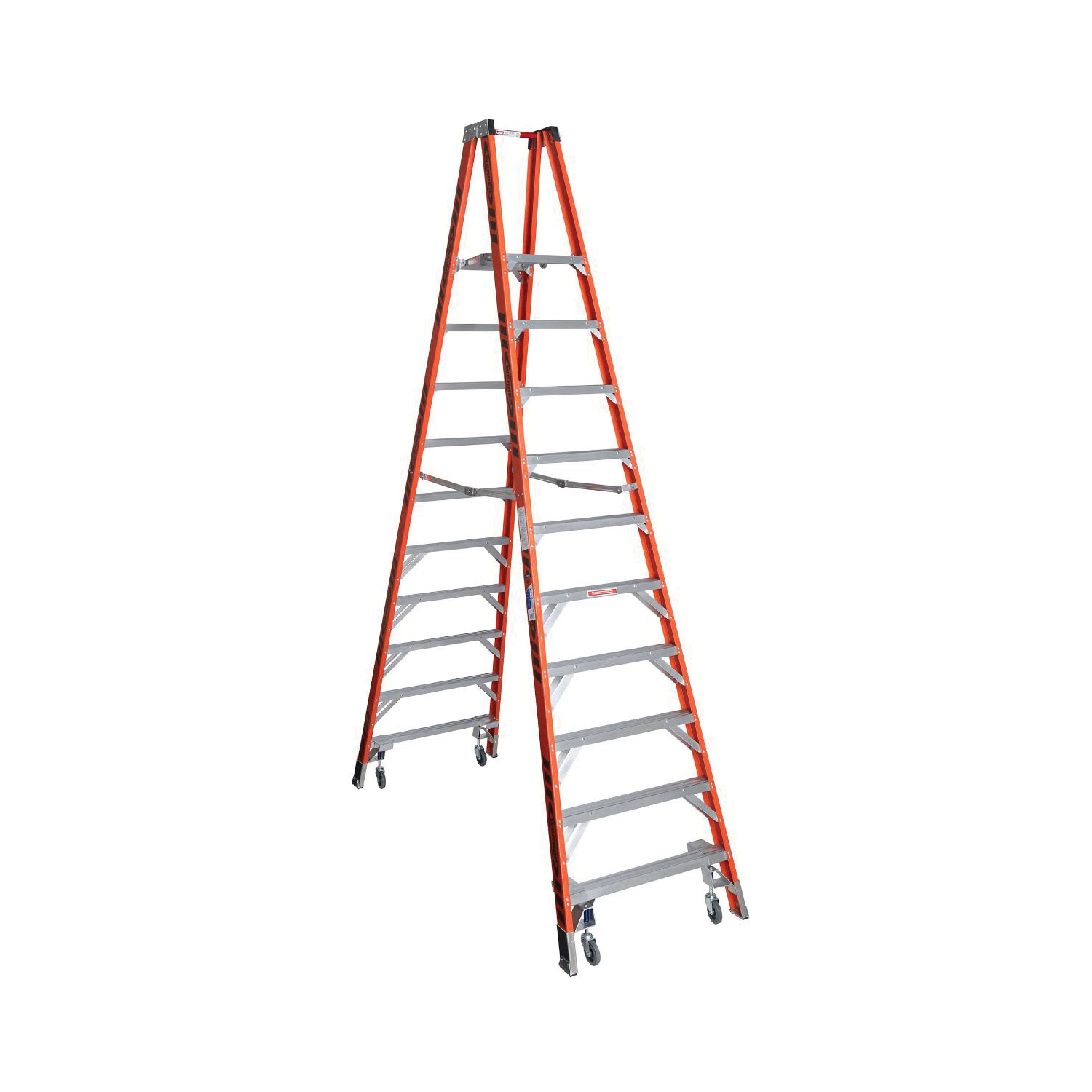

The PT7401-4C fiberglass 10 ft STOCKR'S LADDER® has 4 casters to allow easy 360 deg mobility. Each caster is spring mounted eliminating the need for a separate rake. Slip resistant TRACTION-TRED® steps on front and rear sections allow for one or two person jobs. Each side has a duty rating of 250 pounds. The PINCH-PROOF™ platform easily opens and closes and provides a secure, comfortable work area. Fiberglass rails are non-conductive for working near electricity.
-
BrandWERNER®
-
UPC051751032789
-
Manufacturer Part NumberPT7410-4C
-
CountryUSA
-
Load Capacity300 lb
-
Platform Depth12-3/4 in
-
Platform Width12-3/4 in
-
MaterialFiberglass
-
TypeType IA
-
SeriesPT7400-4C
-
Base Spread92-1/4 in
-
Ladder Height10 ft
-
Step Depth3 in
-
Bottom Width35-3/4 in
- Large platform provides secure and comfortable work area
- PINCH-PROOF™ platform is designed for easy opening and folding
- Glas*Mark® violator stripes on rails allow ladder to be more visible
- Slip resistant TRACTION-TRED® steps on front and rear sections
- Spring mounted caster eliminates need for a separate brake
- Durable caster assembly with stainless steel spring, steel stem and ball bearing swivel; heavy duty step brace
- Four casters allow easy 360 deg mobility
- Soft rubber wheels are easy on vinyl floors and designed to roll over thresholds
- Aluminum external rail shield helps protect against abrasion damage
- Safety guard rail
- 10 ft H to platform
- 16 ft H reach
- 9 ft 7 in H maximum standing
- 12 ft L closed
- 3-1/8 in front and rear rail
- 1-3/16 in front and rear flanges
-
UNSPSC30191506
-
Standards/ApprovalsANSI A14.5 (2007)|OSHA Compliant
