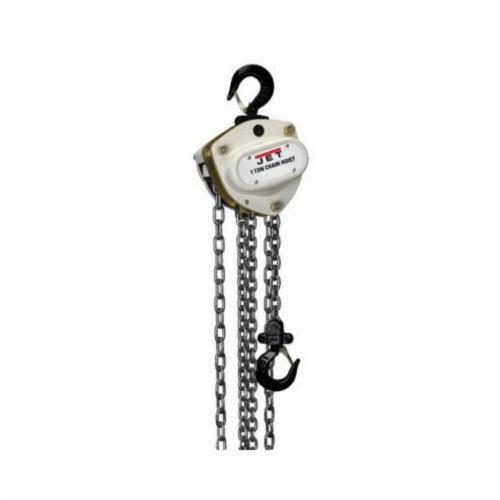

Jet Tools 1-TON L-90 15'-LIFT CHAIN HOISTS JET 101310
JET® L-100 Series Hand Chain Hoist is designed with steel construction and integrates safety, durability and innovation enabling it to operate in the most demanding industrial environments. Safety features such as the slip clutch style overload protection that prevents the hoist from lifting damaging loads beyond its rated capacity. The JET® exclusive innovation showcased in the patented fused brake system reduces maintenance costs and limits downtime. JET® is so confident in the durability of the fused brake design we back it with an industry leading lifetime replacement warranty. The JET® L-100 is available in ¼ ton to 20 ton capacities and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). Regardless of how harsh the environment, the JET® L-100 Series Hand Chain Hoist is engineered to perform.
-
BrandJET®
-
UPC731325171006
-
Manufacturer Part NumberJT9-203115
-
CountryUSA
-
Load Capacity1 ton
-
Pull to Lift Rated Load64 lbf
-
SeriesL-100
-
Brake TypeDual Pawl Weston
-
Lifting Height15 ft
- Durability, Weston style dual pawl brake system double pawl design increases safety
- Slip clutch design increases safety and overload protection by preventing lifting or pulling damaging loads
- Industrial rated hooks rotate 360 degrees for easy rigging, hooks slowly stretch to indicate an overload situation increasing jobsite safety
- Corrosive resistant grade 100 load chain is stronger than grade 80 load chain extending the life of the hoist
- Load plates are heat treated, case hardened and corrosive resistant coated internal parts extend the life of the hoist in the harshest of environments
- Sealed ball bearing design increases efficiency and promotes smooth operation
- Patented fused brake design proven durability that increases safety with a lifetime replacement warranty
- Cast steel safety latches offer increased durability with heavy duty safety latches secured with Allen screws and lock nuts
- 43 ft hand chain overhaul to lift load 1ft
- 1 number of fall
- 11-5/8 in headroom
- 6.3 x 19 mm load chain
| Competitor Name | Cross-Reference Number |
|---|---|
| Fastenal | 0552377 |
-
Alternative Part Number203115
-
UNSPSC24101600
-
Standards/ApprovalsANSI/ASME B30.16 and HST-2 Standards|OSHA Regulations
