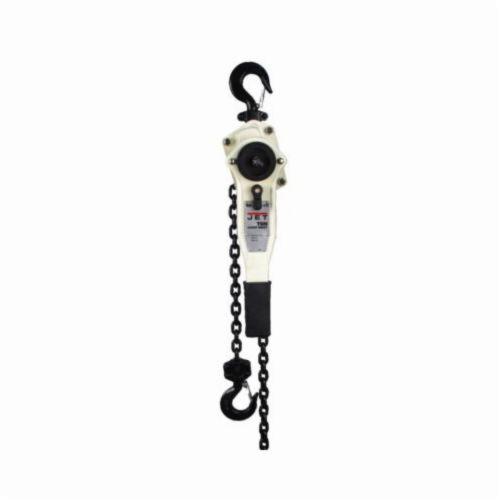

3-TON 20'-LIFT JLP-300-20 PULLERS JET187718
JET® JLP-A Series Lever Hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A Lever Hoist is available in ¼ ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET® JLP-A Series is the perfect choice for a contractor grade Lever Hoist.
-
BrandJET®
-
UPC731325473292
-
Manufacturer Part NumberJT9-287803
-
CountryUSA
-
Load Capacity3 ton
-
Chain MaterialGrade 80 Alloy
-
Pull to Lift Rated Load71 lb
-
Minimum Between Hooks18.89 in
-
TypeContractor Grade
-
SeriesJLP-A
-
Hook Opening2.46 in
-
Brake TypeDual Pawl Weston
-
Lever Length16-1/7 in
-
Lifting Height20 ft
- Weston style dual pawl brake system double pawl design increases safety
- Alloy steel hooks industrial rated hooks rotate 360 degrees for easy rigging, hooks slowly stretch to indicate an overload situation increasing jobsite safety
- Safety, reliability and durability
- Needle bearing design promotes long hoist life with low wear reducing downtime
- Grade 80 load chain grade 80 black oxide coated load chain for durability
- All steel construction with impact resistant covers that provide durability and protection
- Compact design- smaller body and lightweight design for low headroom applications and use in confined areas
- 1 falls
- 2/3 in lift per turn
- 18-8/9 in headroom
- JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading
- Overload protection prevents the lever hoist from lifting or pulling damaging loads above its rated capacity
- 7.88 in overall width
- Certification load tested to 125% of capacity with certificate
- 10 x 30 mm load chain
- Shipyard hooks- blunt tip, point loading hooks virtually eliminate stretched hooks, reducing downtime for maintenance and repair
- No overload protection
-
Alternative Part Number287803
-
UNSPSC31162604
-
Standards/ApprovalsANSI/ASME B30.21 and HST-3 Standards|OSHA regulations
-
Owners/User Manual
