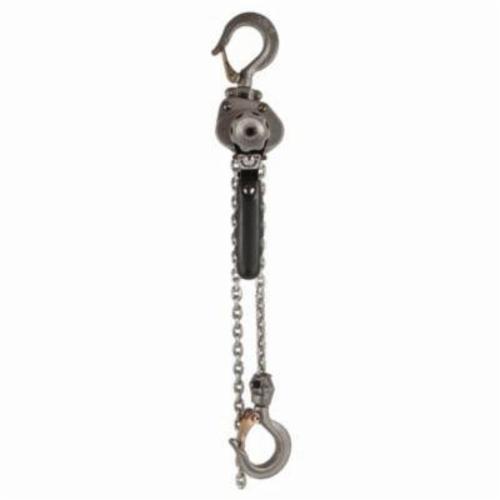

1/2-TON 15'-LIFT LEVER HOISTS JET181515
The Jet® JLH compact lever hoist integrates safety, durability and innovation enabling it to operate in the most demanding industrial environments. The lightweight design is achieved with a durable aluminum alloy housing that reduces weight for ease of transport. The dual pawl weston style brake system splits the load to opposite sides of the ratchet gear for greater load security. Mechanical advantage is gained by the Jet® exclusive addition of the five gear drive train requiring less force to lift or secure a load. Included is a nylon carrying case for convenient transportation, reducing trips to the tool room and prevents any unnecessary damage to the hoist.
-
BrandJET®
-
UPC731325175554
-
Manufacturer Part NumberJT9-181515
-
CountryUSA
-
Load Capacity0.5 ton
-
Pull to Lift Rated Load54 lb
-
Reeving1
-
Minimum Between Hooks9-7/10 in
-
TypeCompact
-
SeriesJLH
-
Dimensions3.96 in W
-
Brake TypeDual Pawl Weston
-
Lever Length6.3 in
-
Lifting Height15 ft
- Weston style dual pawl brake system- dual pawl design increases safety by splitting the load to opposite sides of the ratchet gear for greater load security
- Alloy steel hooks- industrial rated hooks rotate 360 deg for easy rigging
- Hooks slowly stretch to indicate an overload situation increasing jobsite safety
- Carrying case- included is a nylon carrying case for convenient transportation, reducing trips to the tool room and prevents any unnecessary damage to the hoist
- Work to weight ratio at 3.5 pounds, the 1/4 ton JLH compact lever hoist can pull or hold a load more than 140 times its weight
- Compact power- A 1/4 ton of pulling power that fits in the palm of your hand
- Geared drive train- JET's exclusive five gear drive train requires less force to lift or secure a load
- Aluminum housing- durable, impact resistant, aluminum alloy housings makes the JLH compact lever hoist one of the lightest hoists on the market
- Grade 100 load chain- corrosive resistant grade 100 load chain is stronger than grade 80 load chain extending the life of the hoist
- Cast steel safety latches increased durability with heavy duty safety latches secured with allen screws and lock nuts
- Heat treated load plates- heat treated for durability, these extend the life of the hoist in the harshest of environments
- Compact design smaller body and lightweight design for low headroom applications and use in confined areas
- Certification- load tested to 125% of capacity with certificate
-
Alternative Part Number181515
-
UNSPSC24101602
-
Standards/ApprovalsANSI/ASME B30.21|HST-3|OSHA Compliant
-
Specification Sheet
