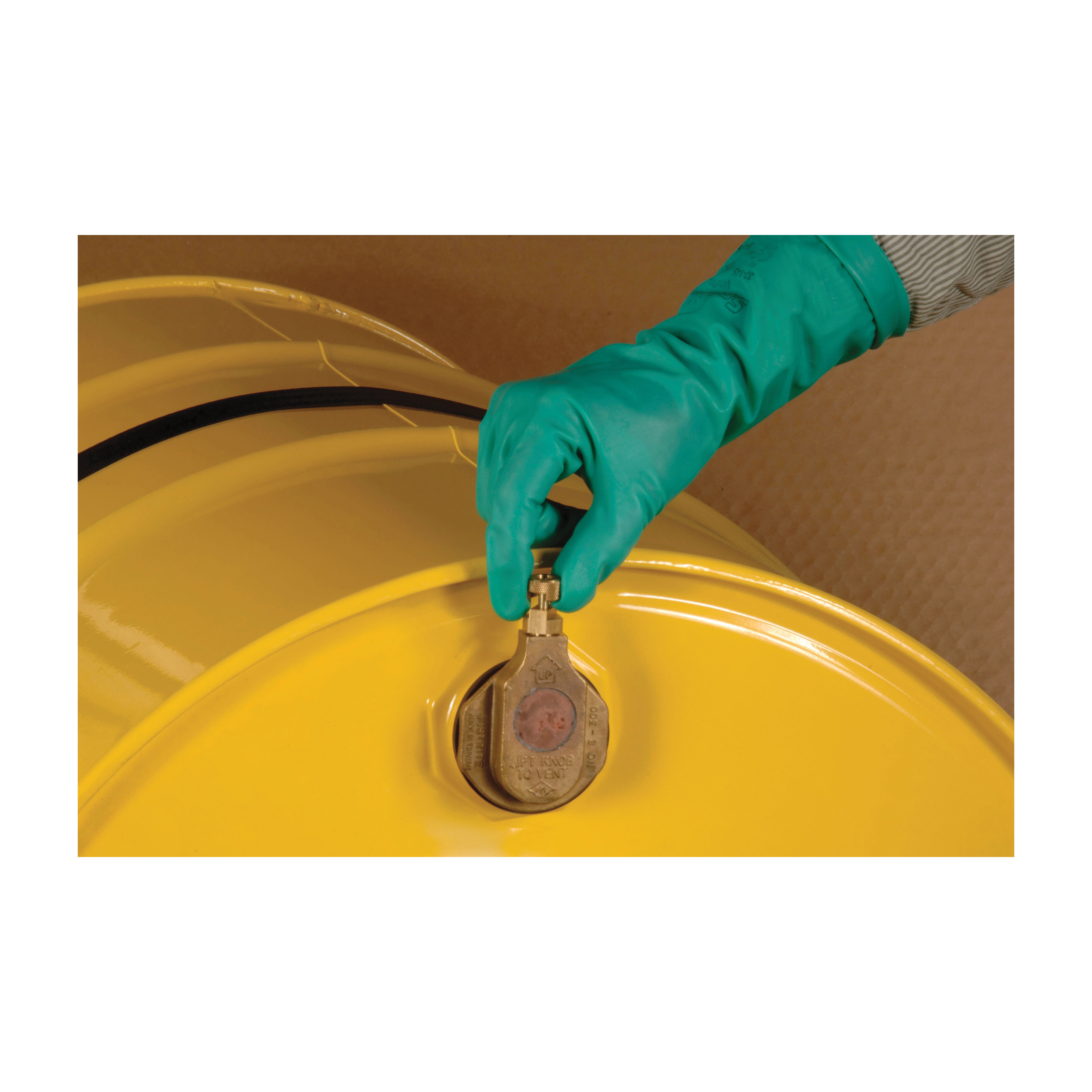

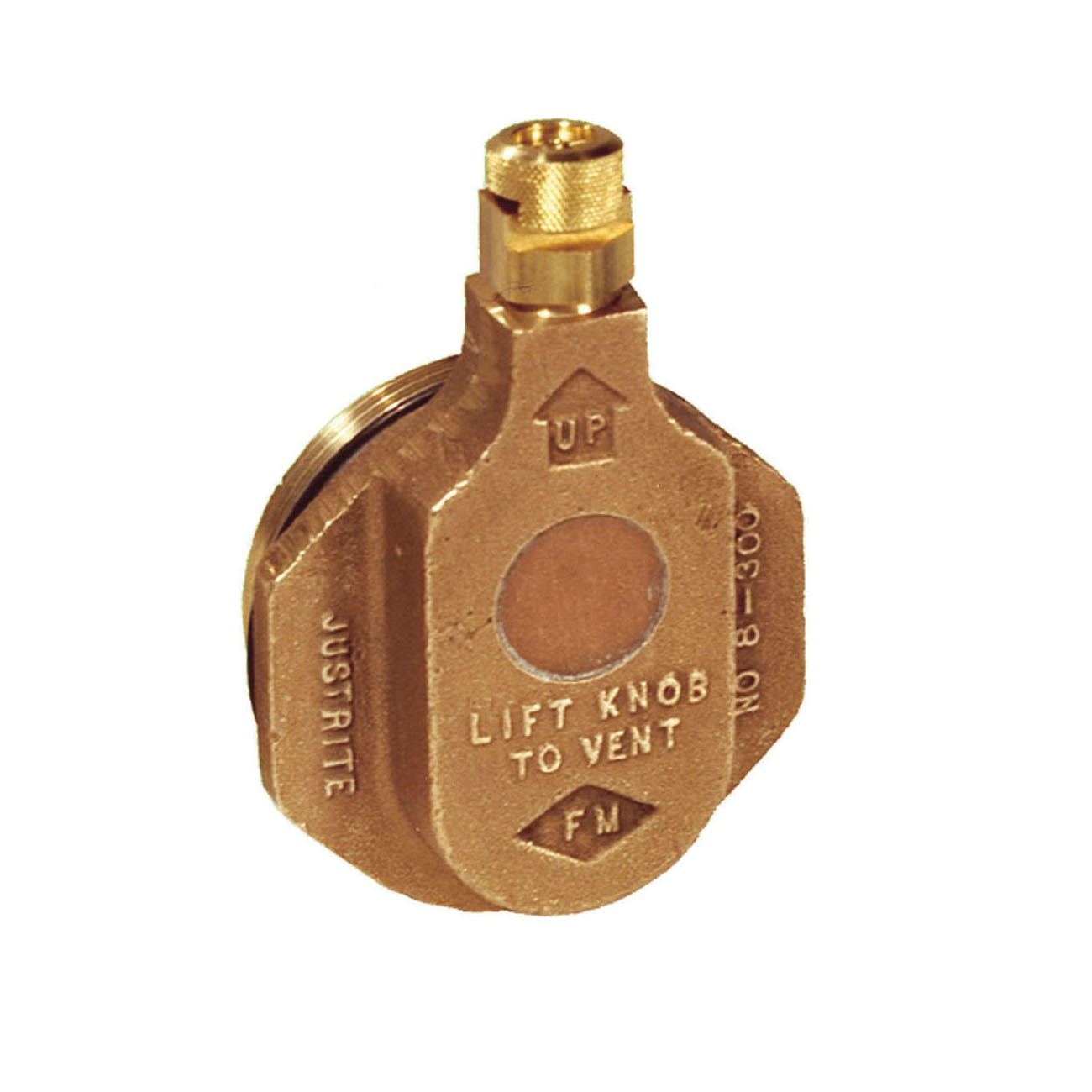

Justrite® 08300 Horizontal Drum Vent, 2 in NPT/NPS Bung, For Use With 205 L Petroleum Based Solvent Drums, Brass, Brass
Automatic pressure relief ensures safe workplace. No more worrying about pressure building up in your drums. These safety drum vents automatically relieve pressure between 3 and 8 psi (30 to 55 kPa). Vents are tested to allow 61 cubic inch (1-L) of water through a 3/8-in (9.5-mm) pipe nipple in less than 6 seconds. Keep the vent in closed position to prevent flammable vapor from escaping. A built-in flame arrester helps absorb and dissipate heat for added safety. Vacuum relief is automatic on vertically installed vents and manual on horizontally installed vents. Drum vents are FM Approved. For protection and avoidance of high-pressure drum failure while dispelling heat using its flame arrestor.
-
BrandJustrite®
-
UPC697841001442
-
Manufacturer Part Number08300
-
CountryUSA|Canada
-
MaterialBrass
-
ColorBrass
-
Specifications2 in NPT/NPS Bung
-
Suitable For Use With205 L Petroleum Based Solvent Drums
- Vents automatically relieve pressure between 3 and 8 psi (30 to 55 kPa) and include a flame arrester
- Vacuum relief during sudden cooling or liquid drain-off
- Valve within the vent is tested to allow 61 cubic inches of water through a 3/8 pipe nipple in less than 6 seconds for vacuum relief during drum dispensing operations
- Vacuum relief is automatic on vertically-installed vents and manual on horizontally-installed vents
-
UNSPSC24112100
-
Package DescriptionEACH
-
Standards/ApprovalsFM Approved
-
Specification Sheet
