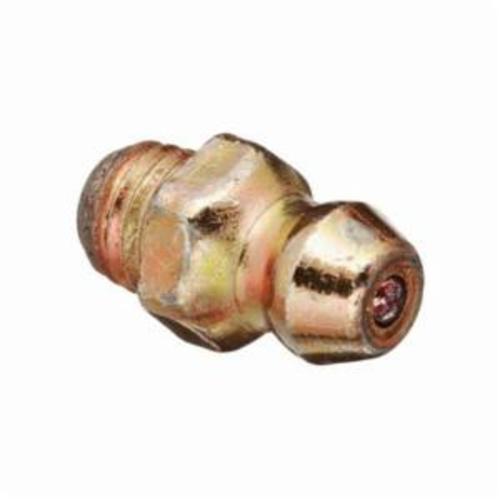

Alemite® 3038-B Straight Thread Forming Grease Fitting, 1/4-28 Special Taper Male Thread, 37/64 in OAL, 0.19 in L Shank, Steel, Trivalent Zinc Plated
Alemite® 3038-B Straight Thread Forming Grease Fitting, 1/4-28 Special Taper Male Thread, 37/64 in OAL, 0.19 in L Shank, Steel, Trivalent Zinc Plated
-
BrandAlemite®
-
UPC098468100875
-
Manufacturer Part Number3038-B
-
CountryUSA
-
FinishTrivalent Zinc Plated
-
MaterialSteel
-
Thread Size1/4-28 Special Taper Male
-
TypeStraight Thread Forming
-
Hex Size5/16 in
-
Shank Length0.19 in
-
Overall Length37/64 in
- Exceeds 72 hr salt spray test
- Dirt-excluding check ball
- Thread forming fittings have special tapered drive threads to reshape the material in an untapped hole to provide a leak proof seal
- Dyed yellow for identification
- Threads provide strong seal
- They are most effectively installed by spinning into the untapped hole, but may be driven straight into the untapped hole
- Thread forming fittings can be replaced by any standard threaded fitting or by another thread forming fitting
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 216DX3 |
-
UNSPSC40141736
-
Standards/ApprovalsRoHS Compliant
-
