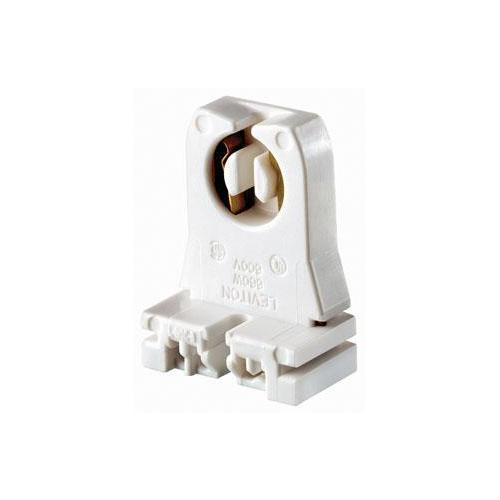

Leviton® 13351-D Standard Lampholder, 660 W Lamp, 600 V AC, G13 Lamp
Leviton® 13351-D Standard Lampholder, 660 W Lamp, 600 VAC, Medium Bi-Pin Fluorescent Lamp
-
BrandLeviton®
-
UPC078477957417
-
Manufacturer Part Number13351-D
-
CountryUSA
-
Terminal TypeQuick-Connect
-
MaterialThermoset
-
ColorWhite
-
TypeStandard
-
Mounting TypeSlide-On
-
Voltage Rating600 V AC
-
Dimensions1-1/4 in L
-
Lamp Base TypeG13
-
Lamp TypeFluorescent
-
Lamp Wattage660 W
-
Connection TypeQuick-Connect
- Copper alloy contacts
- Turn type contact
- 3/8 in wire strip length
- 18 to 20 ga THK panel
- 18 AWG wire size
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25ML53 |
-
Alternative Part Number7354454
-
UNSPSC39101605
-
IDEA Index ID7354454
-
Package DescriptionEACH
-
Standards/ApprovalsUL File No. E5833|CSA File No. LR5863|NOM 057
-
Warranty1 Year Limited
-
Specification Sheet
-
Instruction/Installation Manual
