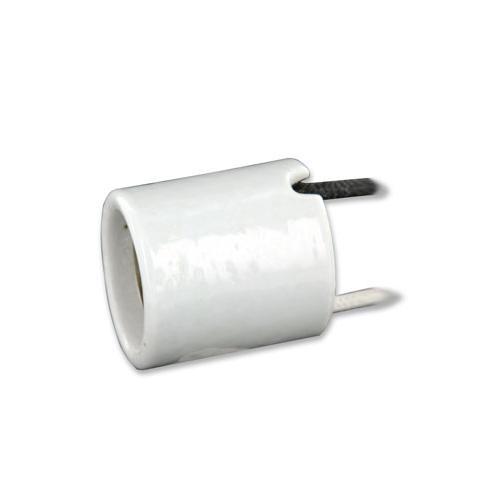

Leviton® 70045 1-Circuit 1-Piece Keyless Lampholder, 660 W Lamp, 600 V AC, E26 Lamp
Leviton® 70045 1-Circuit 1-Piece Keyless Lampholder, 660 W Lamp, 600 VAC, Medium HID/Incandescent Lamp
-
BrandLeviton®
-
UPC078477106105
-
Manufacturer Part Number70045
-
CountryUSA
-
FinishGlazed
-
Terminal TypeLead Wire
-
MaterialPorcelain
-
ColorWhite
-
Type1-Circuit 1-Piece Keyless
-
Connection TypeSide Wired
-
Mounting TypeBushing
-
Voltage Rating600 V AC
-
Dimensions1.48 in Dia x 1.69 in L
-
Lamp Base TypeE26
-
Lamp TypeHID/Incandescent
-
Lamp Wattage660 W
- 1-piece construction
- 4 kV pulse rated
- Single circuit lampholder
- Nickel plated copper alloy screw shell and contact
- Leaf spring center coil spring
- (2) 6-32 bushing
-
Alternative Part Number7342453
-
UNSPSC39111803
-
IDEA Index ID7342453
-
Package DescriptionEACH
-
Standards/ApprovalsUL File No. E3810|CSA File No. LR1863
-
Warranty1 Year Limited
-
Specification Sheet
