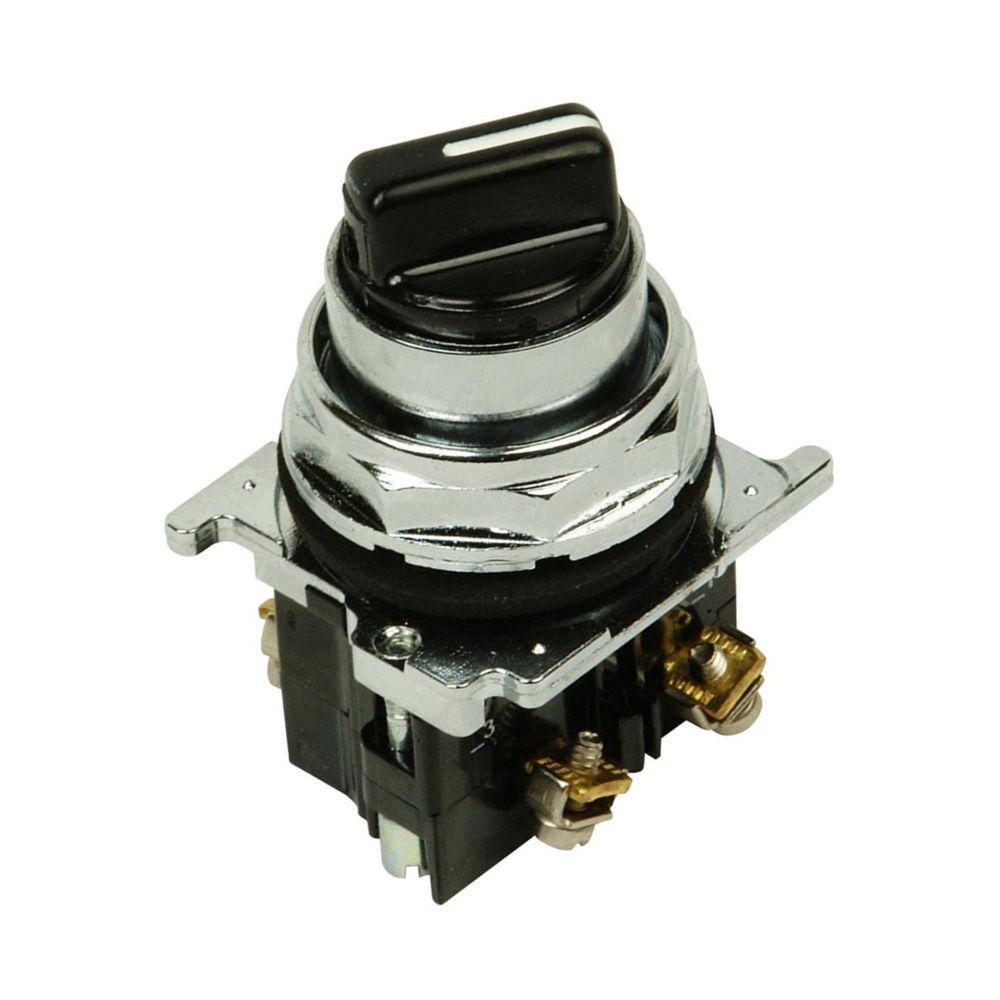

EATON 10250T20KB Assembled Heavy Duty Non-Illuminated Selector Switch, 30.5 mm, 1NO-1NC Contact
Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.
-
BrandEATON
-
UPC782113358291
-
Manufacturer Part Number10250T20KB
-
CountryUSA|Canada
-
MaterialDie Cast Zinc
-
TypeAssembled Heavy Duty
-
Contact Configuration1NO-1NC
-
Contact Rating10 A at 600 V AC 50/60 Hz/5 A at 250 V DC
-
ActuatorKnob
-
Series10250T
-
Number of Positions2
-
Size30.5 mm
-
Enclosure TypeNEMA 3/3R/4/4X/12/13/IP65
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 39P805 |
-
Alternative Part Number7316224
-
UNSPSC39122217
-
IDEA Index ID7316224
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed,CSA Certified,CE Marked
-
Specification Sheet
