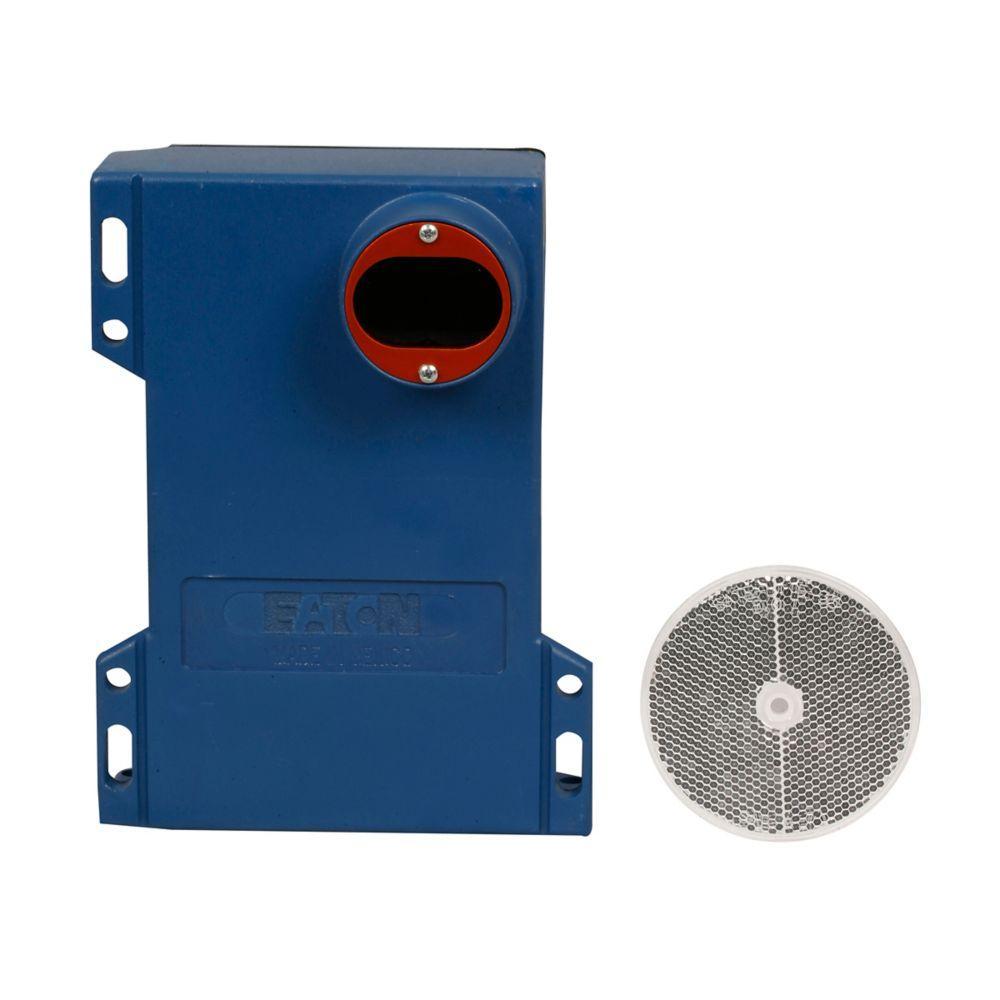

EATON 1321B-6501 Right Angle Self-Contained Photoelectric Sensor, Rectangle Shape, 15 in, Infrared Sensing Beam, 1 to 30 ms Response
These heavy duty 20 series sensors are designed for use in harsh environments with constant exposure to weather and physical abuse. Large optics provide exceptional sensing ranges including 700 feet (213m) for thru-beam, 75 feet (23m) for reflex and 8 feet (2.4m) for diffuse reflective. Optional logic modules provide integral control functions like time delays, one-shot outputs and stopped motion detection.
-
BrandEATON
-
UPC782113823584
-
Manufacturer Part Number1321B-6501
-
CountryUSA
-
Frequency Rating50/60 Hz
-
Response Time1 to 30 ms
-
TypeRight Angle Self-Contained
-
Connection TypeScrew
-
Voltage Rating95 to 130 V AC
-
Amperage Rating5 mA to 10 A
-
Sensing BeamInfrared
-
Sensing MethodDiffuse Reflective
-
Sensing Range15 in
-
Series20 Series
-
ShapeRectangle
-
Size3.79 in L x 7.65 in W x 5.7 in H
-
Operating Temperature-4 to 131 deg F
-
Output TypeSelectable Light/Dark Operate
-
Enclosure TypeNEMA 3/4/6/12/13
-
Light SourceLED
- Sets the industry standard for rugged construction and long range performance
- Interchangeable logic modules and output devices are contained inside the sealed housing
- These heavy duty sensors are designed for use in harsh environments with constant exposure to weather and physical abuse
- Die-cast aluminum enclosure
- Beam status LED indicator
-
Alternative Part Number7377876
-
UNSPSC39121528
-
IDEA Index ID7377876
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed,cULus Listed,Contact Manufacturer
-
Warranty3 years
-
Specification Sheet
